Description

Price

1

COVER, CRANKCASE L

(493-15411-00-00)

Unavailable

2

GASKET, CRANKCASE COVER

434-15451-10-00

$21.99

3

BOLT,SOCKET

91317-06050-00

$3.88

4

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

5

COVER, CRANKCASE 3

(493-15431-00-00)

Unavailable

6

GASKET, CRANKCASE COVER

434-15461-10-00

Unavailable

7

PIN, DOWEL

99530-12016-00

$4.89

8

COVER, OIL PUMP

(493-15416-00-00)

Unavailable

9

GASKET, O/PMP CVR 1

(493-15456-00-00)

Unavailable

10

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

11

BOLT, SOCKET

91317-06070-00

$4.99

12

CLAMP

(90465-10072-00)

Unavailable

13

PLUG, OIL

498-15363-00-00

Unavailable

14

O-RING (646)

93210-19123-00

Unavailable

15

BREATHER

583-15371-00-00

$6.99

16

HOSE (L1050)

90445-072G8-00

Unavailable

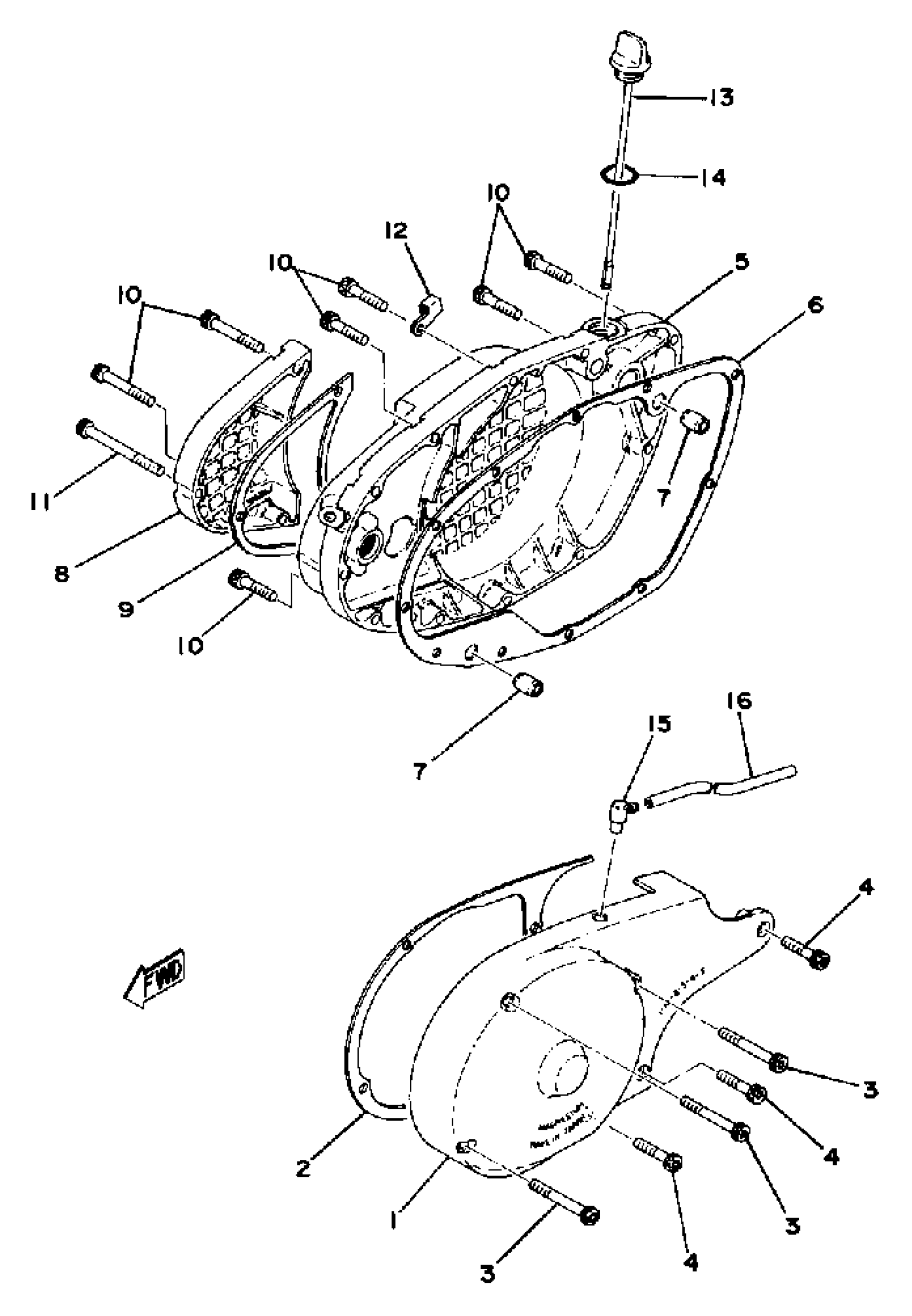

Yamaha TY250D (TY250) 1977 CRANKCASE COVER Diagram

COVER, CRANKCASE L

GASKET, CRANKCASE COVER

BOLT,SOCKET

BOLT, HEXAGON SOCKET HEAD(1VJ)

COVER, CRANKCASE 3

GASKET, CRANKCASE COVER

PIN, DOWEL

COVER, OIL PUMP

GASKET, O/PMP CVR 1

BOLT, HEXAGON SOCKET HEAD(1VJ)

BOLT, SOCKET

CLAMP

PLUG, OIL

O-RING (646)

BREATHER

HOSE (L1050)
