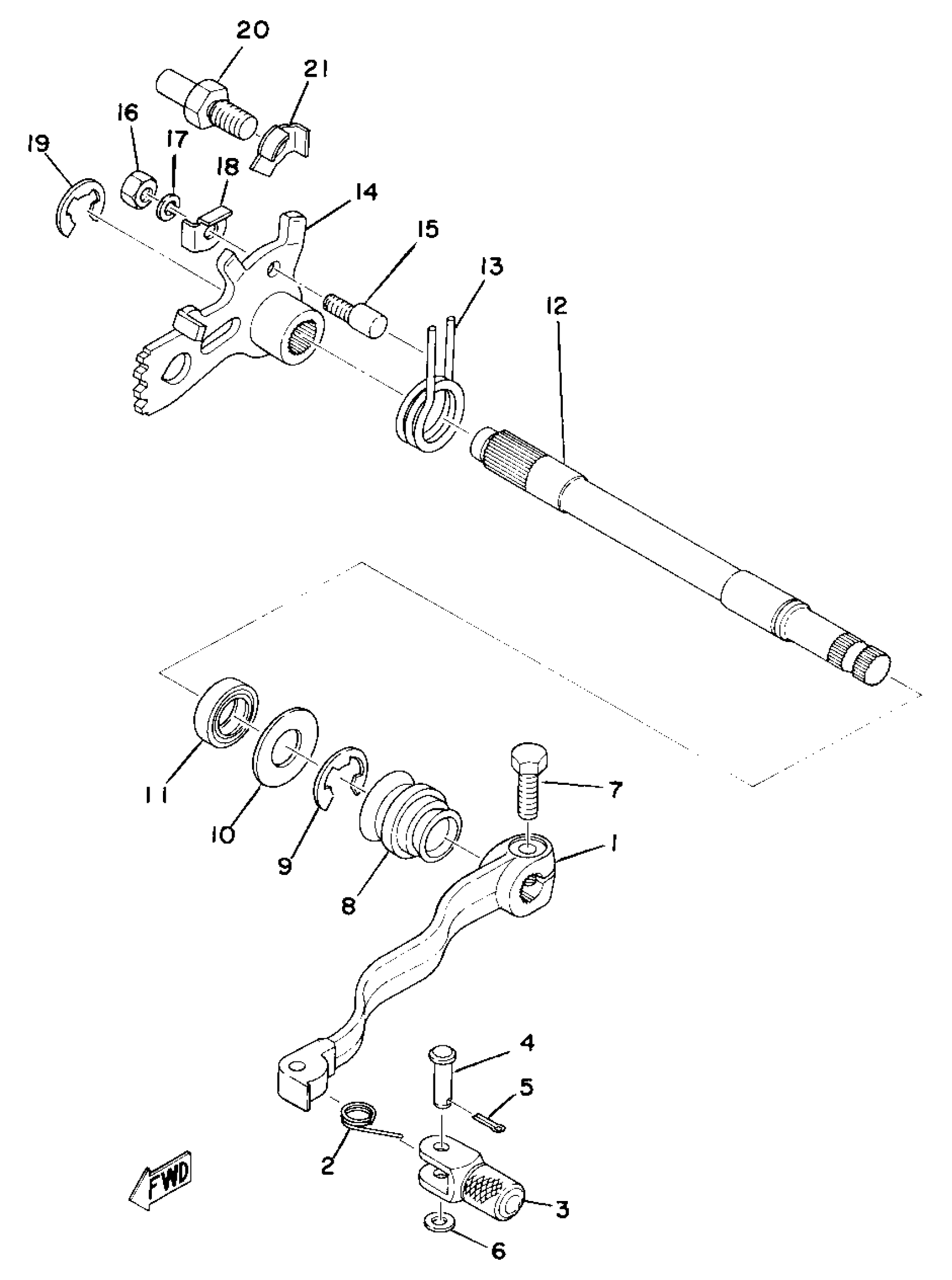

Yamaha TY250C (TY250) 1976 SHIFTER 2 Diagram

#

Description
Price

1

SHIFT PEDAL ASSEMBLY

493-18110-02-00

Unavailable

2

SPRING, TORSION

(90508-14262-00)

Unavailable

3

ARM, SHIFT

(493-18112-02-00)

Unavailable

4

PIN, CLEVIS

90240-06043-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

WASHER, PLATE (371)

90201-06431-00

$5.60

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

BOOT

214-18131-00-00

Unavailable

9

. CIRCLIP

99001-12600-00

Unavailable

10

WASHER PLATE 248181370000

90201-14220-00

$8.49

11

OIL SEAL (14X24X6-256)

93109-14010-00

$13.49

12

SHAFT, CHANGE

363-18125-00-00

Unavailable

13

SPRING TORSION 214181240000

90508-32052-00

$7.49

14

LEVER, CHANGE 1

434-18121-00-00

Unavailable

15

SCREW 214181860000

90149-06017-00

$7.49

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, LOCK

90215-06016-00

Unavailable

19

CIRCLIP

99006-10600-00

Unavailable

20

STOPPER, SCREW

278-18127-01-00

Unavailable

21

WASHER

90215-08015-00

Unavailable
