REAR WHEEL

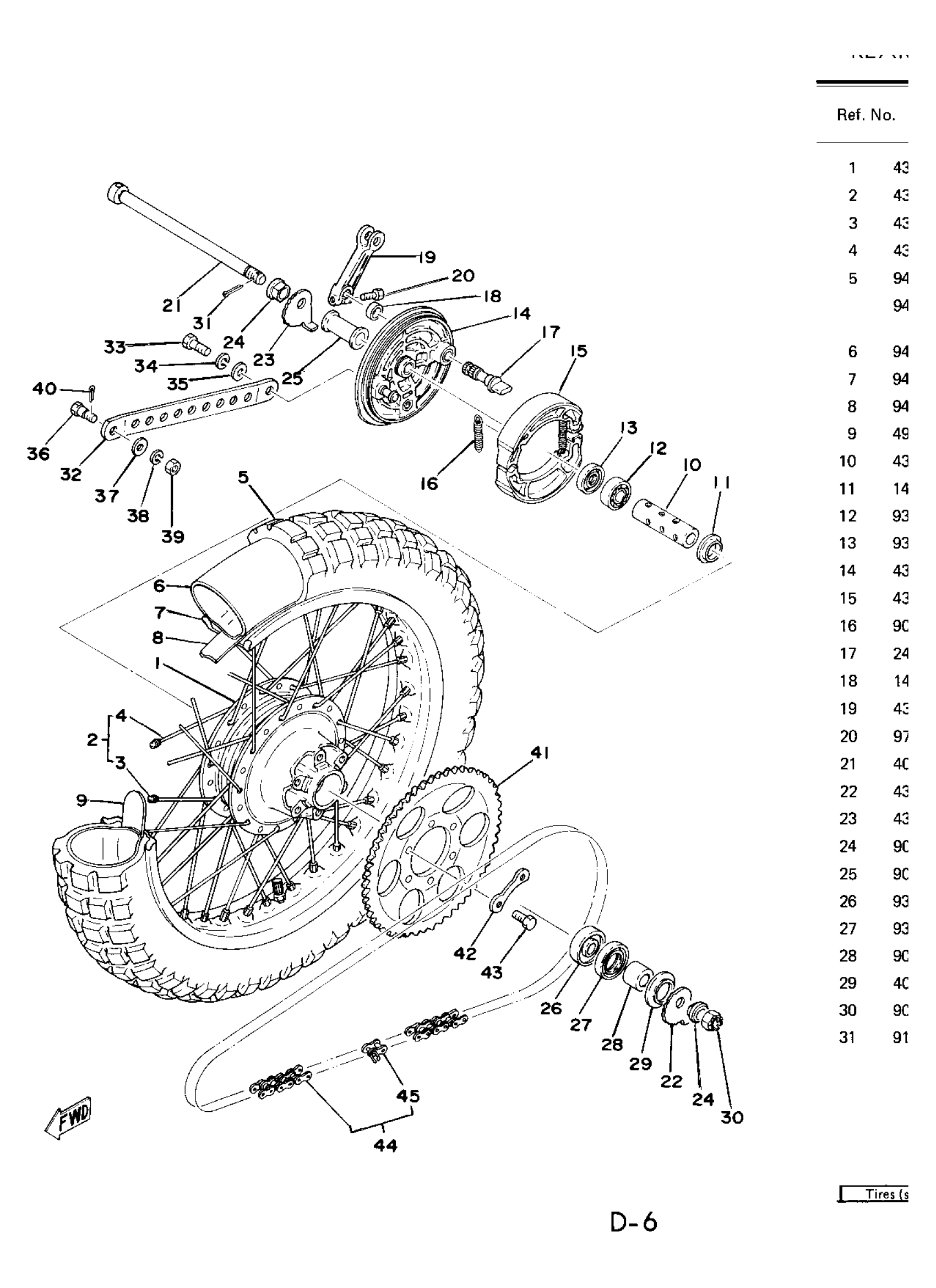

Yamaha TY250C (TY250) 1976 REAR WHEEL Diagram
#
1
HUB, REAR
(434-25311-01-00)
Unavailable
2
SPOKE SET, REAR
434-25304-00-00
Unavailable
3
SPOKE SET, INNER 2
(434-25396-90-00)
Unavailable
4
SPOKE SET, OUTER 2
(434-25397-90-00)
Unavailable
5
400X18 DUN TRI UNI
(94140-18317-00)
Unavailable
5
400X18 DUN T-UNIET
(94140-18326-00)
Unavailable
7
RIM 1.85X18
(94418-18166-00)
Unavailable
9
SPACER, BEAD
(493-25394-00-00)
Unavailable
10
SPACER
90560-15314-00
Unavailable
14
PLATE, BRAKE SHOE
(434-25321-01-00)
Unavailable
15
BRAKE SHOE SET-2PCS
437-W2536-00-00
Unavailable
16
SPRING (5T9)
90506-17328-00
Unavailable
17
CAMSHAFT
2RH-25351-00-00
Unavailable
18
SEAL, CAM SHAFT
148-25359-00-00
Unavailable
19
LEVER, CAMSHAFT
434-25355-01-00
Unavailable
20
BOLT, HEXAGON
97017-06025-00
Unavailable
21
AXLE, WHEEL (2R7-25381-00)
401-25381-00-00
Unavailable
22
PULLER, CHAIN 1
(434-25388-01-00)
Unavailable
23
PULLER, CHAIN 2
(434-25389-01-00)
Unavailable
24
COLLAR
(90387-15281-00)
Unavailable
25
NO LONGER AVAILABLE
90387-15237-00
Unavailable
26
BEARING
93306-30212-00
Unavailable
27
SEAL,OIL
93106-26005-00
Unavailable
28
COLLAR
90387-15115-00
Unavailable
29
COVER, DUST
401-25367-00-00
Unavailable
30
NUT, CASTLE(2UJ)
90171-14056-00
Unavailable
31
PIN, COTTER
91490-30030-00
Unavailable
32
BAR, TENSION
434-25371-01-00
Unavailable
33
BOLT
(90101-10254-00)
Unavailable
34
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
35
WASHER, PLATE
92990-10600-00
Unavailable
36
BOLT 1092537300
90109-08063-00
Unavailable
37
WASHER, PLAIN
92990-08200-00
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
NUT(6L2)
95333-08600-00
Unavailable
40
PIN, COTTER
91490-25020-00
Unavailable
41
SPROCKET, DRIVN 53T
434-25453-01-00
Unavailable
42
WASHER, LOCK
22W-25412-00-00
Unavailable
43
BOLT, FITTING
90109-08377-00
Unavailable
44
SET, CHAIN
94A40-07114-00
Unavailable
45
JOINT, CHAIN(3KX)
94681-64001-00
Unavailable
