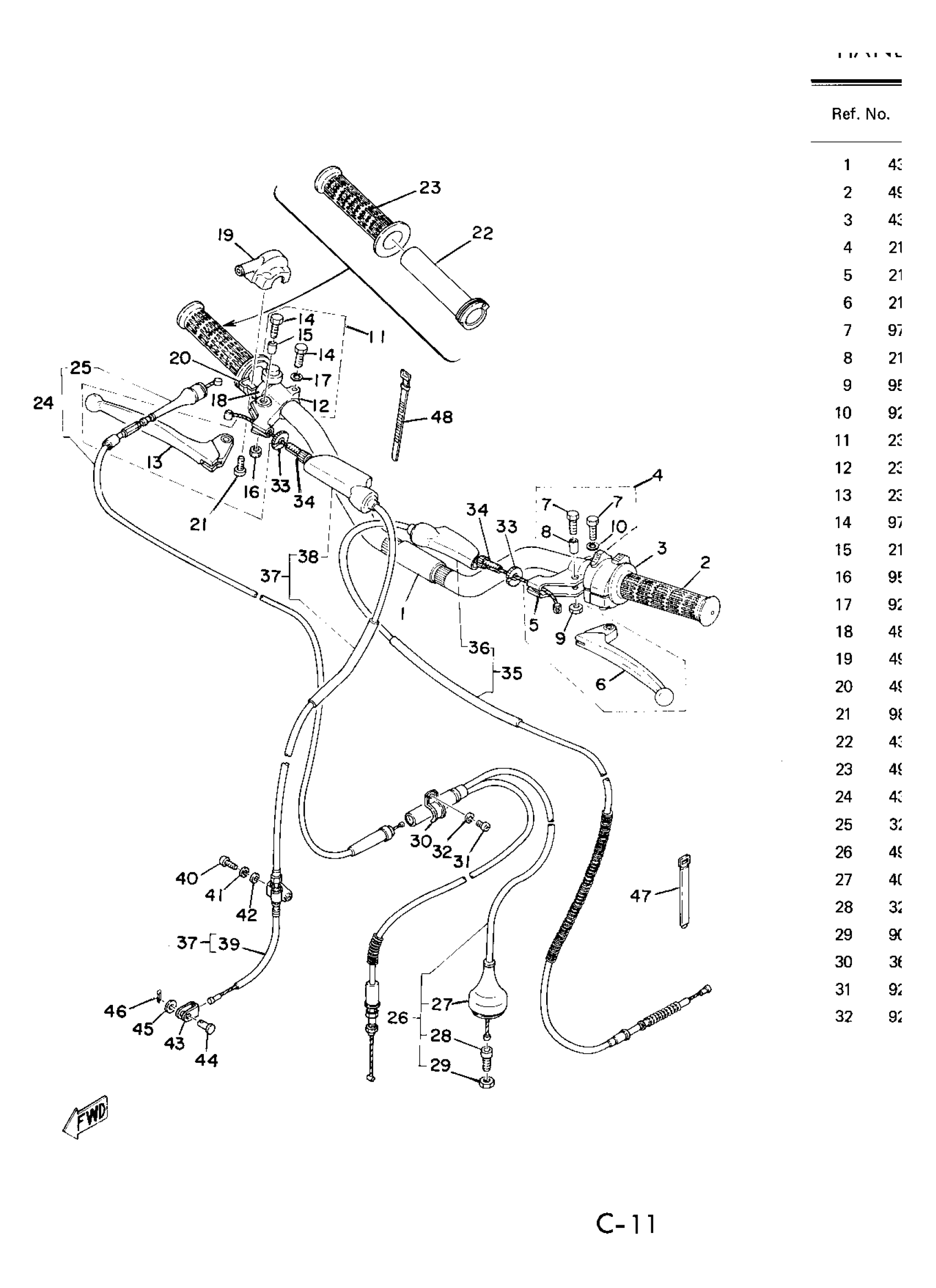

Yamaha TY250C (TY250) 1976 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLE

525-26111-01-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

SWITCH, HANDLE 2

434-83975-00-00

Unavailable

4

LEVER HOLDER ASSY 1

214-82910-07-00

Unavailable

5

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

6

LEVER(L.H)

214-83912-00-00

$23.99

7

BOLT, HEXAGON

97013-06022-00

$0.90

8

COLLAR, LEVER

214-83913-00-00

$7.99

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

LEVER HOLDER ASSEMBLY 2

233-82920-33-00

Unavailable

12

HOLDER, LEVER (R.H)

233-82921-31-00

$68.99

13

LEVER(R.H)

233-83922-30-00

$22.99

14

BOLT, HEXAGON

97013-06022-00

$0.90

15

COLLAR, LEVER

214-83913-00-00

$7.99

16

NUT, SELF-LOCKING

95617-06100-00

$8.49

17

WASHER, SPRING

92995-06100-00

Unavailable

18

SWITCH, HANDLE 1

(363-83976-01-00)

Unavailable

19

CAP, GRIP UPPER

493-26281-00-39

Unavailable

20

CAP GRIP LOWER

493-26282-00-39

Unavailable

21

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

22

TUBE, THROTTLE GUIDE

434-26243-12-00

Unavailable

23

GRIP RH

493-26242-00-00

Unavailable

24

CABLE, THROTTLE 1

434-26311-00-00

Unavailable

25

. BOOT, THROTTLE CBLE

322-26316-00-00

Unavailable

26

CABLE, THROTTLE 2

493-26312-02-00

Unavailable

27

. CAP, RUBBER

401-26329-00-00

Unavailable

28

JOINT, CABLE

(322-26347-00-00)

Unavailable

29

NUT, HEXAGON

(90170-06156-00)

Unavailable

30

HOLDER

363-26393-00-00

Unavailable

31

SCREW PAN HEAD

98580-06010-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

NUT

90179-08030-00

Unavailable

34

BOLT

90123-08002-00

Unavailable

35

CABLE, CLUTCH

434-26335-03-00

Unavailable

36

COVER, LEVER

498-26372-00-00

Unavailable

37

WIRE, BRAKE 1

434-26341-05-00

Unavailable

38

COVER, LEVER

498-26372-00-00

Unavailable

39

BOOT, CABLE

(434-26342-01-00)

Unavailable

40

SCREW, PAN

98507-06014-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

43

JOINT, WIRE

156-26347-00-00

Unavailable

44

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

45

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

46

PIN, COTTER

91490-20025-00

Unavailable

47

BAND, SWITCH CORD

437-83936-01-00

Unavailable

48

BAND, SWITCH CORD

437-83936-01-00

Unavailable
