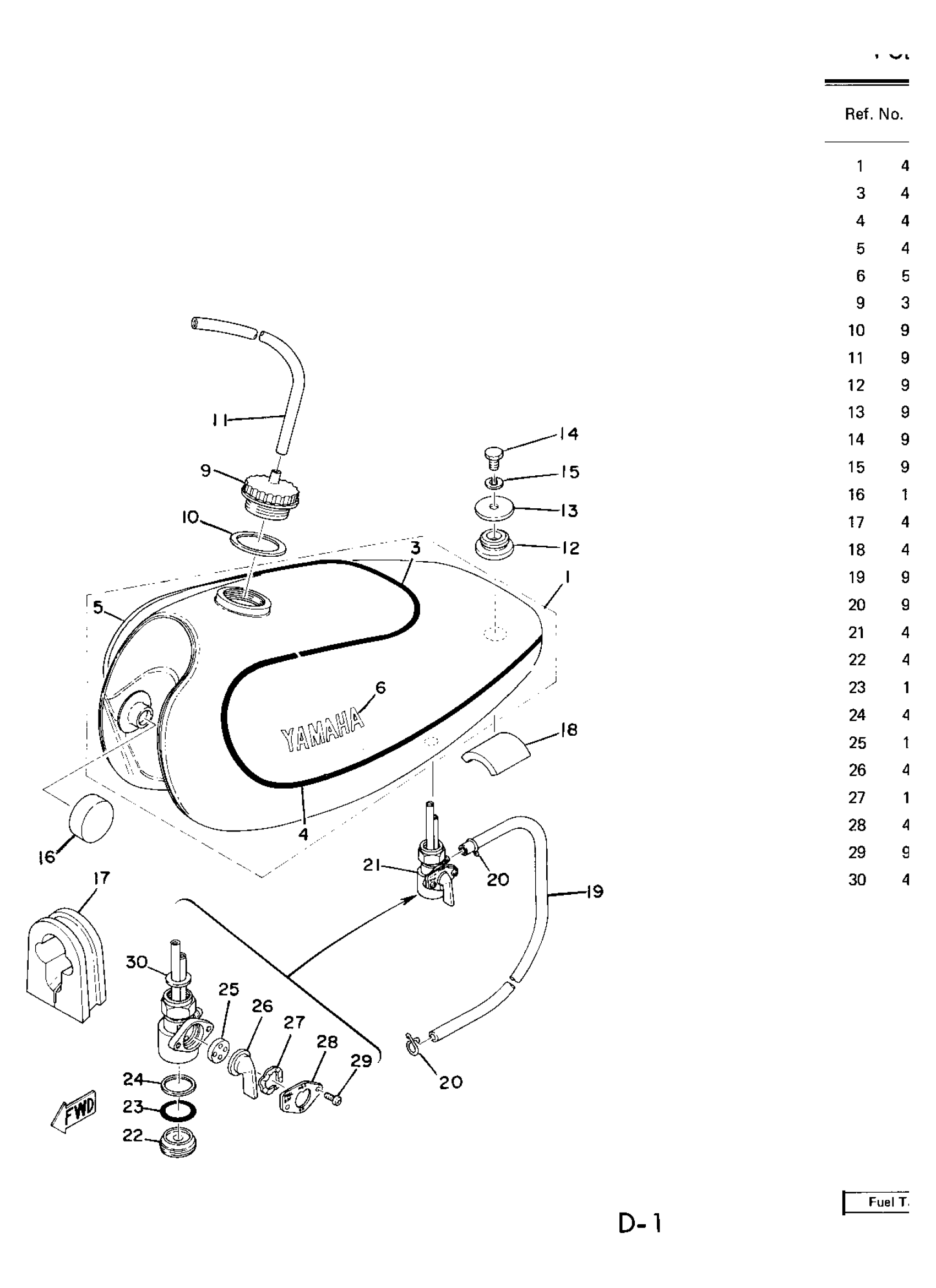

Yamaha TY250C (TY250) 1976 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(493-24110-00-03)

Unavailable

3

GRAPHIC, FUEL TNK 1

(493-24244-02-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(493-24246-01-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(493-24247-01-00)

Unavailable

6

EMBLEM, YAMAHA

99244-00120-00

$16.99

9

BODY, CAP

322-24611-02-00

$57.99

10

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

11

HOSE (L545)

90445-09361-00

Unavailable

12

DAMPER, FUEL TANK (434)

90480-22054-00

$9.49

13

WASHER

90209-08008-00

$7.49

14

BOLT(JA9)

90101-08691-00

$4.29

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

17

DAMPER, LOCATING 3

(434-24183-00-00)

Unavailable

18

DAMPER, LOCATING 4

(493-24184-00-00)

Unavailable

19

HOSE (L420)

90445-092K1-00

Unavailable

20

CLIP (8L2)

90467-08017-00

Unavailable

21

FUEL COCK ASSEMBLY 1

434-24500-03-00

Unavailable

22

CUP, FILTER

(434-24521-00-00)

Unavailable

23

GASKET, FILTER

498-24522-00-00

Unavailable

24

WASHER

(434-24576-00-00)

Unavailable

25

VALVE

137-24523-00-00

Unavailable

26

. LEVER, COCK

447-24524-00-00

Unavailable

27

WASHER, WAVE

132-24518-00-00

Unavailable

28

. PLATE, LEVER FITTING

447-24525-00-00

Unavailable

29

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

30

GASKET, FUEL COCK

434-24532-00-00

Unavailable
