FRONT WHEEL

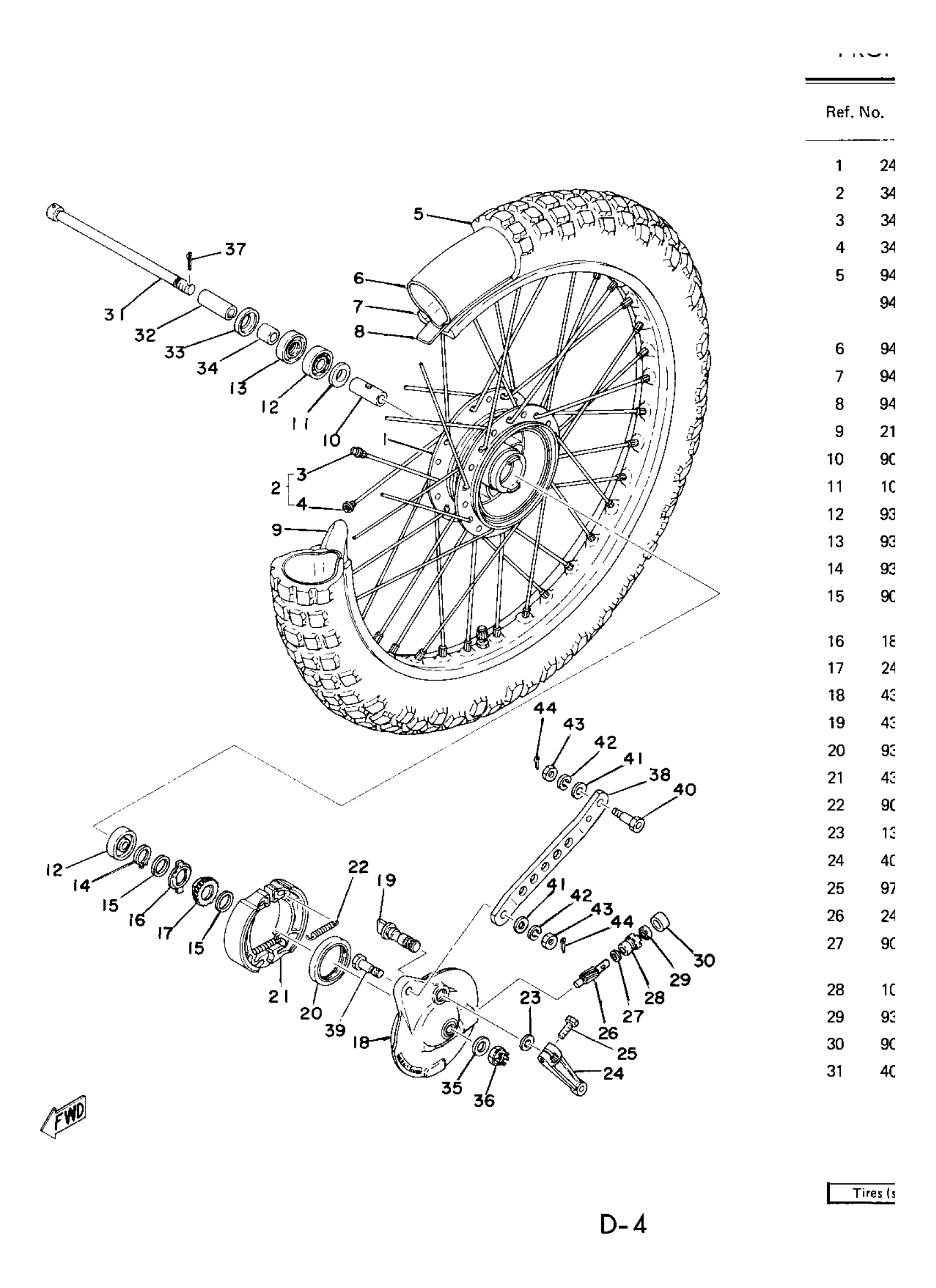

Yamaha TY250C (TY250) 1976 FRONT WHEEL Diagram
#
1
HUB, FRONT
(248-25111-00-38)
Unavailable
2
SPOKE SET, FRONT
345-25104-01-00
Unavailable
3
SPOKE SET, INNER 1
(345-25196-90-00)
Unavailable
4
SPOKE SET, OUTER 1
(345-25197-90-00)
Unavailable
5
275X21 DUN TU ET
(94127-21151-00)
Unavailable
5
FRONT TIRE
(94127-21325-00)
Unavailable
7
RIM 1.60X21
94416-21265-00
Unavailable
8
BAND, RIM
(94327-21024-00)
Unavailable
9
SPACER, BEAD
1T1-25194-00-00
Unavailable
10
SPACER
90560-12138-00
Unavailable
15
WASHER, PLATE 1832514700
90201-20269-00
Unavailable
16
CLUTCH, METER
183-25149-00-00
Unavailable
17
GEAR, DRIVE
37A-25135-00-00
Unavailable
18
PLATE, BRAKE SHOE
(434-25121-02-00)
Unavailable
19
CAMSHAFT
(434-25151-00-00)
Unavailable
20
SEAL,OIL
93105-47007-00
Unavailable
21
BRAKESHOE SET
22F-W2534-00-00
Unavailable
22
SPRING, TENSION (566).
90506-16150-00
Unavailable
23
SEAL, CAMSHAFT
137-25159-00-00
Unavailable
24
LEVER, CAMSHAFT 1 (401-25155-00)
401-25155-11-00
Unavailable
25
BOLT, HEXAGON
97017-06020-00
Unavailable
26
GEAR, METER
37A-25138-00-00
Unavailable
27
WASHER, PLATE 1832514600
90201-07076-00
Unavailable
28
BUSHING
109-25136-00-00
Unavailable
29
OIL SEAL (7X14X4-136)
93104-07003-00
Unavailable
30
PLUG 288251390000
90338-18014-00
Unavailable
31
SHAFT, WHEEL
401-25181-01-00
Unavailable
32
COLLAR
90387-12100-00
Unavailable
33
COVER, HUB DUST
2K5-25118-00-00
Unavailable
34
COLLAR 1832518300
90387-12095-00
Unavailable
35
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
36
NUT CASTLE(481)
90171-12005-00
Unavailable
37
PIN, COTTER
91490-30030-00
Unavailable
38
BAR, TENSION
(434-25171-01-00)
Unavailable
39
BOLT
(90109-08234-00)
Unavailable
40
BOLT
(90109-08380-00)
Unavailable
41
.. WASHER, PLATE
92990-08600-00
Unavailable
42
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
43
. NUT
95380-08700-00
Unavailable
44
PIN, COTTER
91490-20025-00
Unavailable
