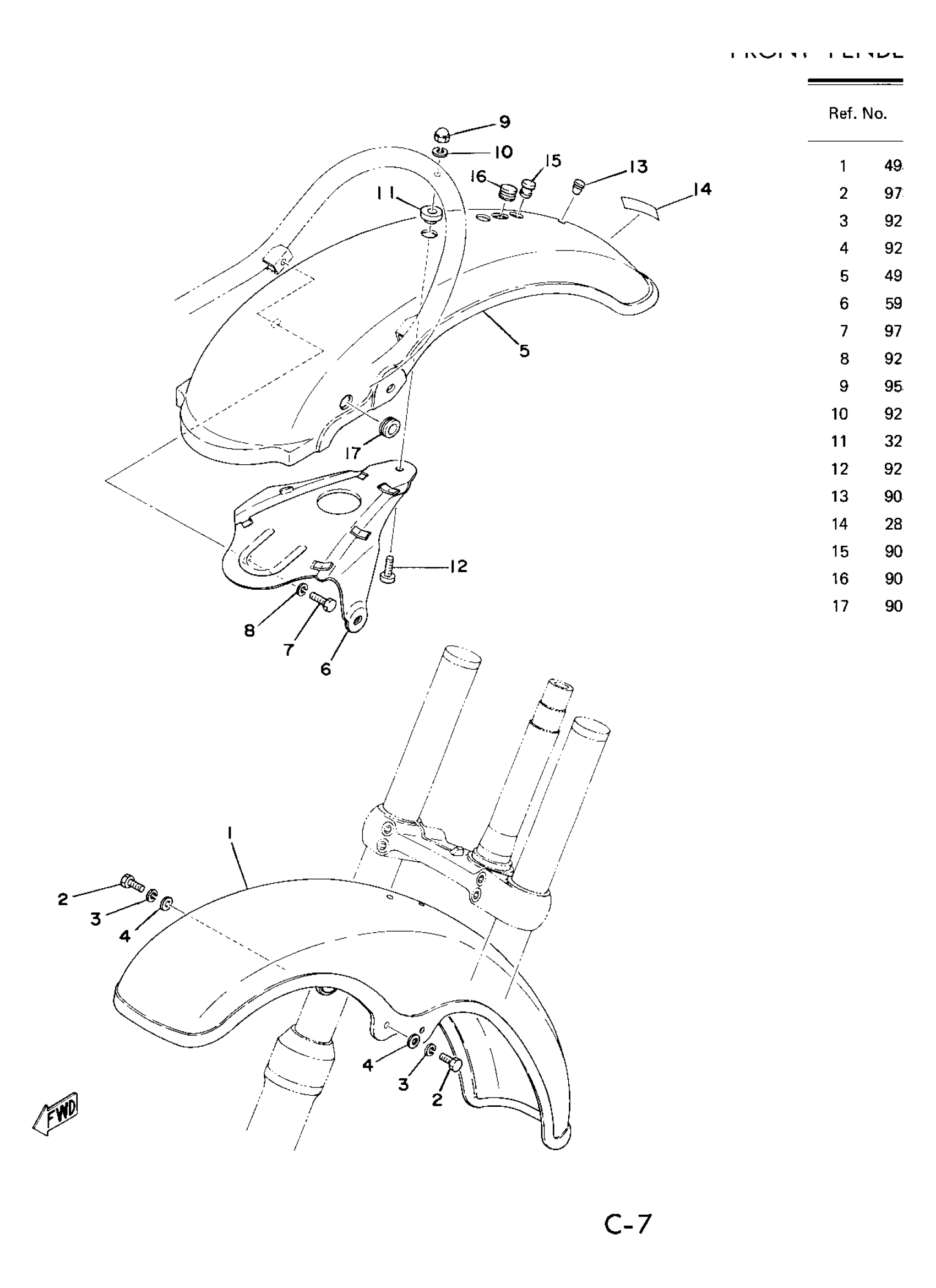

Yamaha TY250C (TY250) 1976 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER FRONT

493-21510-00-00

Unavailable

2

BOLT, HEXAGON

97017-06020-00

$2.37

3

WASHER, SPRING

92995-06100-00

$2.95

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

5

FENDER, REAR

493-21611-02-36

Unavailable

6

UNAVAILABLE IN PRICE BOOK

593-21617-00-00

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

WASHER, SPRING

92995-06100-00

$2.95

9

NUT (J17)

95380-06800-00

$6.28

10

WASHER, SPRING

92995-06100-00

$2.95

11

DAMPER, FENDER

322-21541-00-00

$6.28

12

SCREW, PAN HEAD(6E5)

97880-06018-00

$3.94

13

PLUG(1NL)

90338-07180-00

$5.30

14

LABEL, SAFETY

288-21659-00-00

Unavailable

15

GROMMET (397)

90480-10068-00

$6.32

16

GROMMET 285216390000

90480-14100-00

Unavailable

17

GROMMET (1E6)

90480-15058-00

Unavailable
