1976 Yamaha TY250 (TY250C) Frame - Side Cover Diagram

← All diagrams

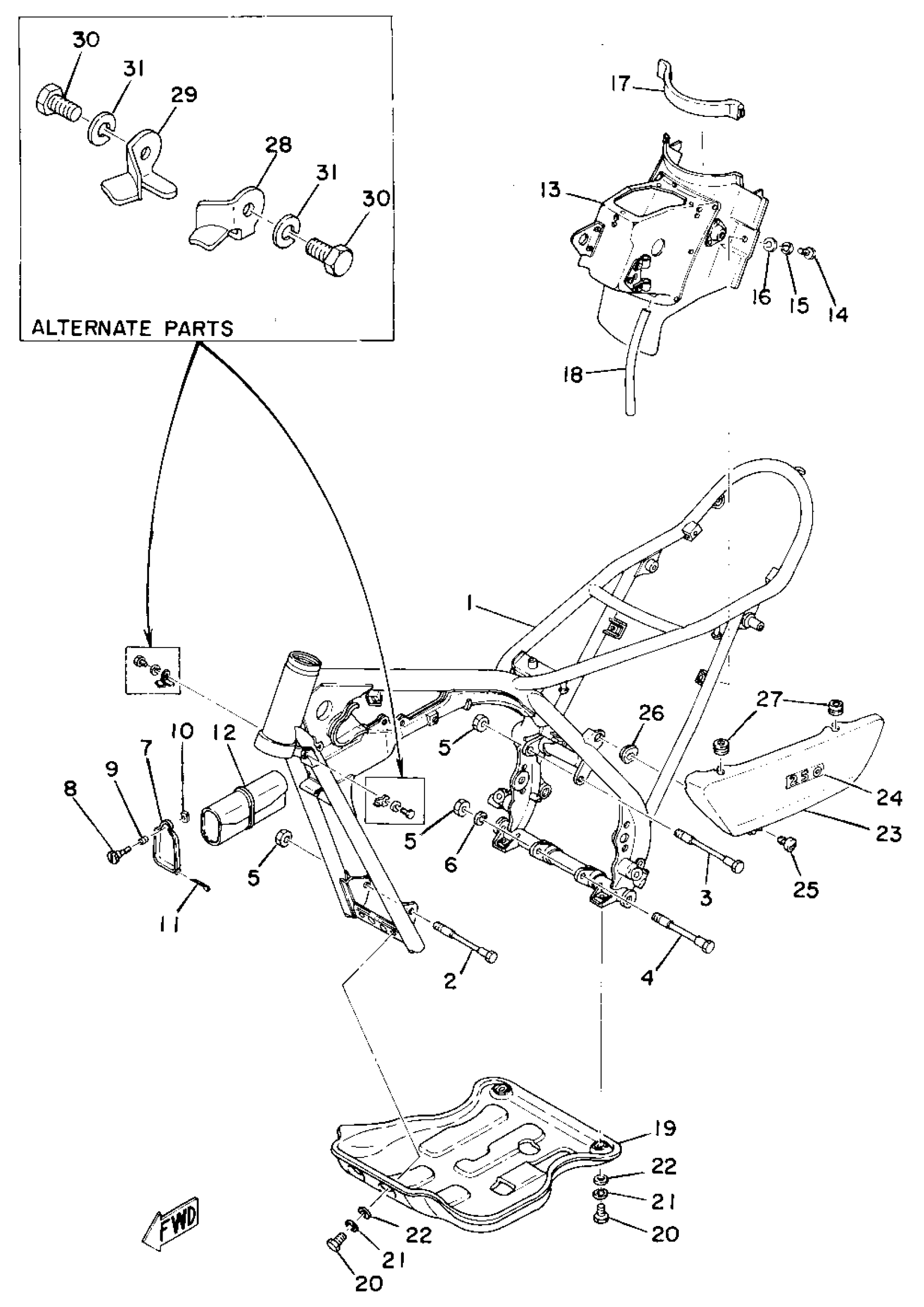

Find the part on the Frame - Side Cover diagram for your 1976 Yamaha TY250 (TY250C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TY250 (TY250C) Frame - Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(493-21110-01-35)

1
Out of stock

2

—

$11.26

In stock

3

BOLT(30W)

90109-101A0-00

—

$14.05

In stock

4

BOLT, WASHER BASED (2H7)

90105-10105-00

1
Out of stock

5

1

$6.02

In stock

6

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

7

COVER, TOOL BOX

(434-28171-00-00)

1
Out of stock

8

KNOB, TOOL BOX

(434-28172-00-00)

1
Out of stock

9

SPRING, COMPRESSION

90501-10187-00

1
Out of stock

10

NUT 136217130000

90179-06034-00

1

$6.22

In stock

11

PIN, COTTER (AM5)

91490-30045-00

1
Out of stock

12

TOOL KIT

2A6-W2810-00-00

1

$87.63

In stock

13

BOX, AIR CLEANER

(493-21240-00-00)

1
Out of stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

17

DAMPER

(434-21746-00-00)

1
Out of stock

18

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

19

PROTECTOR, ENGINE

(493-21471-02-00)

1
Out of stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

COVER, SIDE 1

(493-21711-00-G3)

1
Out of stock

24

EMBLEM 7

(493-21787-01-00)

1
Out of stock

25

KNOB, SIDE COVER 1

371-21714-00-00

1
Out of stock

26

GROMMET(41Y)

90480-01401-00

—

$5.51

In stock

27

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

28

STOPPER, STEERING 1

(493-23432-10-00)

1
Out of stock

29

CAP, END

(493-23438-10-00)

1
Out of stock

30

BOLT (661)

97013-06012-00

—

$4.71

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
