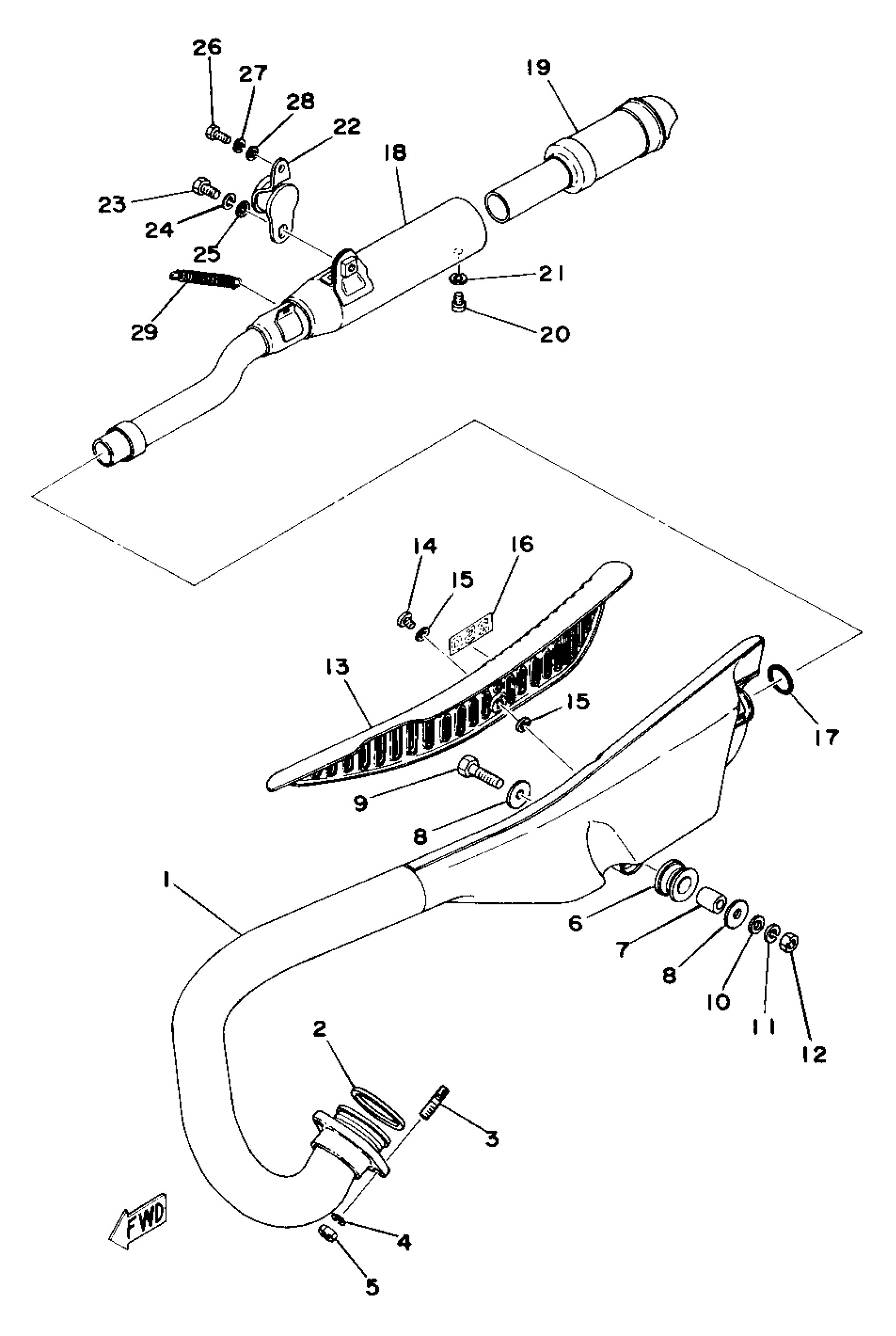

Yamaha TY250C (TY250) 1976 EXHAUST Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

493-15610-01-00

Unavailable

2

GASKET, EXHAUST PIPE

214-14613-09-00

$18.49

3

BOLT, STUD

90116-06216-00

Unavailable

4

WASHER, SPRING

92995-06100-00

Unavailable

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

DAMPER, REAR

168-21639-00-00

$10.99

7

COLLAR (437)

90387-08258-00

$10.49

8

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

9

BOLT

97013-08035-00

$5.60

10

WASHER, PLAIN

92990-08200-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

NUT(6L2)

95333-08600-00

$2.49

13

PROTECTOR, MUFF 1

(434-14718-01-G3)

Unavailable

14

SCREW, BIND(1JK)

98980-06010-00

$9.49

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

EMBLEM, PROTECTOR

(493-14729-00-00)

Unavailable

17

O-RING (437)

93210-24235-00

Unavailable

18

SILENCER, EXHAUST

434-14753-00-00

Unavailable

19

PIPE, OUTLET

1M1-14752-01-00

Unavailable

20

SCREW PAN HEAD

98580-06010-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

STAY 5

363-14782-10-00

Unavailable

23

BOLT(JA9)

90101-08691-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

25

WASHER, PLAIN

92990-08200-00

Unavailable

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

29

SPRING, TENSION

90506-16108-00

Unavailable
