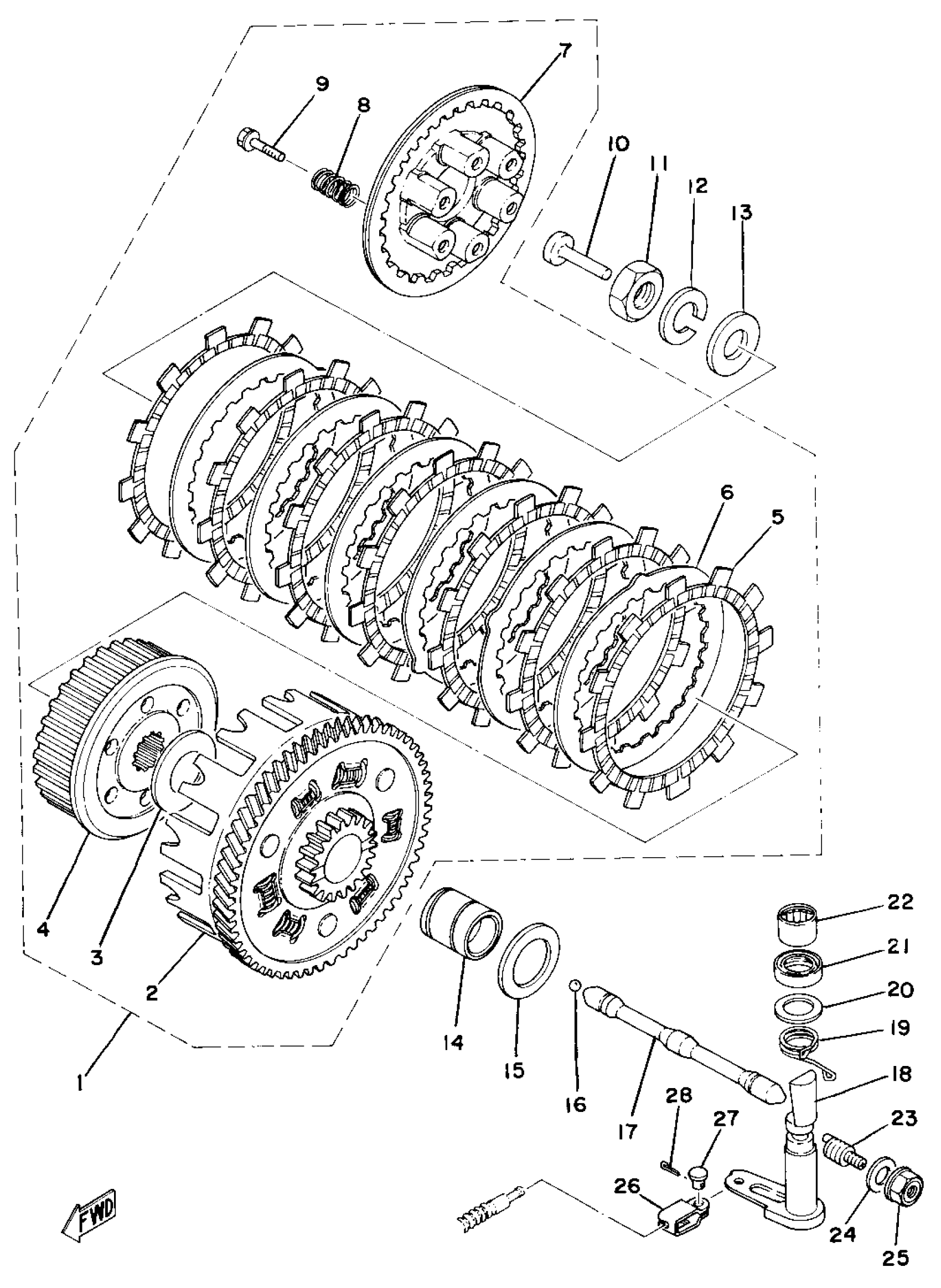

Yamaha TY250C (TY250) 1976 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(493-16301-00-00)

Unavailable

2

PRI DRVN GEAR

(493-16150-00-00)

Unavailable

3

PLATE, THRUST (2)

170-16164-00-00

$9.99

4

. BOSS, CLUTCH

498-16371-00-00

Unavailable

5

PLATE, FRICTION

5Y1-16331-01-00

$29.99

6

PLATE, CLUTCH 2

498-16325-10-00

$14.49

7

PLATE, PRESSURE

498-16351-00-00

Unavailable

8

SPRING COMPRESSION168163330000

90501-23138-00

$5.60

9

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

10

ROD, PUSH

174-16356-00-00

$20.99

11

NUT

90170-18089-00

Unavailable

12

WASHER(N15)

92907-18100-00

$9.49

13

WASHER (6E5)

92990-18200-00

Unavailable

14

SPACER 1

(498-16181-00-00)

Unavailable

15

PLATE, THRUST

360-16154-00-00

$21.99

16

BALL (498)

93511-32027-00

Unavailable

17

ROD, PUSH 1

(510-16356-00-00)

Unavailable

18

AXLE, PUSH LEVER

434-16382-01-00

Unavailable

19

SPRING, TORSION

(90508-12131-00)

Unavailable

20

WASHER PLATE 168217580000

90201-18262-00

Unavailable

21

OIL SEAL (17X28X6-101)

93102-17004-00

Unavailable

22

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

Unavailable

23

SCREW, ADJUSTING

364-16343-00-00

Unavailable

24

GASKET (3JD1)

90430-12207-00

Unavailable

25

NUT, CLUTCH ADJUSTING

583-16344-00-00

Unavailable

26

JOINT

214-16389-00-00

Unavailable

27

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

28

. PIN, COTTER

91401-10015-00

Unavailable
