1976 Yamaha TY250 (TY250C) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1976 Yamaha TY250 (TY250C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

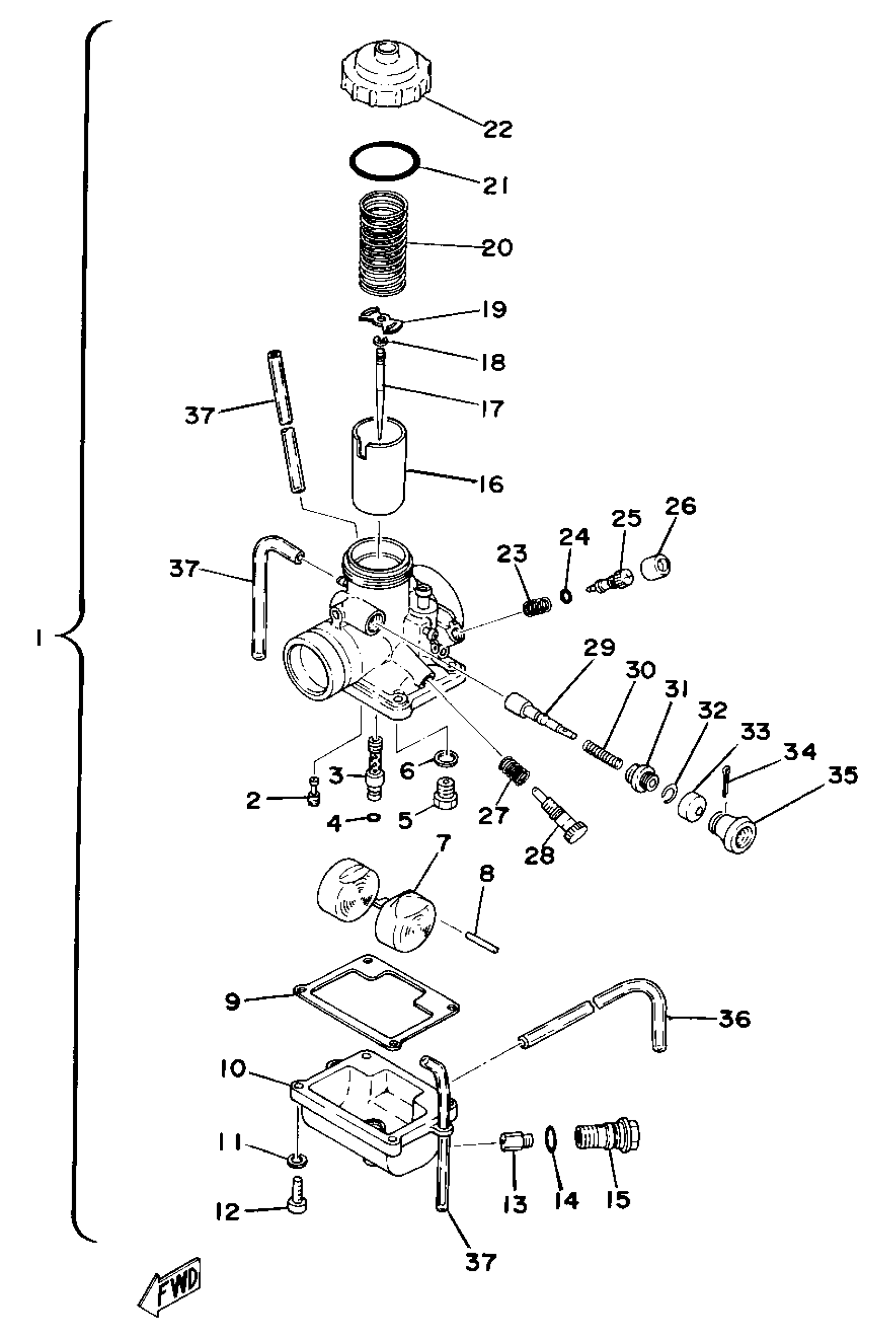

1976 Yamaha TY250 (TY250C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

493-14101-62-00

1
Out of stock

2

JET, PILOT (# 35)

260-14142-35-00

1
Out of stock

3

NOZZLE, MAIN

(493-14141-28-00)

1
Out of stock

4

O-RING

214-14147-00-00

1
Out of stock

5

NEEDLE VALVE SET

23L-14107-25-00

1
Out of stock

6

WASHER, VALVE SEAT

214-14195-00-00

1
Out of stock

7

FLOAT

493-14185-00-00

1
Out of stock

8

PIN, FLOAT

127-14186-00-00

1
Out of stock

9

GASKET,FLOAT CHAMBER

304-14184-00-00

1
Out of stock

10

BODY, FLOAT CHMBR 1

(493-14181-00-00)

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

12

SCREW, PAN HEAD(GA5)

98580-04014-00

1
Out of stock

13

JET, MAIN #270

137-14143-54-A1

1
Out of stock

13

JET, MAIN #280

137-14143-56-A0

—
Out of stock

13

JET, MAIN #290

137-14143-58-A1

—
Out of stock

14

O-RING (248)

93220-09001-00

—
Out of stock

15

BOLT, BANJO

(493-14166-00-00)

1
Out of stock

16

VALVE, THROTTLE 1

(493-14112-30-00)

1
Out of stock

17

NEEDLE SET

18L-1490J-00-00

—
Out of stock

18

CLIP

3FA-14137-00-00

—
Out of stock

19

. STOPPER, CABLE

246-14132-00-00

1
Out of stock

20

SPRING, THROTTLE VALVE

248-14131-00-00

—
Out of stock

21

. O-RING

361-14147-00-00

1
Out of stock

22

TOP, MIXING CHAMBER

(493-14158-00-00)

1
Out of stock

23

SPRING, AIR ADJUSTING

174-14134-00-00

—
Out of stock

24

O-RING (493-CARB.)

354-14147-00-00

—
Out of stock

25

. SCREW, AIR ADJUSTING

493-14123-00-00

1
Out of stock

26

CAP

(493-14968-00-00)

1
Out of stock

27

. SPRING, THROTTLE STOP

493-14133-00-00

1
Out of stock

28

. SCREW, THROTTLE

493-14122-00-00

1
Out of stock

29

. PLUNGER, STARTER

304-14171-00-00

1
Out of stock

30

SPRING, PLUNGER

156-14135-00-00

—
Out of stock

31

CAP, PLUNGER

152-14174-00-00

—
Out of stock

32

CLIP, PLUNGER

353-14138-00-00

—
Out of stock

33

COVER, PLUNGER CAP

132-14173-00-00

—
Out of stock

34

PIN, COTTER

91490-16020-00

1
Out of stock

35

HOLDER

304-14261-00-00

—
Out of stock

36

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

37

PIPE, OVER FLOW

2J2-14196-00-00

—
Out of stock
