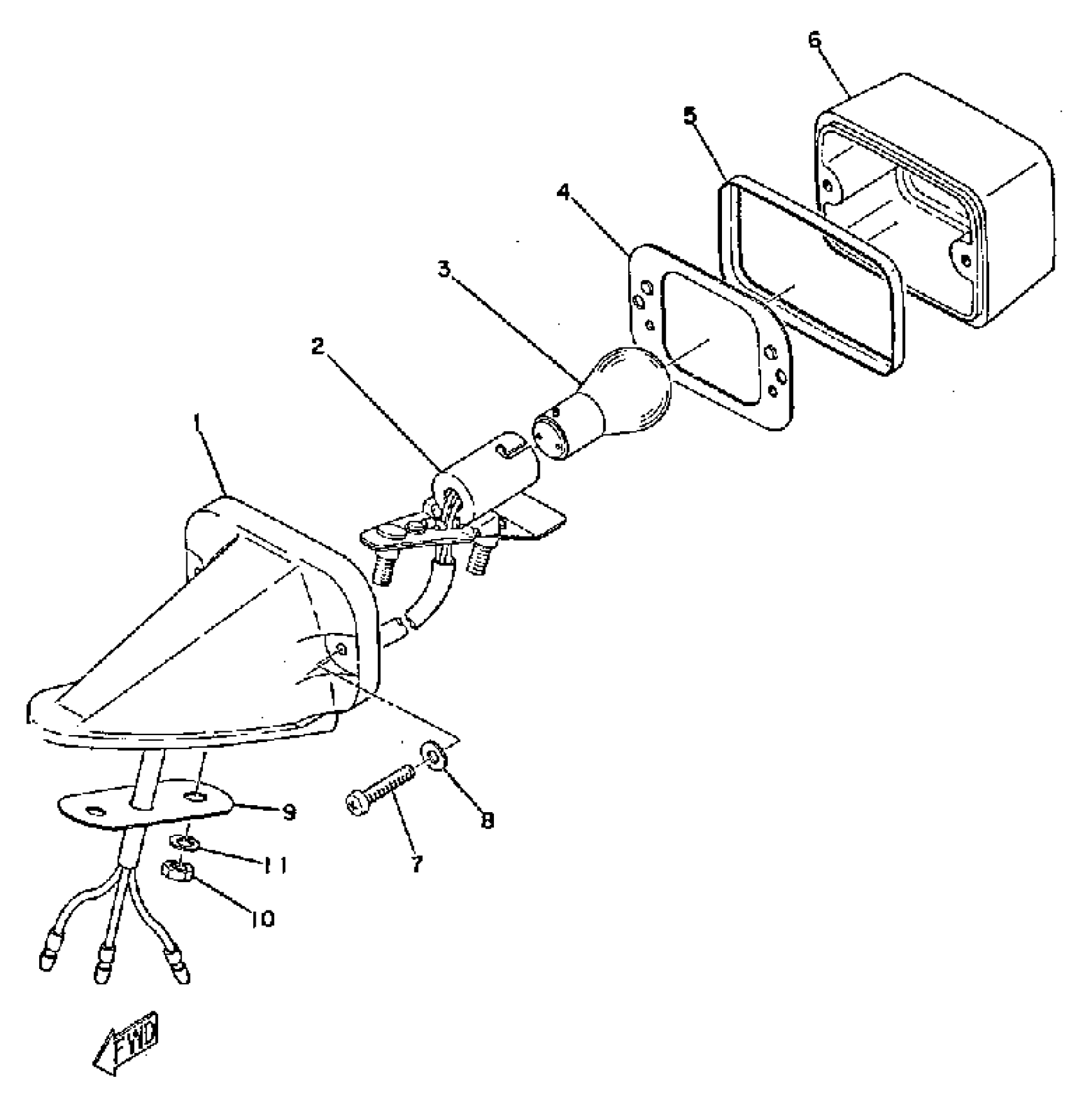

Yamaha TY250A (TY250) 1974 TAIL LAMP Diagram

#

Description

Price

1

TAILLIGHT ASSEMBLY

434-84500-64-00

Unavailable

1

. BRACKET, TAILLIGHT

434-84519-61-00

Unavailable

2

BASE, TAILLIGHT

(434-84511-61-00)

Unavailable

3

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

4

SEAT, BASE

(434-84512-61-00)

Unavailable

5

RIM,TAILLIGHT

5AU-83323-01-00

Unavailable

6

LENS, TAIL LAMP

434-84521-69-00

Unavailable

7

. SCREW, LENS FITTING

434-84524-61-00

Unavailable

8

WASHER, PLATE 8067717800

90201-05029-00

$8.49

9

WASHER, SPECIAL

(434-84525-01-00)

Unavailable

10

NUT, HEXAGON (663)

95380-05600-00

$8.49

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35
