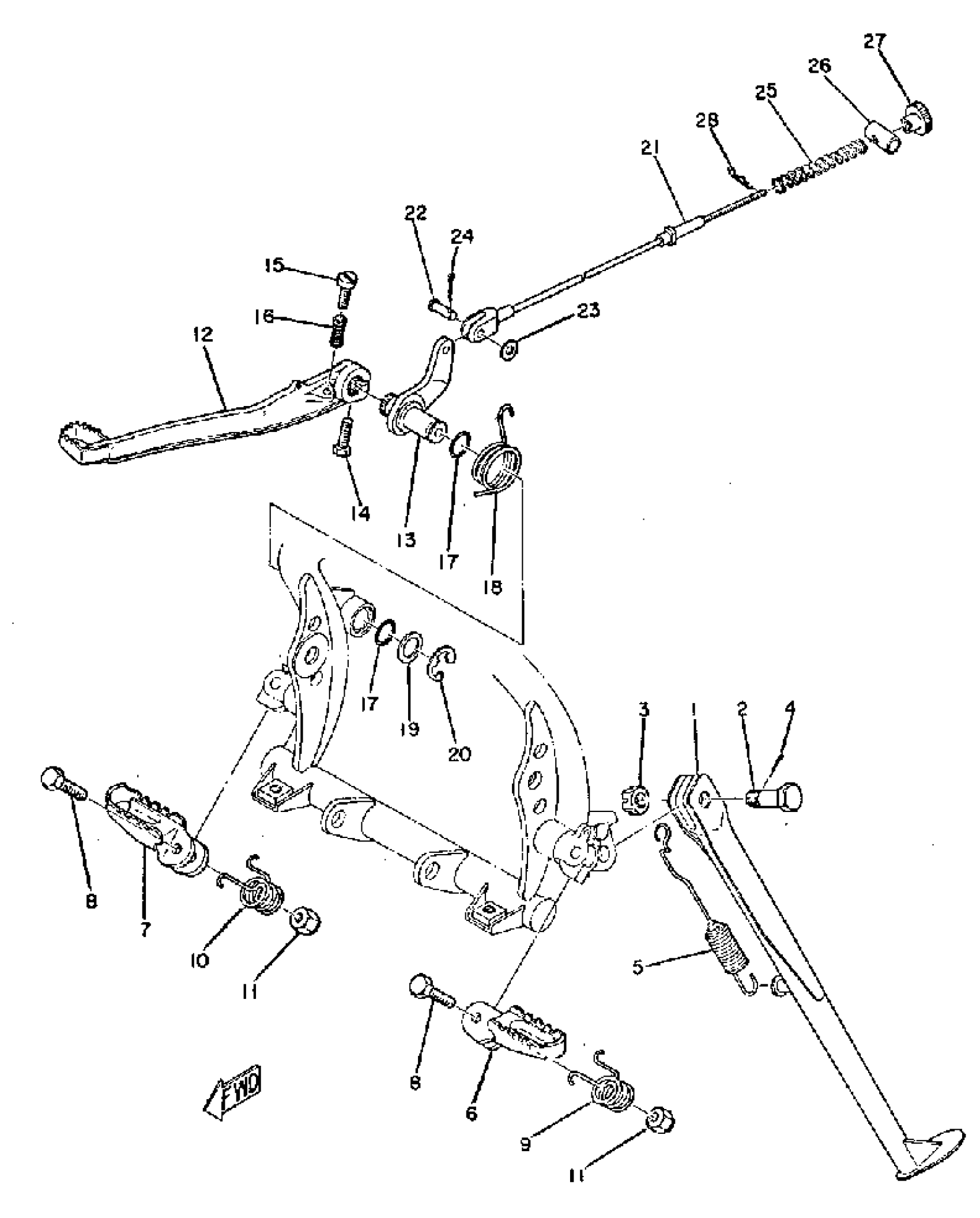

Yamaha TY250A (TY250) 1974 STAND-FOOTREST-BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

(434-27311-00-00)

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING (434)

90507-29008-00

$28.99

6

FOOTREST 1

434-27411-00-35

Unavailable

7

UNAVAILABLE IN PRICE BOOK

434-27412-00-35

Unavailable

8

BOLT (157-27416-00)

90109-08376-00

Unavailable

9

SPRING, TORSION

90508-26138-00

Unavailable

10

SPRING, TORSION

90508-26139-00

Unavailable

11

NUT, U

95617-08100-00

$9.49

12

PEDAL, BRAKE

434-27211-01-93

Unavailable

13

SHAFT, BRAKE PEDAL

(434-27212-01-00)

Unavailable

14

BOLT(3DM)

97024-06020-00

$8.49

15

SCREW, CYLINDER.HEAD

(92301-06020-00)

Unavailable

16

SPRING, COMPRESSION

(90501-10186-00)

Unavailable

17

O-RING (648)

93210-14167-00

Unavailable

18

SPRING, TORSION

(90508-35145-00)

Unavailable

19

WASHER, PLAIN (434)

90201-14411-00

Unavailable

20

. CIRCLIP

99001-12600-00

Unavailable

21

CABLE, BRAKE

434-26351-00-00

Unavailable

22

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

23

WASHER, PLATE (371)

90201-06431-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

SPRING, COMPRESSION (294-27236-00)

90501-09054-00

Unavailable

26

PIN 1562723700

90249-12008-00

Unavailable

27

NUT, SPEC''L SHAPE

90179-06006-00

Unavailable

28

CLIP (156-83525-00)

90468-10050-00

Unavailable
