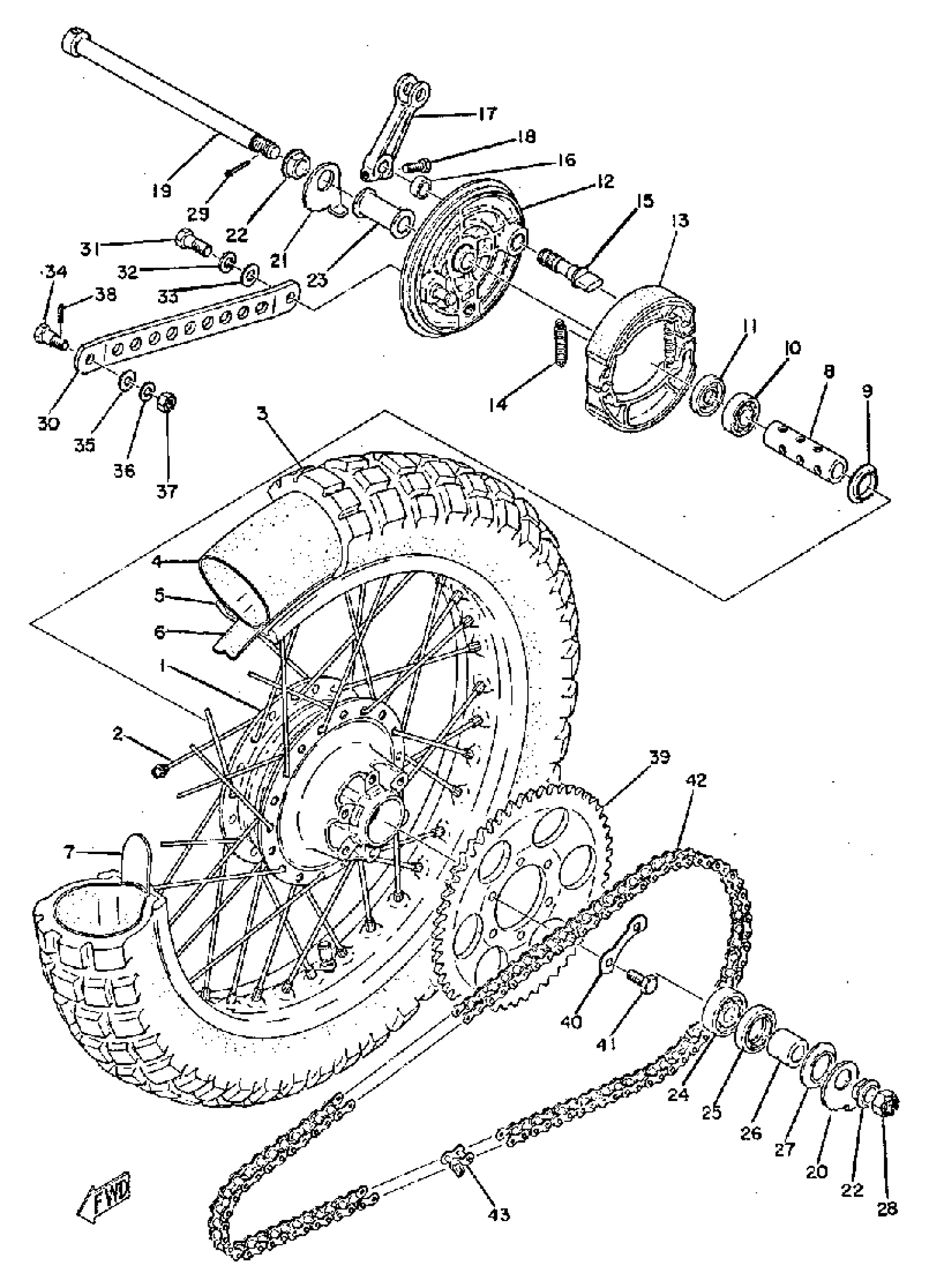

Yamaha TY250A (TY250) 1974 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(434-25311-01-00)

Unavailable

2

SPOKE SET, REAR

434-25304-00-00

Unavailable

3

400X18 DUN TRI UNI

(94140-18317-00)

Unavailable

4

TUBE (5A8)

94212-18188-00

$35.99

5

RIM 2.15X18

(94421-18111-00)

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER,BEAD

1T1-25394-01-00

Unavailable

8

SPACER

90560-15314-00

Unavailable

9

FLANGE, SPACER

146-25115-00-00

$6.99

10

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

11

OIL SEAL (22X35X5)

93104-22018-00

$11.49

12

PLATE, BRAKE SHOE

(434-25321-01-00)

Unavailable

13

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

14

SPRING (5T9)

90506-17328-00

Unavailable

15

CAMSHAFT

2RH-25351-00-00

$34.99

16

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

17

LEVER, CAMSHAFT

434-25355-01-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

AXLE, WHEEL (2R7-25381-00)

401-25381-00-00

Unavailable

20

PULLER, CHAIN 1

(434-25388-01-00)

Unavailable

21

PULLER, CHAIN 2

(434-25389-01-00)

Unavailable

22

COLLAR

(90387-15281-00)

Unavailable

23

COLLAR

(90387-15237-00)

Unavailable

24

BEARING

93306-30212-00

Unavailable

25

SEAL,OIL

93106-26005-00

Unavailable

26

COLLAR

90387-15115-00

Unavailable

27

COVER, DUST

401-25367-00-00

Unavailable

28

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

29

PIN, COTTER

91490-30030-00

Unavailable

30

BAR, TENSION

434-25371-01-00

Unavailable

31

BOLT

(90101-10254-00)

Unavailable

32

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

33

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

34

BOLT 1092537300

90109-08063-00

Unavailable

35

WASHER, PLAIN

92990-08200-00

Unavailable

36

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

37

NUT(6L2)

95333-08600-00

Unavailable

38

PIN, COTTER

91490-25020-00

Unavailable

39

SPROCKET, DRIVN 53T

434-25453-01-00

Unavailable

40

WASHER, LOCK

22W-25412-00-00

Unavailable

41

BOLT, FITTING

90109-08377-00

Unavailable

42

SET, CHAIN

94A40-07114-00

Unavailable

43

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable
