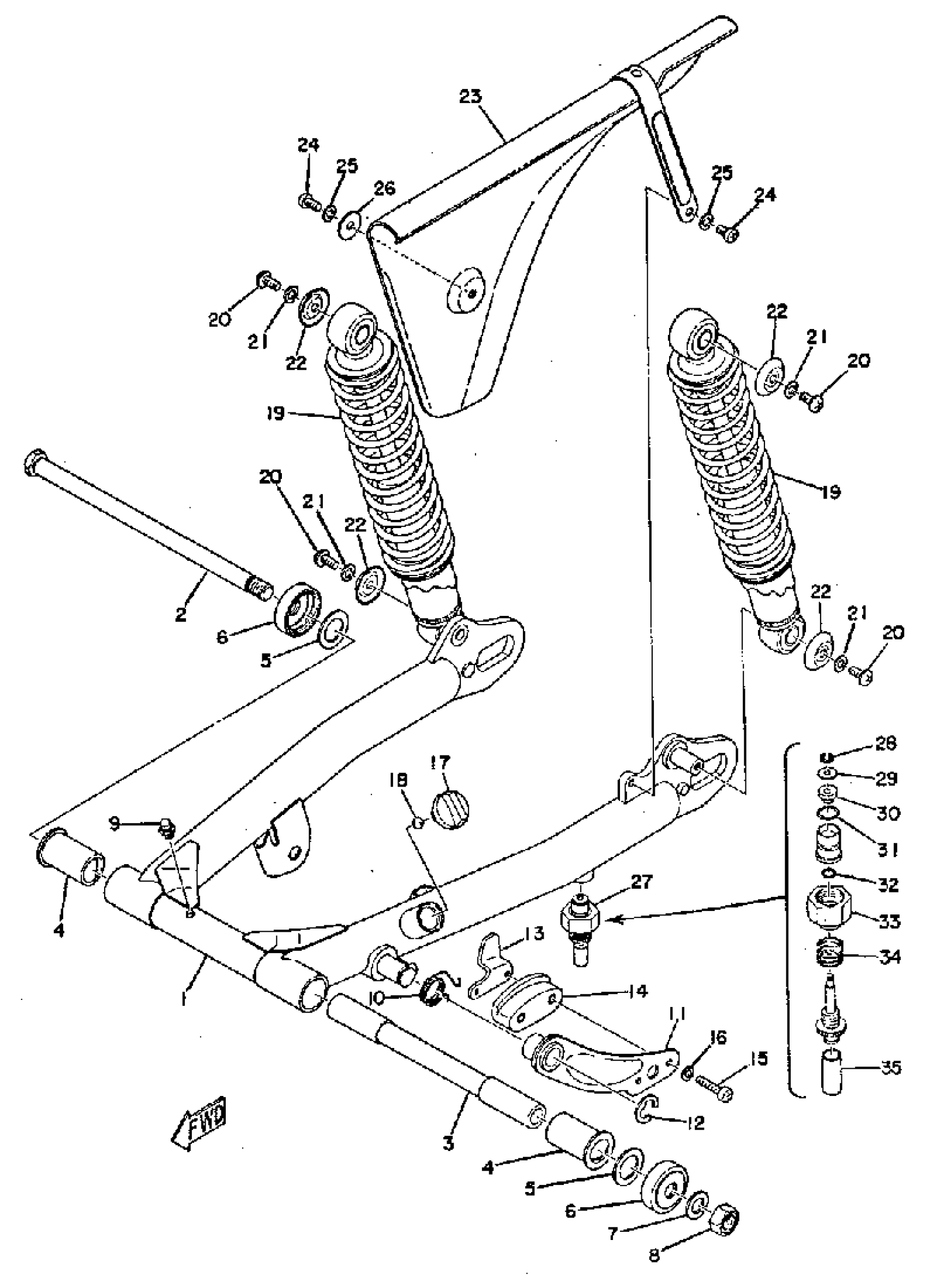

Yamaha TY250A (TY250) 1974 REAR ARM-REAR CUSHION-CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(493-22110-02-35)

Unavailable

2

SHAFT, PIVOT

34X-22141-00-00

Unavailable

3

BUSH 2

434-22124-01-00

Unavailable

4

BUSHING (401-22123-00)

90386-18028-00

$26.99

5

SHIM

401-22127-00-00

$7.99

6

COVER, THRUST 1

401-22128-01-00

$29.99

7

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

8

NUT, HEXAGON

(90170-12132-00)

Unavailable

9

NIPPLE, GREASE

93700-06005-00

$12.49

10

SPRING, TORSION

90508-32140-00

Unavailable

11

ARM, TENSIONER

(434-22179-00-93)

Unavailable

12

CIRCLIP (137)

93430-10015-00

$9.49

13

GUARD, CHAIN

434-22153-00-00

Unavailable

14

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

15

SCREW, PAN HEAD

98580-05020-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

CAP

434-21815-01-00

Unavailable

18

BALL

288-24684-00-00

Unavailable

19

SHK/ABS ASSEMBLY, REAR

(434-22210-01-00)

Unavailable

20

SCREW, BIND(J45)

98980-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, REAR CUSHION (434)

90207-06009-00

Unavailable

23

CASE, CHAIN

(434-22311-00-35)

Unavailable

24

SCREW PAN HEAD

98580-06010-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLATE

90201-06380-00

Unavailable

27

CHAIN OILER ASSEMBLY

(434-22280-02-00)

Unavailable

28

CIRCLIP (604)

93430-02001-00

Unavailable

29

WASHER,PLAIN

92990-03200-00

Unavailable

30

GASKET, VALVE

(434-22283-00-00)

Unavailable

31

O-RING

(93210-09091-00)

Unavailable

32

O-RING

93210-05098-00

Unavailable

33

NUT, OILER

(434-22281-01-00)

Unavailable

34

SPRING

(434-22286-00-00)

Unavailable

35

TUBE

(434-22285-00-00)

Unavailable
