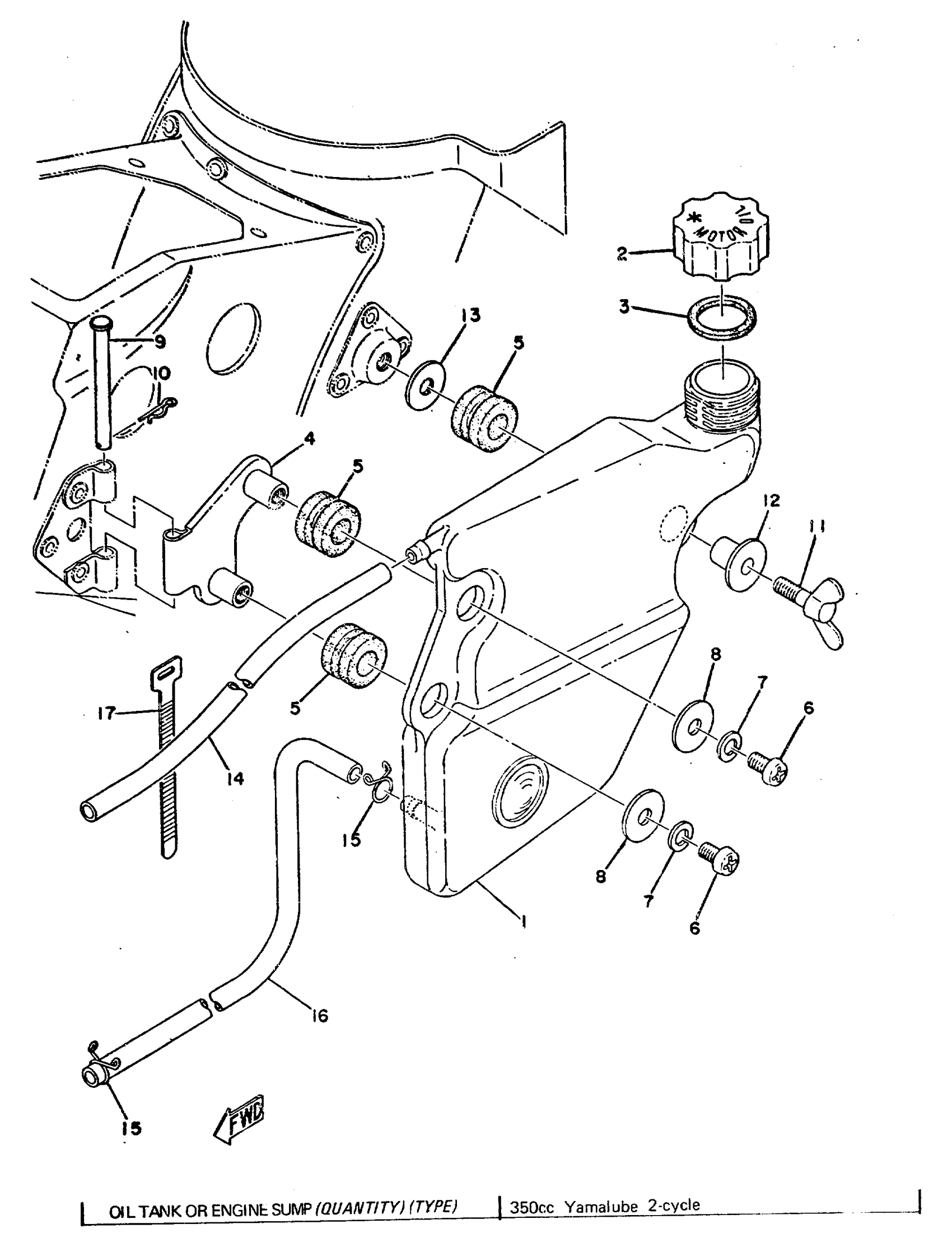

Yamaha TY250A (TY250) 1974 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

(434-21751-00-00)

Unavailable

2

BODY, CAP

434-21771-00-00

$7.99

3

GASKET, CAP (434)

90430-18067-00

$9.49

4

HINGE

(434-21797-01-00)

Unavailable

5

GROMMET 839774310000

90480-14023-00

$7.49

6

SCREW PAN HEAD

98580-06010-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE

90201-06380-00

$0.60

9

PIN, CLEVIS

91701-05055-00

$7.49

10

CLIP (156-83525-00)

90468-10050-00

$3.05

11

BOLT, WING (38W)

90122-06021-00

Unavailable

12

COLLAR

90387-06158-00

$8.49

13

NUT, RATCH CLAMP (462)

90179-06013-00

$7.49

14

HOSE (L1500)

90445-090F6-00

$31.99

15

CLIP

90467-100A1-00

$7.49

16

HOSE

(90445-09116-00)

Unavailable

17

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
