1974 Yamaha TY250 (TY250A) Handle-Wire Diagram

← All diagrams

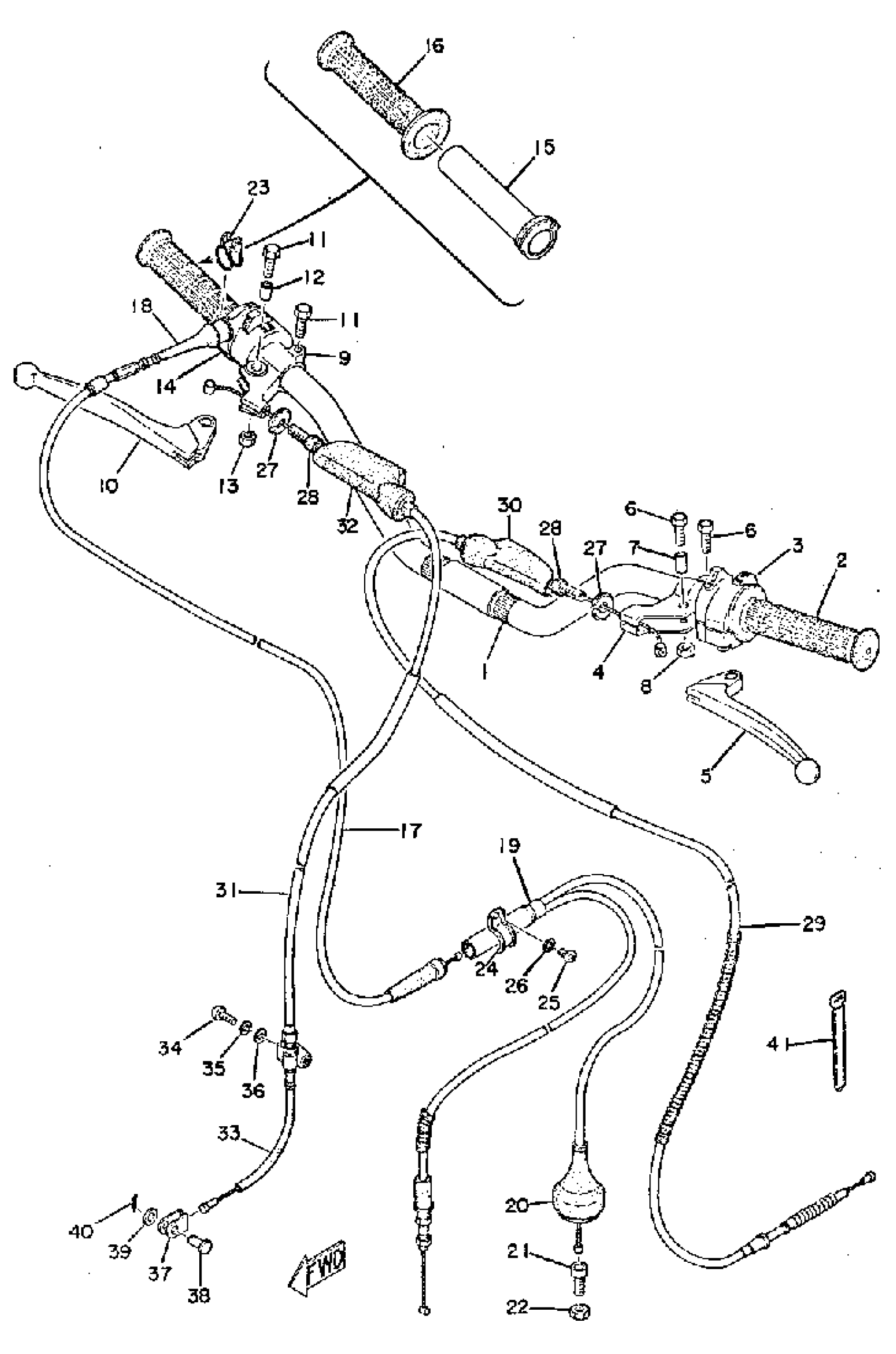

Find the part on the Handle-Wire diagram for your 1974 Yamaha TY250 (TY250A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TY250 (TY250A) Handle-Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

1

HANDLE

525-26111-01-00

—

$195.71

In stock

2

LEVER HOLDER ASSEMBLY 2

(233-82920-33-00)

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 2

434-83975-00-00

1
Out of stock

4

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

10

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

11

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

12

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

SWITCH, HANDLE 1

434-83976-00-00

1
Out of stock

15

TUBE, THROTTLE GUIDE

434-26243-12-00

—
Out of stock

16

GRIP RH

341-26242-01-00

1
Out of stock

17

CABLE, THROTTLE 1

434-26311-00-00

1
Out of stock

18

. BOOT, THROTTLE CBLE

322-26316-00-00

1
Out of stock

19

CABLE, THROTTLE 2

434-26312-00-00

1
Out of stock

20

. CAP, RUBBER

401-26329-00-00

1
Out of stock

21

JOINT, CABLE

(322-26347-00-00)

1
Out of stock

22

NUT HEXAGON 647263190000

90170-06011-00

—

$1.95

In stock

23

CLAMP, HOSE

90460-12268-00

1
Out of stock

24

HOLDER

363-26393-00-00

1
Out of stock

25

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

NUT

90179-08030-00

—

$3.78

In stock

28

BOLT

90123-08002-00

—

$8.93

In stock

29

CABLE, CLUTCH

434-26335-03-00

1
Out of stock

30

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

31

WIRE, BRAKE 1

434-26341-05-00

—
Out of stock

32

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

33

BOOT, CABLE

(434-26342-01-00)

1
Out of stock

34

SCREW, PAN

98507-06014-00

—

$6.18

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

37

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

38

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

39

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

40

PIN, COTTER

91490-20025-00

—

$1.31

In stock

41

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
