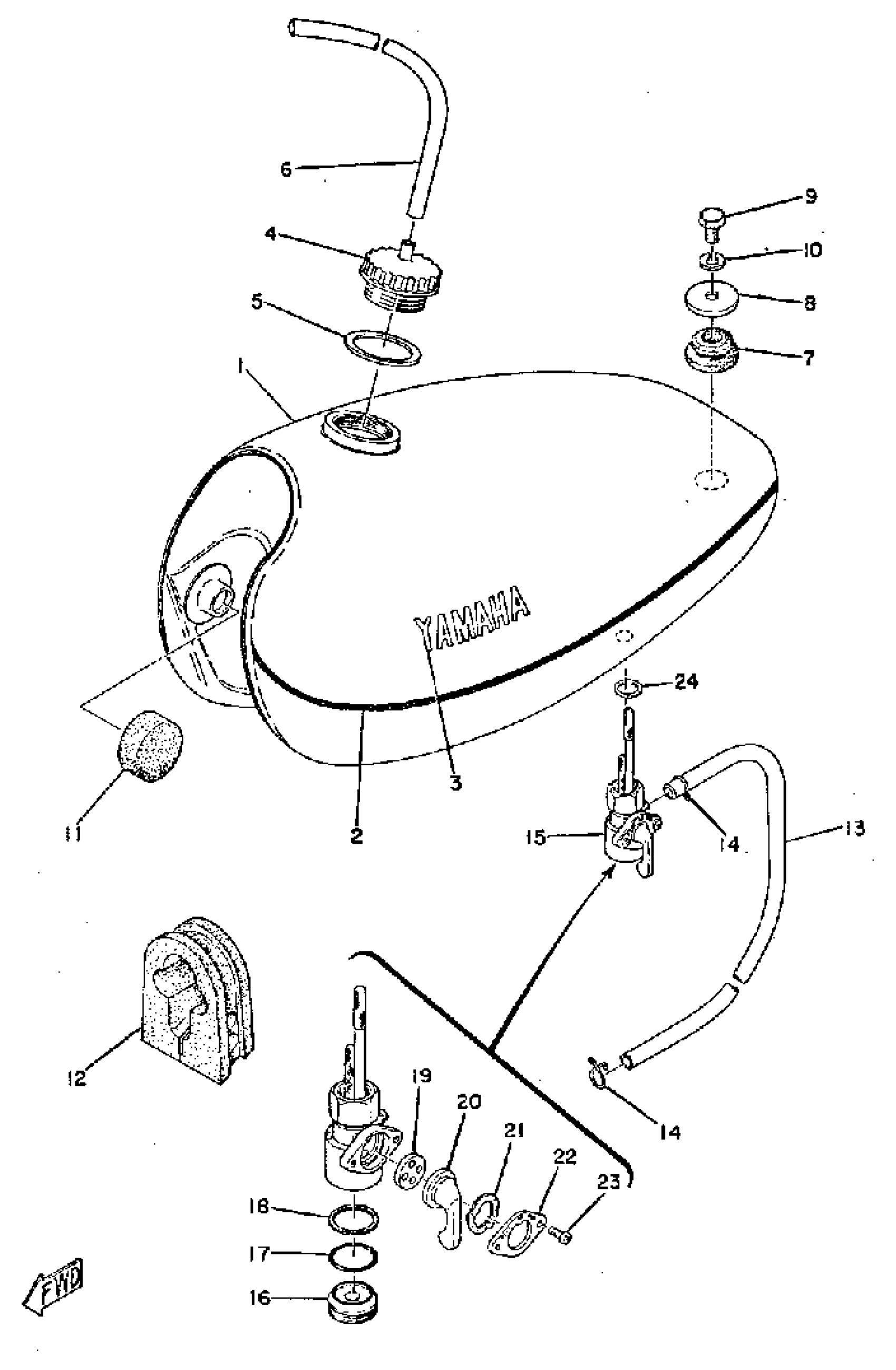

Yamaha TY250A (TY250) 1974 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(434-24110-00-01)

Unavailable

2

GRAPHIC, FUEL TNK 1

(434-24244-00-00)

Unavailable

3

EMBLEM, YAMAHA(4GA)

99221-00140-00

$4.46

4

BODY, CAP

322-24611-02-00

$57.99

5

GASKET (322-24612-00)

90430-37052-00

Unavailable

6

HOSE (L420)

90445-092K1-00

$12.49

7

DAMPER, FUEL TANK (434)

90480-22054-00

$9.49

8

WASHER

90209-08008-00

$7.49

9

BOLT(JA9)

90101-08691-00

$4.29

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

12

DAMPER, LOCATING 3

(434-24183-00-00)

Unavailable

13

HOSE (L1500)

90445-090F6-00

$31.99

14

CLIP, PIPE 1

810-24356-00-00

Unavailable

15

FUEL COCK ASSEMBLY 1

434-24500-03-00

Unavailable

16

CUP, FILTER

(434-24521-00-00)

Unavailable

17

GASKET, FILTER

498-24522-00-00

Unavailable

18

WASHER

(434-24576-00-00)

Unavailable

19

VALVE

137-24523-00-00

Unavailable

20

. LEVER, COCK

168-24524-00-00

Unavailable

21

WASHER, WAVE

132-24518-00-00

Unavailable

22

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

23

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

24

GASKET, FUEL COCK

434-24532-00-00

Unavailable
