FRONT WHEEL

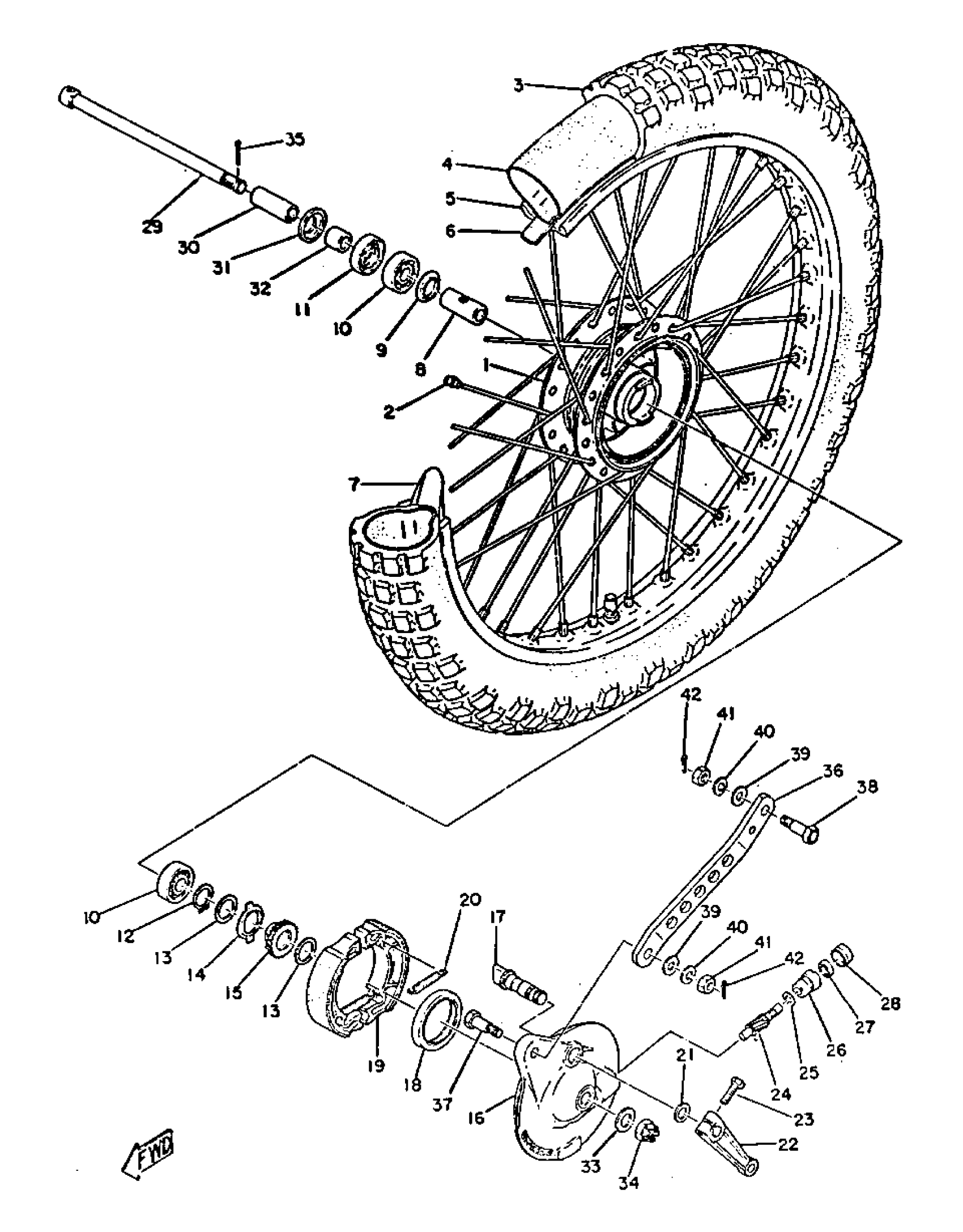

1974 Yamaha TY250 (TY250A) Front Wheel Diagram
Find the part on the Front Wheel diagram for your 1974 Yamaha TY250 (TY250A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, FRONT
(248-25111-00-38)
2
SPOKE SET, FRONT
345-25104-01-00
2
SPOKE SET, INNER 1
(345-25196-90-00)
2
SPOKE SET, OUTER 1
(345-25197-90-00)
3
275X21 DUN TRIUNI
(94127-21332-00)
4
TUBE (2.75-21)(2YY)
94227-21293-00
5
RIM 1.60X21
94416-21265-00
6
BAND, RIM
(94327-21024-00)
10
BEARING
93306-30102-00
12
CIRCLIP(1AR)
99009-20400-00
13
WASHER, PLATE 1832514700
90201-20269-00
14
CLUTCH, METER
183-25149-00-00
15
GEAR, DRIVE
37A-25135-00-00
16
PLATE, BRAKE SHOE
(434-25121-02-00)
17
CAMSHAFT
(434-25151-00-00)
18
SEAL,OIL
93105-47007-00
19
BRAKE SHOE SET-2 PCS
326-W2536-00-00
21
SEAL, CAMSHAFT
137-25159-00-00
22
LEVER, CAMSHAFT 1 (401-25155-00)
401-25155-11-00
24
GEAR, METER
37A-25138-00-00
30
COLLAR
90387-12100-00
31
COVER, HUB DUST
2K5-25118-00-00
36
BAR, TENSION
(434-25171-01-00)
37
BOLT
(90109-08234-00)
38
BOLT
(90109-08380-00)
