1974 Yamaha TY250 (TY250A) Front Fork Diagram

← All diagrams

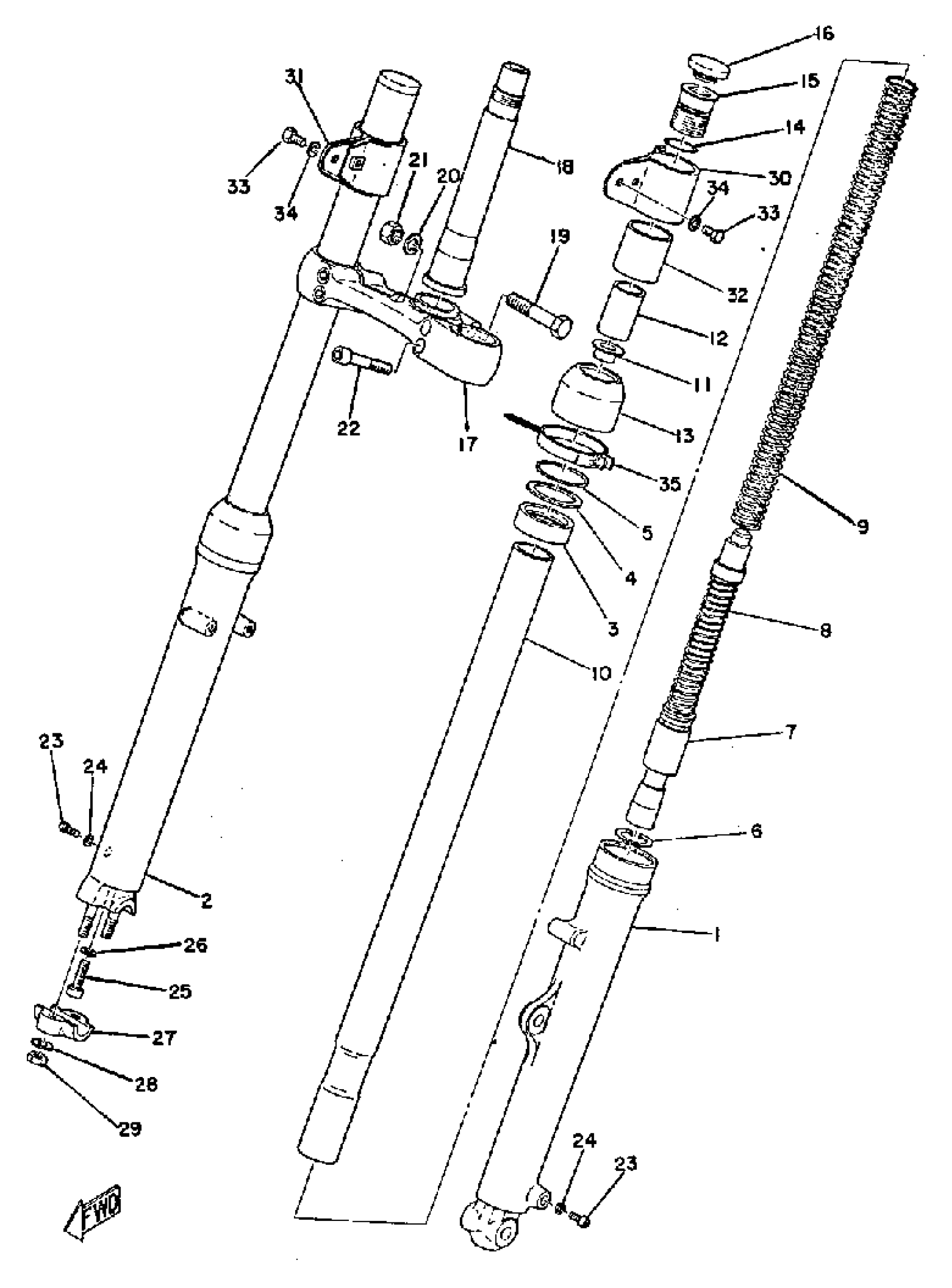

Find the part on the Front Fork diagram for your 1974 Yamaha TY250 (TY250A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TY250 (TY250A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(434-23101-00-00)

1
Out of stock

1

TUBE, OUTER 1

(434-23126-00-00)

1
Out of stock

2

TUBE, OUTER 2

(434-23136-00-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(434-23171-00-00)

1
Out of stock

8

CYLINDER, FRTFRK

(434-23170-00-00)

1
Out of stock

9

. SPRING, FRONT FORK

434-23141-00-00

1
Out of stock

10

TUBE, INNER 1

(434-23124-00-00)

1
Out of stock

11

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

12

SPACER

(214-23118-00-00)

1
Out of stock

13

. SEAL, DUST

292-23144-00-00

1
Out of stock

14

. GASKET

214-23114-00-00

1
Out of stock

15

. BOLT, CAP

341-23111-51-00

1
Out of stock

16

. CAP, FRONT FORK

371-23168-60-00

1
Out of stock

17

BRACKET, LOWER

(434-23345-00-00)

1
Out of stock

18

SHAFT, STEERING

(516-23341-31-00)

1
Out of stock

19

BOLT 2

(322-23356-00-00)

1
Out of stock

20

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

21

NUT

(322-23357-00-00)

1
Out of stock

22

BOLT 1

(322-23346-00-00)

1
Out of stock

23

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

24

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

25

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

26

GASKET

509-23158-L0-00

—

$14.34

In stock

27

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

NUT(6L2)

95333-08600-00

—

$3.20

In stock

30

COVER, UPPER 1

(434-23121-01-93)

1
Out of stock

31

COVER, UPPER 2

(434-23131-01-93)

1
Out of stock

32

GASKET

(434-23163-00-00)

1
Out of stock

33

BOLT (661)

97013-06012-00

—

$4.71

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

CLAMP, HOSE

(90460-54061-00)

1
Out of stock
