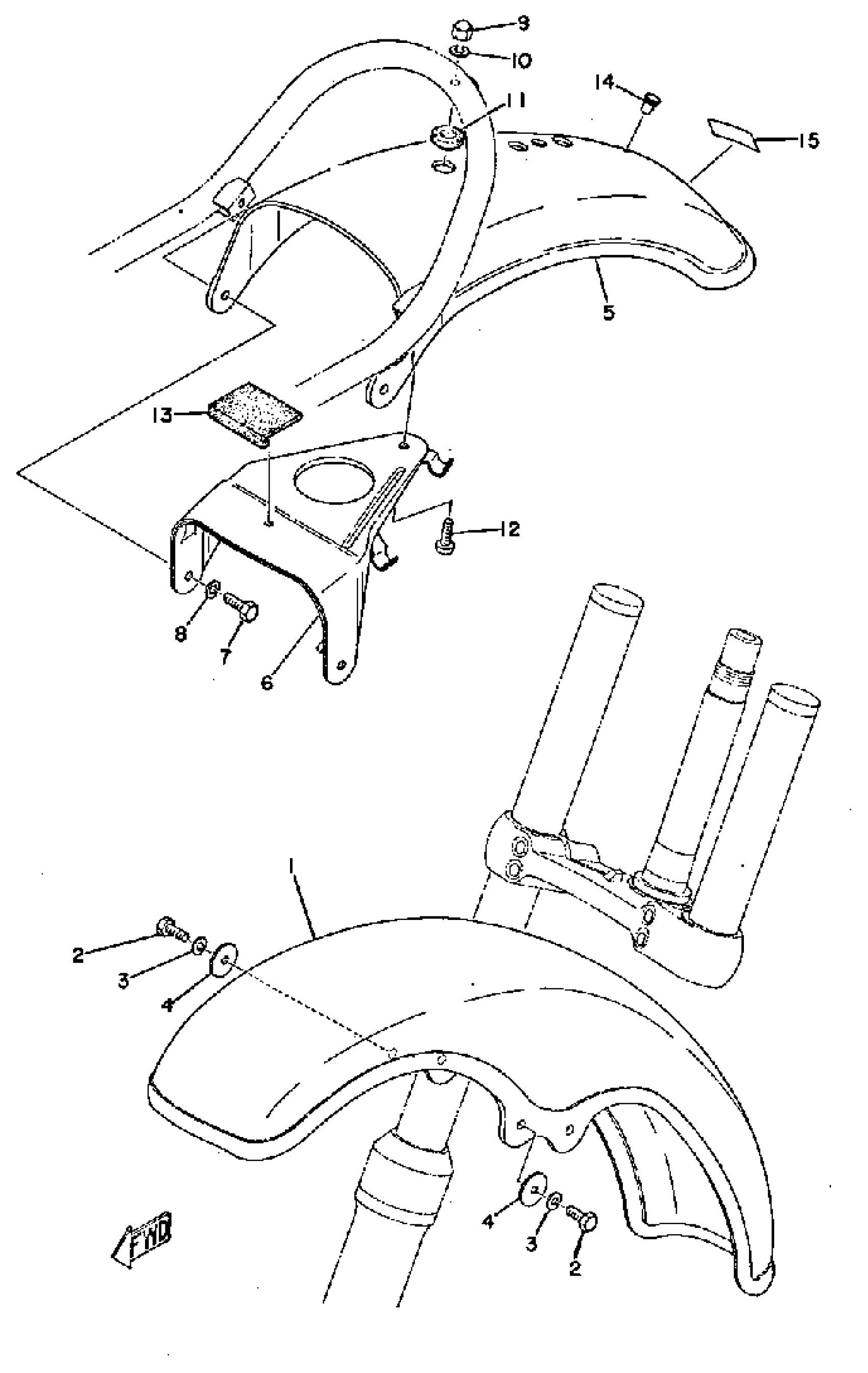

Yamaha TY250A (TY250) 1974 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

434-21511-01-36

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

FENDER, REAR

493-21611-00-36

Unavailable

6

BRACKET, FENDER

(434-21617-00-00)

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER, SPRING

92995-06100-00

Unavailable

9

NUT (J17)

95380-06800-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

DAMPER, FENDER

322-21541-00-00

$7.99

12

SCREW, PAN

98507-06014-00

$8.49

13

DAMPER 1

(434-21638-00-00)

Unavailable

14

PLUG(1NL)

90338-07180-00

$7.49

15

LABEL, SAFETY

(367-21659-00-00)

Unavailable
