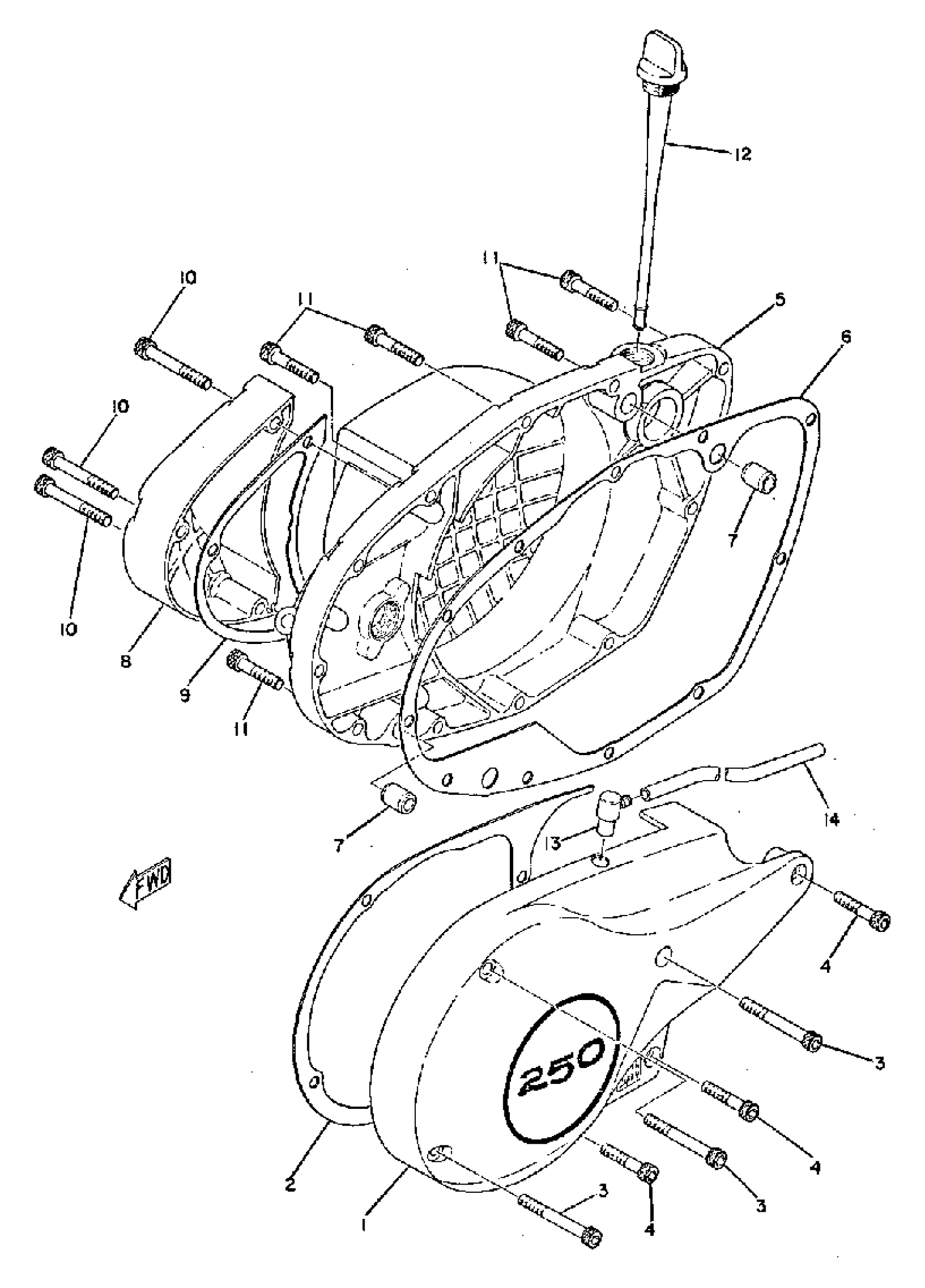

Yamaha TY250A (TY250) 1974 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

(434-15411-02-00)

Unavailable

2

GASKET, CRANKCASE COVER

434-15451-10-00

$21.99

3

BOLT,SOCKET

91317-06050-00

$3.88

4

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

5

COVER, CRANKCASE 3

(434-15431-01-00)

Unavailable

6

GASKET, CRANKCASE COVER

434-15461-10-00

Unavailable

7

PIN, DOWEL

99530-12016-00

$4.89

8

COVER, OIL PUMP

(434-15416-00-00)

Unavailable

9

GASKET, O/PMP CVR 1

434-15456-00-00

Unavailable

10

BOLT,SOCKET

91317-06045-00

$4.99

11

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

12

PLUG, OIL

322-15363-00-00

Unavailable

13

BREATHER

583-15371-00-00

$6.99

14

HOSE (395-14197-00)

90446-07094-00

Unavailable
