- TY250A (TY250) 1974
CRANK-PISTON

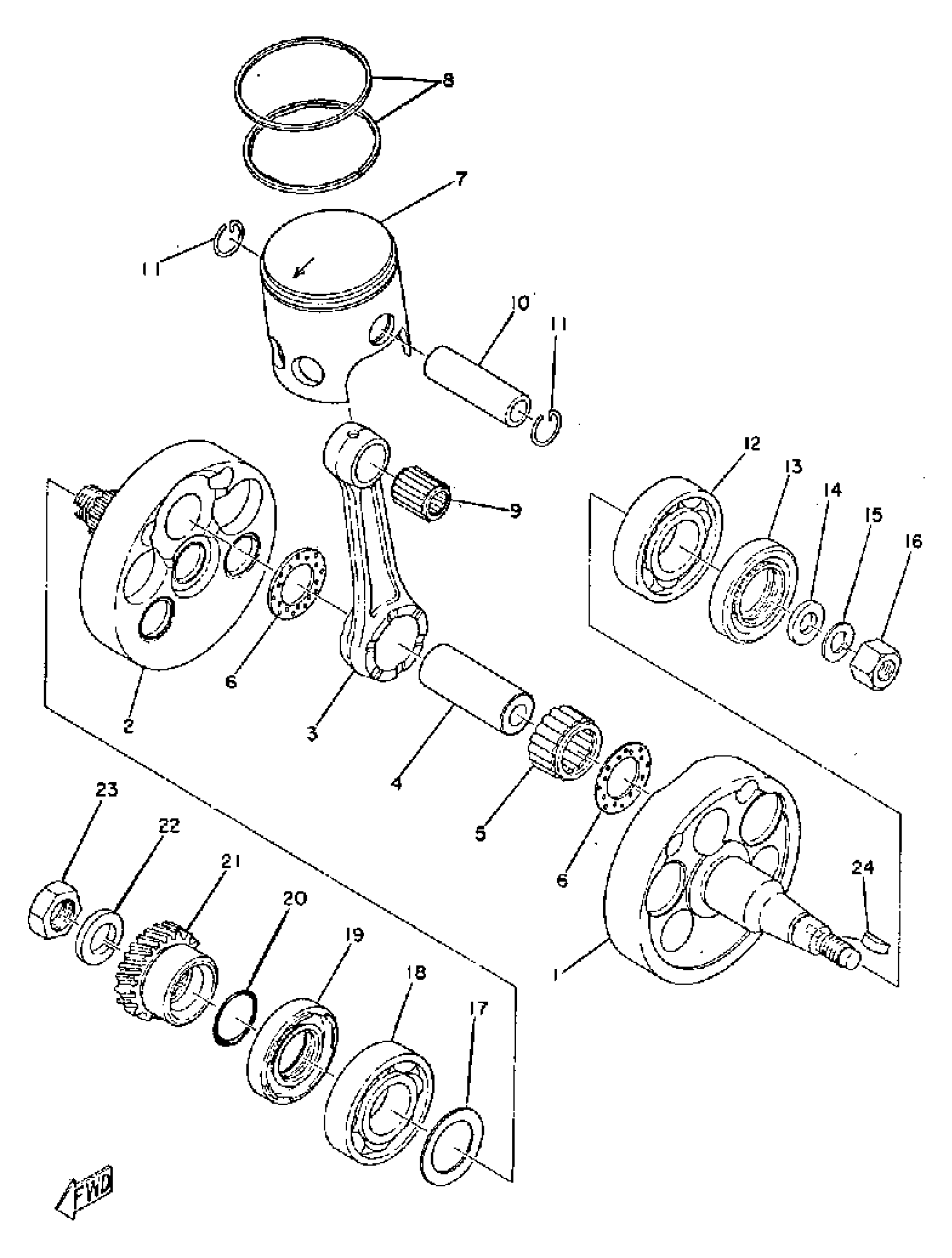

Yamaha TY250A (TY250) 1974 CRANK-PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(434-11400-01-00)
Unavailable
1
CRANK 1
(434-11412-01-00)
Unavailable
2
CRANK 2
(434-11422-01-00)
Unavailable
3
. ROD, CONNECTING
510-11651-00-00
Unavailable
5
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
7
PISTON STD (.96MM STD) (311-11631-00-96)
438-11631-01-96
Unavailable
7
PISTON 1 O/S 0.25 (0.25MM 1ST O.S) (438-11635-02)
438-11635-01-00
Unavailable
7
PISTON 2 O/S 0.50 (0.50MM 2ND O.S) (438-11636-02)
438-11636-01-00
Unavailable
7
PISTON 3 O/S 0.75
438-11637-01-00
Unavailable
7
PISTON 4 O/S 1.00
438-11638-01-00
Unavailable
8
PISTON RINGSET STD
434-11610-00-00
Unavailable
8
PISTON RINGSET 1ST
434-11610-10-00
Unavailable
8
PISTON RINGSET 2ND
434-11610-20-00
Unavailable
8
PISTON RINGSET 3RD
434-11610-30-00
Unavailable
8
PISTON RINGSET 4TH
434-11610-40-00
Unavailable
9
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
Unavailable
10
PIN, PISTON
214-11633-00-00
Unavailable
11
CLIP 6041163400
93450-20026-00
Unavailable
12
BEARING (5X5)
93306-20627-00
Unavailable
13
OIL SEAL(38V)
93103-30150-00
Unavailable
14
WASHER (492)
90201-12535-00
Unavailable
15
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
16
NUT(55K)
90170-12347-00
Unavailable
17
. SHIM, CRANK 4 (25-44-03)
156-11564-00-03
Unavailable
17
. SHIM, CRANK 4 (25-44-05)
156-11564-00-04
Unavailable
17
. SHIM, CRANK 4
156-11564-00-06
Unavailable
18
BEARING (5X5)
93306-20627-00
Unavailable
19
OIL SEAL (434)
93103-40091-00
Unavailable
20
O-RING (437)
93210-24235-00
Unavailable
21
GEAR, PRI DRIVE
(434-16111-00-00)
Unavailable
22
WASHER(N15)
92907-18100-00
Unavailable
23
NUT HEXAGON 363115550000
90170-18086-00
Unavailable
24
KEY, WOODRUFF
90280-05001-00
Unavailable
