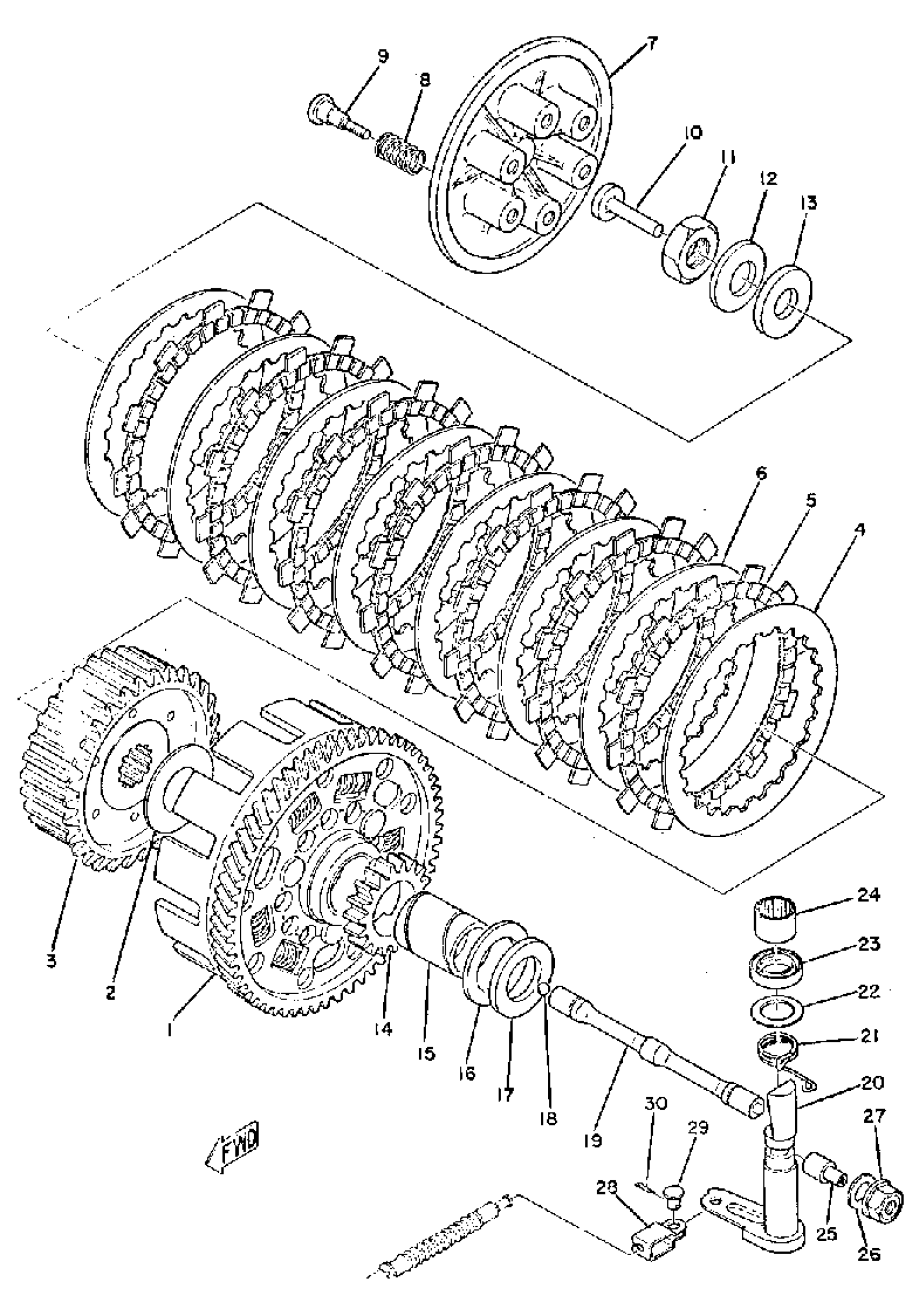

Yamaha TY250A (TY250) 1974 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

(434-16150-00-00)

Unavailable

1

CLUTCH ASSEMBLY

(434-16301-00-00)

Unavailable

2

PLATE, THRUST (2)

170-16164-00-00

$9.99

3

BOSS, CLUTCH

(214-16371-02-00)

Unavailable

4

. PLATE, CLUTCH 1

214-16324-00-00

Unavailable

5

PLATE, FRICTION

5Y1-16331-01-00

$29.99

6

PLATE, CLUTCH 2

371-16325-10-00

Unavailable

7

. PLATE, PRESSURE 1

214-16351-00-00

Unavailable

8

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

9

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

10

ROD, PUSH

174-16356-00-00

$20.99

11

NUT

90170-18089-00

Unavailable

12

SPRING

214-16119-00-00

Unavailable

13

WASHER (6E5)

92990-18200-00

Unavailable

14

GEAR, KICK PINION

(438-15631-00-00)

Unavailable

15

SPACER 1

(214-16181-00-00)

Unavailable

16

PLATE, THRUST 1

(364-16154-00-00)

Unavailable

17

PLATE, THRUST

363-16154-00-00

Unavailable

18

BALL

93505-16006-00

Unavailable

19

ROD, PUSH 1

(434-16356-00-00)

Unavailable

20

AXLE, PUSH LEVER

434-16382-01-00

Unavailable

21

SPRING, TORSION

(90508-12131-00)

Unavailable

22

WASHER PLATE 168217580000

90201-18262-00

Unavailable

23

OIL SEAL (17X28X6-101)

93102-17004-00

Unavailable

24

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

Unavailable

25

SCREW, ADJUSTING

364-16343-00-00

Unavailable

26

GASKET (3JD1)

90430-12207-00

Unavailable

27

NUT, CLUTCH ADJUSTING

583-16344-00-00

Unavailable

28

JOINT

214-16389-00-00

Unavailable

29

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

30

. PIN, COTTER

91401-10015-00

Unavailable
