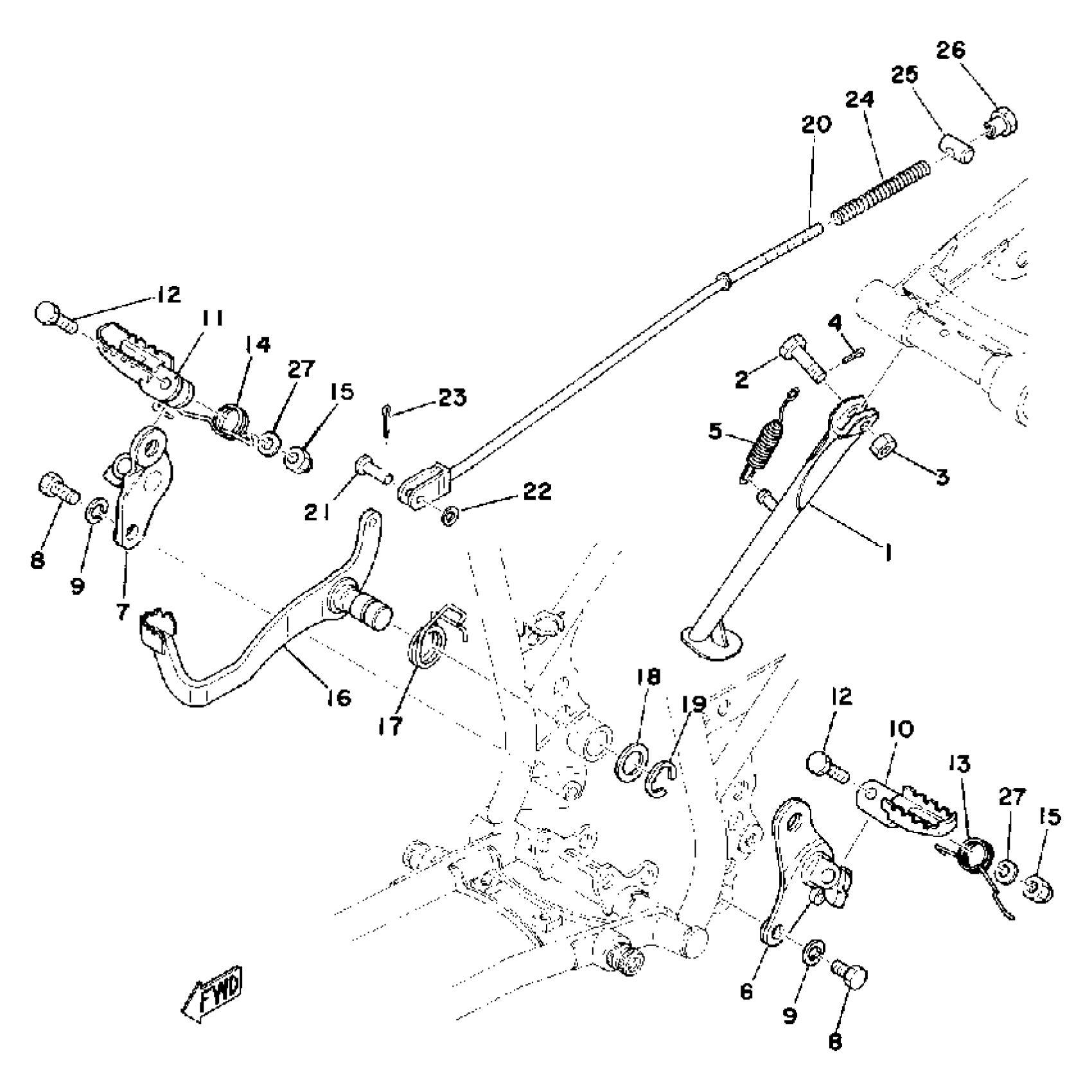

Yamaha TY175C (TY175) 1976 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

493-27311-00-35

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT,CASTLE

90171-10049-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING (434)

90507-29008-00

$28.99

6

BRACKET, FOOTREST 1

(525-27412-00-00)

Unavailable

7

BRACKET, FOOTREST 2

(525-27422-00-00)

Unavailable

8

BOLT, HEXAGON

97013-08016-00

$1.01

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

FOOTREST 1

434-27411-00-35

Unavailable

11

FOOTREST 2

434-27421-00-35

Unavailable

12

BOLT

90101-08250-00

Unavailable

13

SPRING, TORSION

90508-26266-00

Unavailable

14

SPRING, TORSION

90508-26267-00

Unavailable

15

NUT, U

95617-08100-00

$9.49

16

PEDAL, BRAKE

(525-27211-00-91)

Unavailable

17

SPRING, TORSION

90508-35264-00

Unavailable

18

WASHER

90201-17256-00

Unavailable

19

CIRCLIP (E-12)

93430-12022-00

Unavailable

20

ROD, BRAKE

276-27231-00-00

Unavailable

21

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

SPRING, (180-27236-00)

90501-10245-00

Unavailable

25

PIN 1562723700

90249-12008-00

Unavailable

26

NUT (25K)

90179-06411-00

Unavailable

27

WASHER (8A7)

90201-08452-00

Unavailable
