1976 Yamaha TY175 (TY175C) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1976 Yamaha TY175 (TY175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

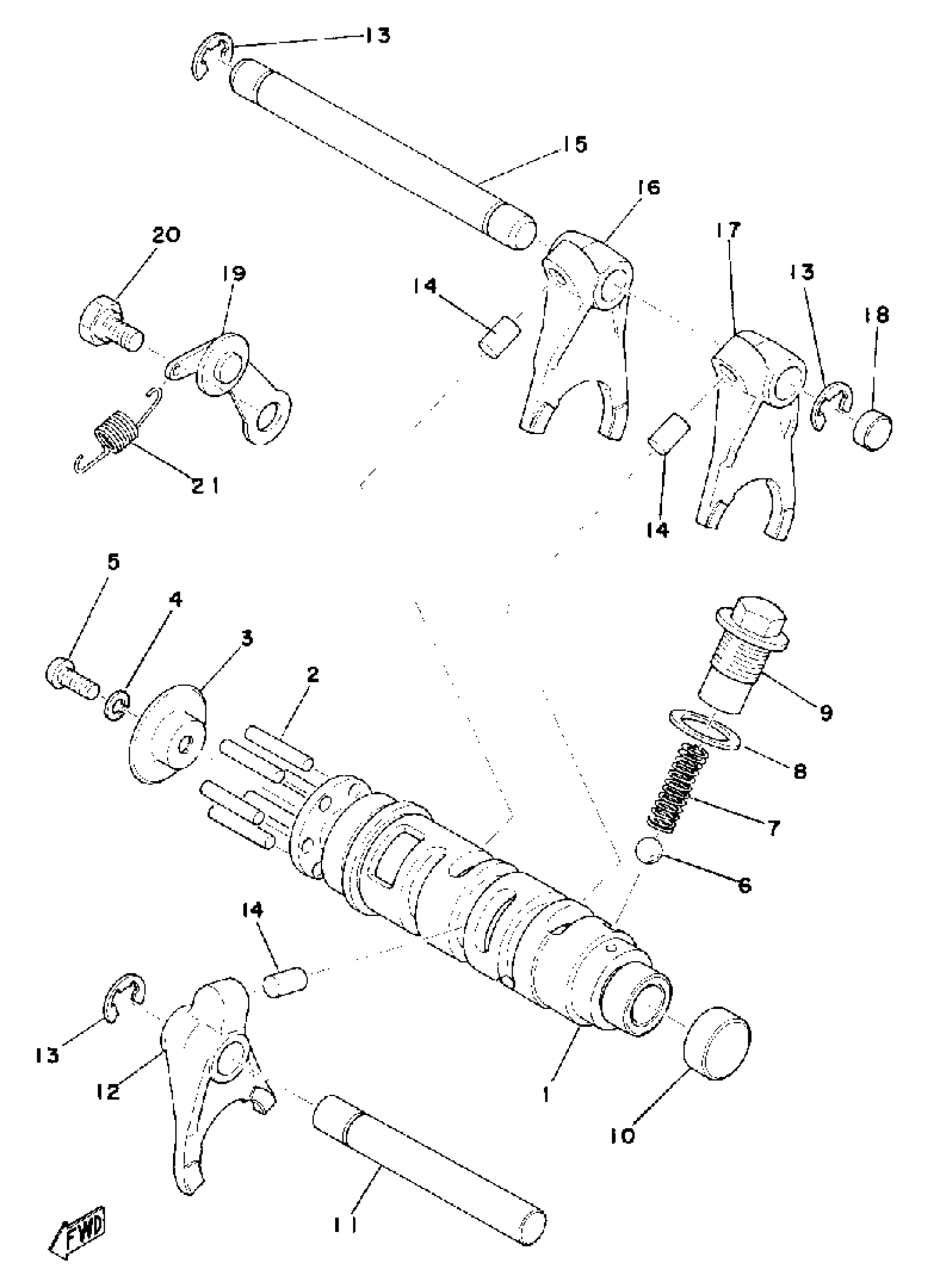

1976 Yamaha TY175 (TY175C) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

1G8-18540-00-00

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

PLATE, SIDE 1

525-18561-00-00

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

6

BALL

93505-16006-00

1

$2.22

In stock

7

SPRING, COMPRESION

90501-12750-00

1
Out of stock

8

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

9

BOLT

90109-14385-00

1

$13.66

In stock

10

PLUG 363174810000

90338-20023-00

1

$5.14

In stock

11

BAR, SHIFT FORK GUIDE 1

(257-18531-00-00)

1
Out of stock

12

FORK, SHIFT 2

(525-18512-00-00)

1
Out of stock

13

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

14

PIN STRAIGHT 257185520000

90250-06013-00

1
Out of stock

15

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

—
Out of stock

16

FORK, SHIFT 3

525-18513-00-00

1
Out of stock

17

FORK, SHIFT 1

(525-18511-00-00)

1
Out of stock

18

PLUG, SPECIAL SHAPE

90338-10063-00

1
Out of stock

19

STOPPER LEVER ASSEMBLY 000

(537-18140-00-00)

1
Out of stock

20

BOLT

90109-06239-00

—

$5.77

In stock

21

SPRING, TENSION (260)

90506-09112-00

—
Out of stock
