1976 Yamaha TY175 (TY175C) Clutch Diagram

← All diagrams

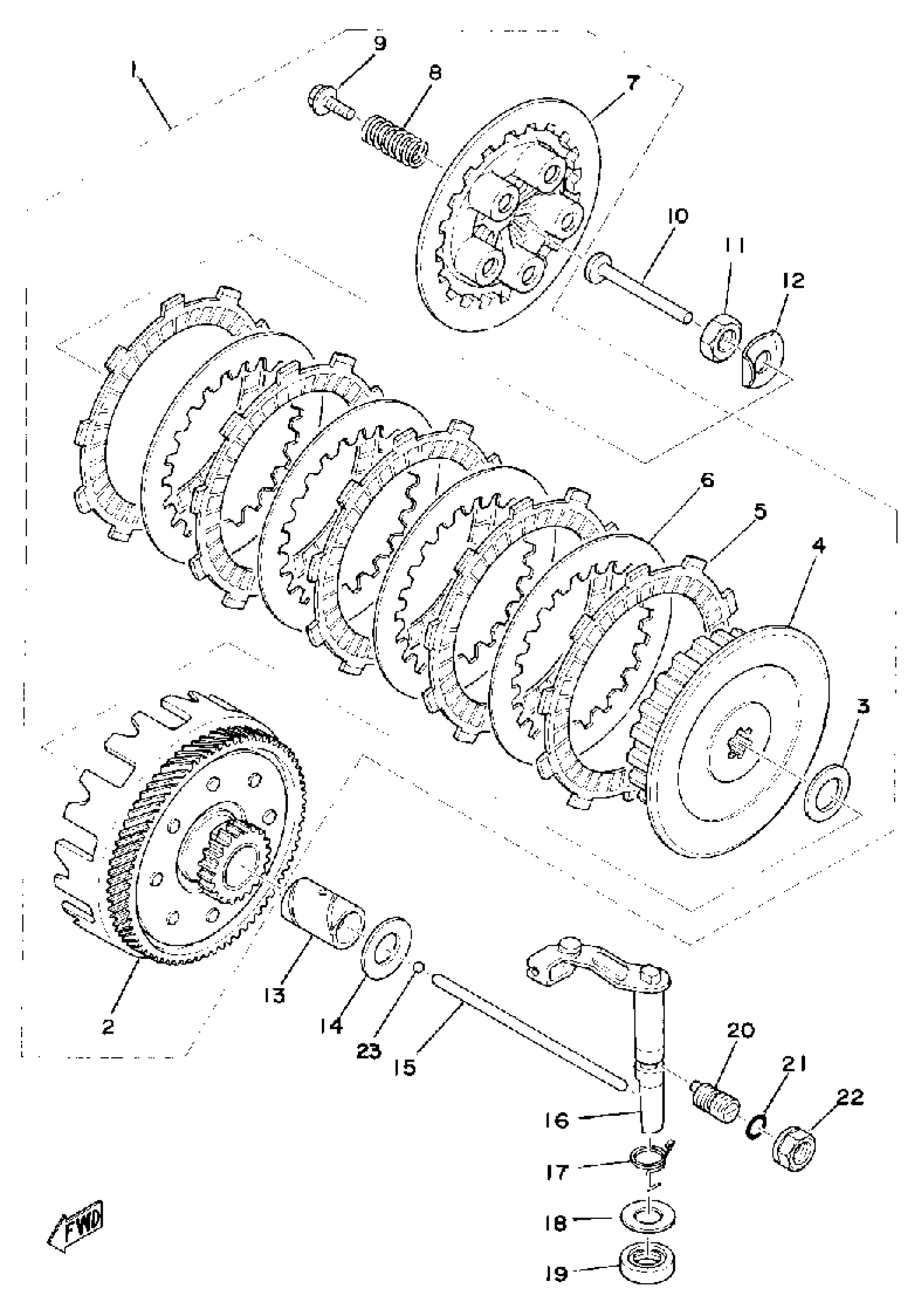

Find the part on the Clutch diagram for your 1976 Yamaha TY175 (TY175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TY175 (TY175C) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

2

. PRI DRIVEN GEAR (74T)

525-16150-00-00

1
Out of stock

3

PLATE, THRUST

122-16164-00-00

1

$7.08

In stock

4

. BOSS, CLUTCH

525-16371-02-00

1
Out of stock

5

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

6

PLATE, CLUTCH 2

137-16325-80-00

1
Out of stock

7

. PLATE, PRESSURE 1

525-16351-00-00

1
Out of stock

8

1

$6.17

In stock

9

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

10

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

11

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

12

WASHER, LOCK (21T)

90215-12211-00

1

$6.17

In stock

13

SPACER (525)

90560-17147-00

—

$25.35

In stock

14

WASHER, PLATE(2YY)

90201-180P2-00

1
Out of stock

15

ROD, PUSH 2

1W1-16357-00-00

1
Out of stock

15

BALL

93503-16003-00

—

$2.14

In stock

15

PUSH ROD ASSEMBLY

99999-00910-00

1
Out of stock

16

PUSH LEVER ASSEMBLY

525-16380-00-00

1
Out of stock

17

SPRING, TORSION

90508-14132-00

1
Out of stock

18

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

19

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

20

SCREW

90149-12097-00

1
Out of stock

21

O-RING (611)

93210-10096-00

—

$3.11

In stock

22

NUT

90179-12197-00

1
Out of stock

23

BALL

93503-16003-00

—

$2.14

In stock
