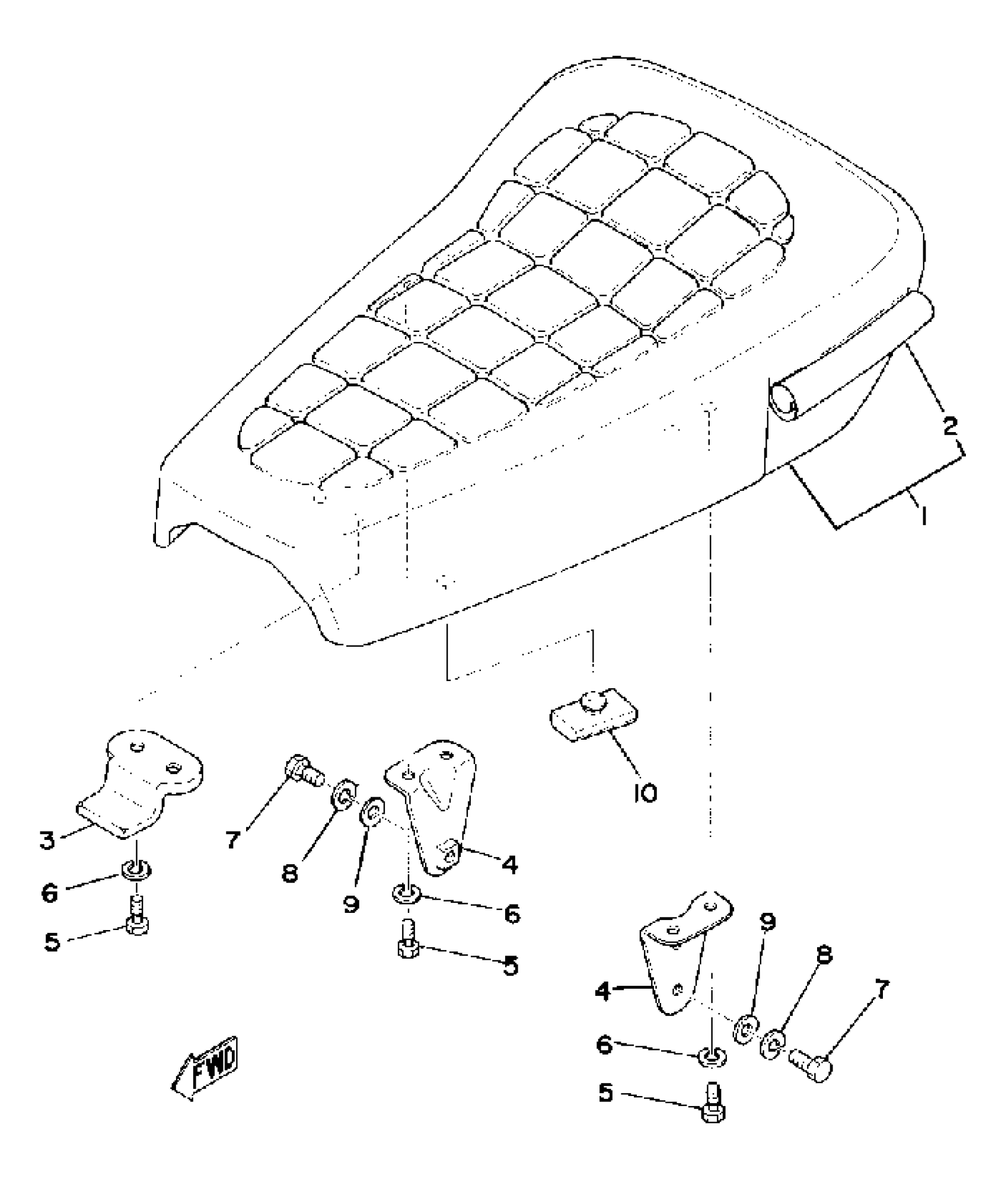

Yamaha TY175C (TY175) 1976 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSEMBLY

525-W2471-00-00

Unavailable

2

COVER, SINGLE SEAT

(525-24711-00-00)

Unavailable

3

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

4

BRACKET, SEAT

509-24738-01-00

Unavailable

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, SPRING

92995-06100-00

Unavailable

7

BOLT (661)

97013-06012-00

$5.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

DAMPER, SEAT

509-24724-00-00

$10.99
