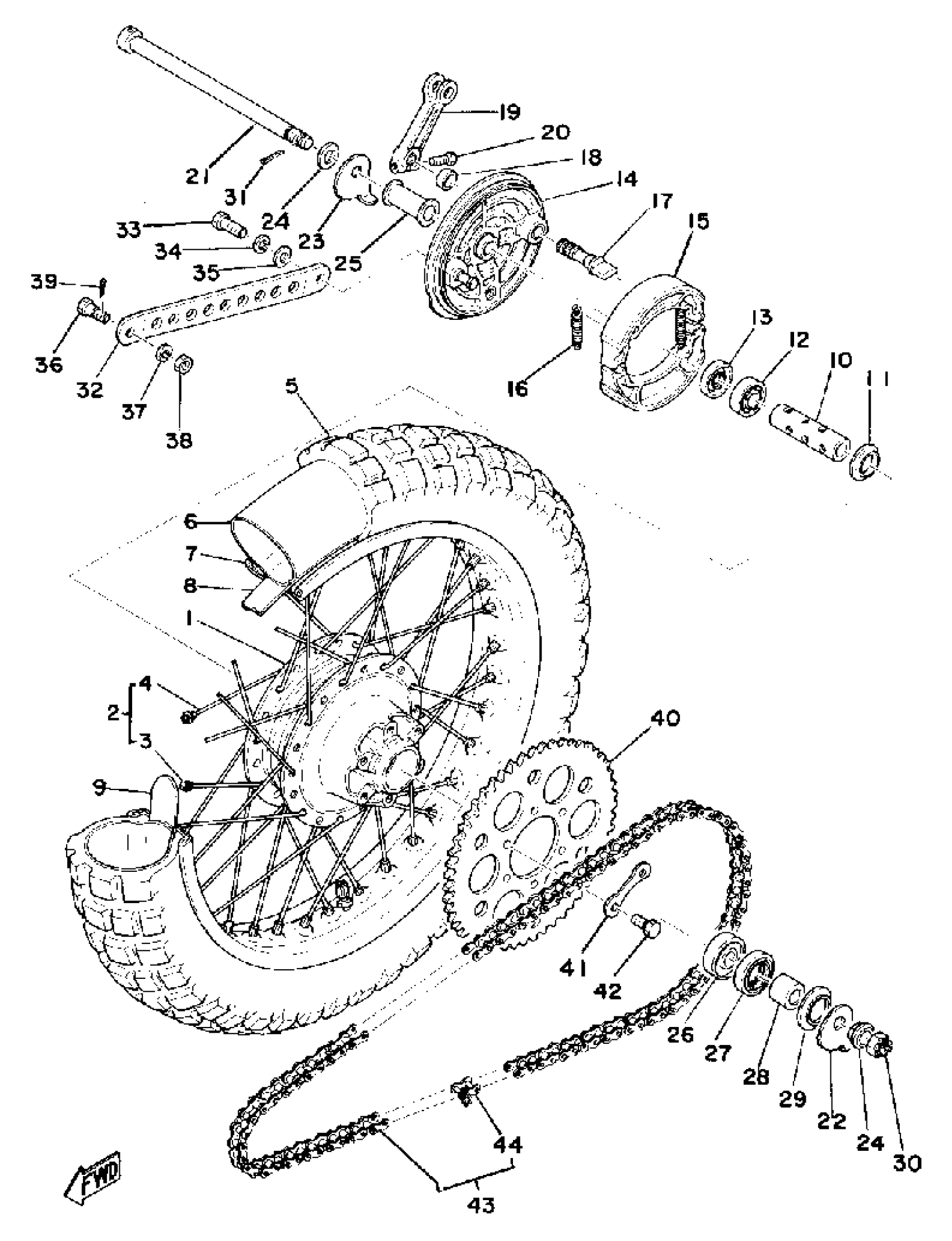

Yamaha TY175C (TY175) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(434-25311-01-00)

Unavailable

2

SPOKE SET, REAR

434-25304-00-00

Unavailable

3

SPOKE SET, INNER 2

(434-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(434-25397-90-00)

Unavailable

5

400X18 DUN TRI UNI

(94140-18317-00)

Unavailable

5

400X18 DUN T-UNIET

(94140-18326-00)

Unavailable

6

TUBE (5A8)

94212-18188-00

$35.99

7

RIM 1.85X18

(94418-18154-00)

Unavailable

8

BAND, RIM (2J4)

94340-18086-00

$17.99

9

SPACER, BEAD

1T2-25394-00-00

Unavailable

10

SPACER

90560-15314-00

Unavailable

11

FLANGE, SPACER

146-25115-00-00

$6.99

12

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

13

OIL SEAL (22X35X5)

93104-22018-00

$11.49

14

PLATE, BRAKE SHOE

(434-25321-01-00)

Unavailable

15

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

16

SPRING (5T9)

90506-17328-00

Unavailable

17

CAMSHAFT

2RH-25351-00-00

Unavailable

18

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

19

LEVER, CAMSHAFT

434-25355-01-00

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

AXLE, WHEEL

(525-25381-00-00)

Unavailable

22

PULLER, CHAIN 1

(525-25388-00-00)

Unavailable

23

PULLER, CHAIN 2

(525-25389-00-00)

Unavailable

24

WASHER (525)

90201-15238-00

Unavailable

25

COLLAR

90387-15490-00

Unavailable

26

BEARING

93306-30212-00

Unavailable

27

SEAL,OIL

93106-26005-00

Unavailable

28

COLLAR

(90387-15489-00)

Unavailable

29

COVER, DUST

401-25367-00-00

Unavailable

30

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

31

PIN, COTTER

91490-30030-00

Unavailable

32

BAR, TENSION

434-25371-01-00

Unavailable

33

BOLT

(90101-10254-00)

Unavailable

34

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

35

WASHER, PLATE

92990-10600-00

Unavailable

36

BOLT 1092537300

90109-08063-00

Unavailable

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

. NUT

95380-08700-00

Unavailable

39

PIN, COTTER

91490-25020-00

Unavailable

40

SPROCKET, DRIVN 51T

525-25451-00-00

Unavailable

41

WASHER, LOCK

22W-25412-00-00

Unavailable

42

BOLT, FITTING

90109-08377-00

Unavailable

43

SET, CHAIN

94A40-07114-00

Unavailable

44

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable
