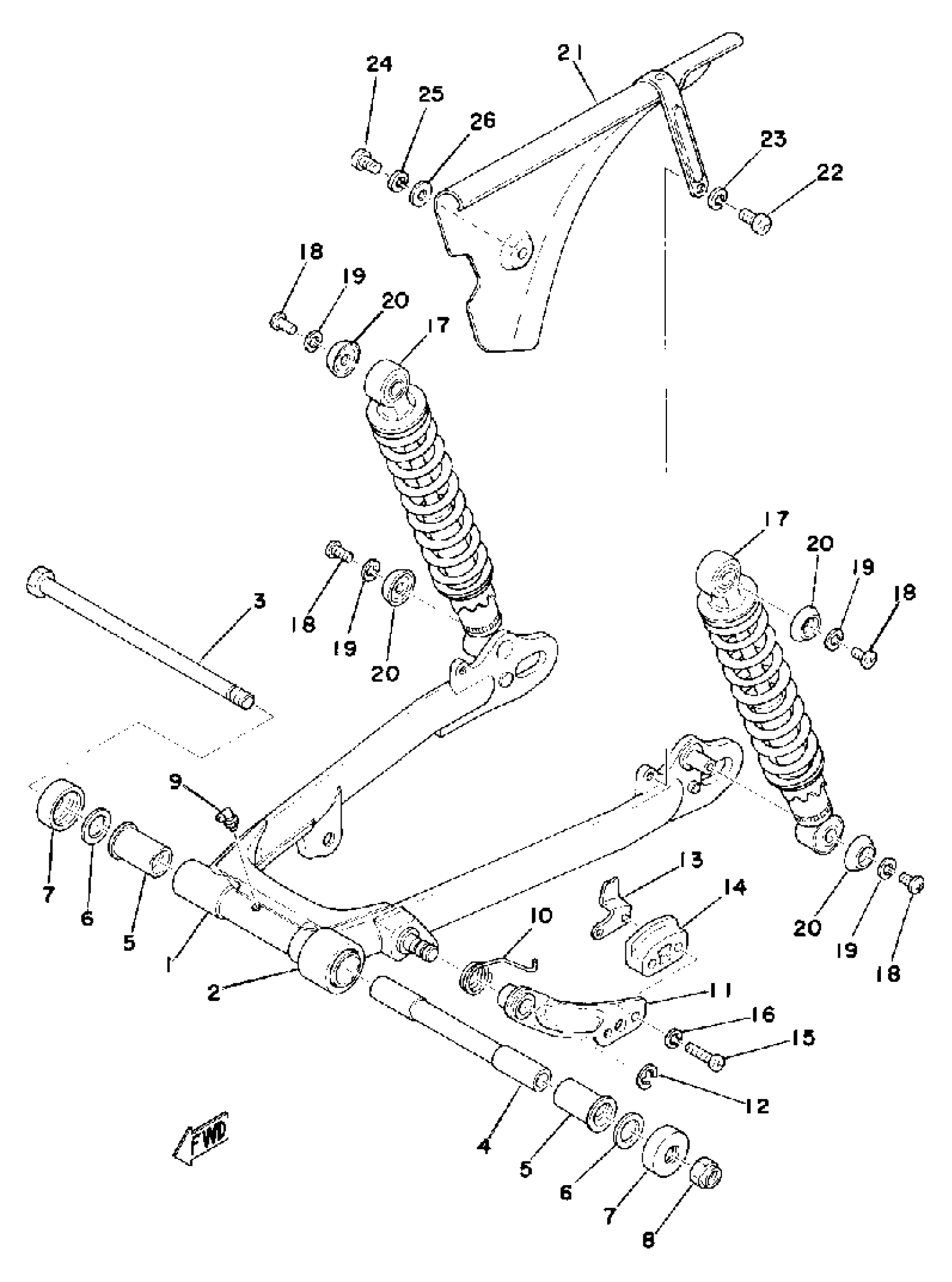

Yamaha TY175C (TY175) 1976 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(525-22110-00-35)

Unavailable

2

SEAL, GUARD

(437-22151-00-00)

Unavailable

3

SHAFT, PIVOT

525-22141-00-00

Unavailable

4

BUSHING (401-22124-00)

90389-12002-00

Unavailable

5

BUSHING (401-22123-00)

90386-18028-00

$26.99

6

SHIM

401-22127-00-00

$7.99

7

COVER, THRUST 1

401-22128-01-00

$29.99

8

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

9

NIPPLE, GREASE

93700-06005-00

$12.49

10

SPRING, TORSION

90508-32140-00

Unavailable

11

ARM, TENSIONER

(434-22179-00-93)

Unavailable

12

CIRCLIP (137)

93430-10015-00

$9.49

13

GUARD, CHAIN

434-22153-00-00

Unavailable

14

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

15

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

SHK/ABS ASSEMBLY, REAR

(525-22210-00-00)

Unavailable

18

SCREW, BIND(J45)

98980-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, REAR CUSHION (434)

90207-06009-00

Unavailable

21

CASE, CHAIN

(525-22311-01-35)

Unavailable

22

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

WASHER, PLATE

90201-06380-00

Unavailable
