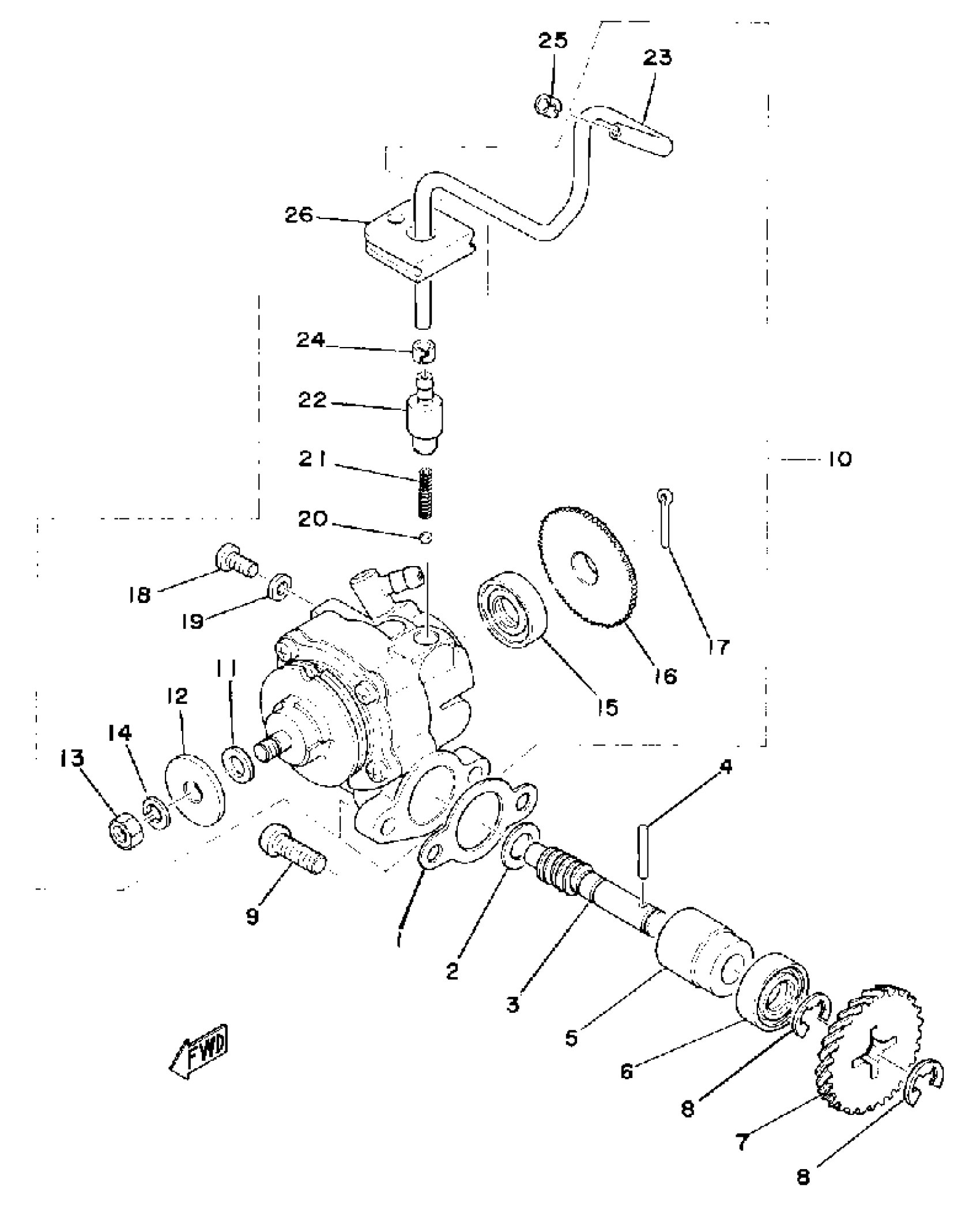

Yamaha TY175C (TY175) 1976 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

3

SHAFT, WORM

(525-13175-01-00)

Unavailable

4

PIN,DOWEL (137)

93603-22028-00

$3.76

5

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

6

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

7

GEAR, PUMP DRIVE

353-13178-00-00

Unavailable

8

CIRCLIP(2R6)

99001-08600-00

$8.49

9

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

10

OIL PUMP ASSY

525-13101-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-05

$6.99

11

SHIM,PLUNGER

137-13137-00-10

$7.99

11

SHIM, PLUNGER

(137-13137-00-30)

Unavailable

12

PLATE, ADJUSTING

137-13138-01-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

15

OIL SEAL (J10)

93101-10090-00

Unavailable

16

PLATE, STARTER

(137-13128-00-00)

Unavailable

17

. PIN, COTTER

91401-12018-00

Unavailable

18

SCREW, BIND

98980-04008-00

Unavailable

19

GASKET 137131870000

90430-04004-00

Unavailable

20

BALL

93505-32002-00

Unavailable

21

SPRING (278-13169-00)

90501-02018-00

Unavailable

22

NOZZLE

402-13552-00-00

Unavailable

23

HOSE (L200)

90445-05N13-00

Unavailable

24

CLIP (214-13164-00)

90468-02033-00

Unavailable

25

CLIP (214-13164-00)

90468-02033-00

Unavailable

26

HOLDER OIL PIPE

525-13174-01-00

Unavailable
