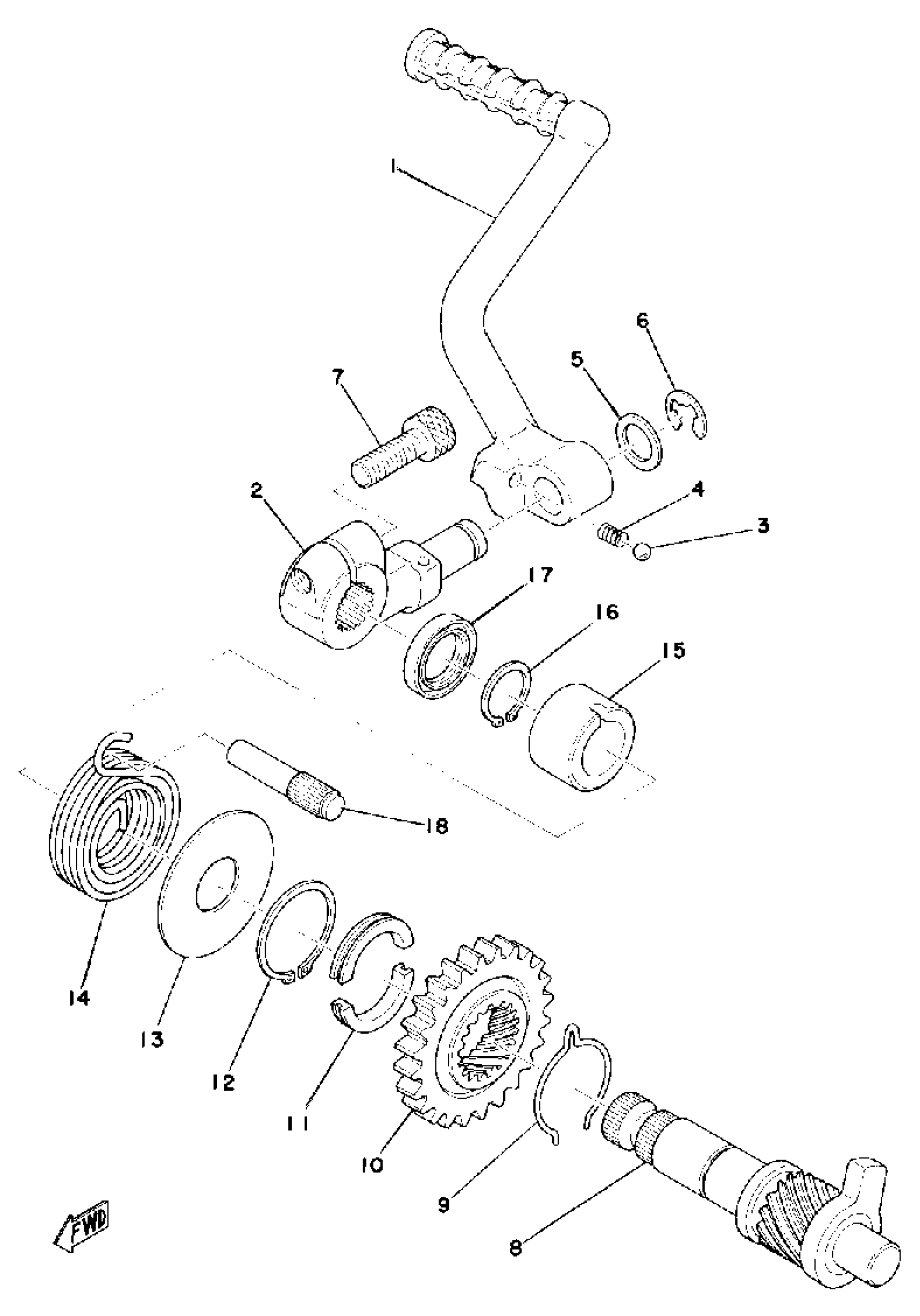

Yamaha TY175C (TY175) 1976 KICK STARTER Diagram

#

Description
Price

1

. UNAVAILABLE IN PRICE BOOK

525-15611-01-93

Unavailable

1

. UNAVAILABLE IN PRICE BOOK

525-15621-01-93

Unavailable

1

CRANK KICK (525-15621-00-91)

99999-00861-00

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

525-15611-01-93

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

525-15621-01-93

Unavailable

2

CRANK KICK (525-15621-00-91)

99999-00861-00

Unavailable

3

BALL (12R)

93507-32031-00

$4.73

4

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

5

WASHER, PLATE (525)

90201-12541-00

$7.49

6

CIRCLIP (137)

93430-08007-00

$8.49

7

BOLT, SOCKET

91317-08025-00

$8.49

8

KICK AXLE ASSEMBLY

525-15660-01-00

Unavailable

9

CLIP 315156870000

90468-26048-00

$8.49

10

GEAR, KICK

315-15641-00-00

Unavailable

11

HOLDER, KICK GEAR

248-15654-00-00

$8.99

12

CIRCLIP(4A6)

99009-30400-00

Unavailable

13

COVER, SPRING

401-15676-00-00

Unavailable

14

SPRING TORSION 401156650000

90508-26041-00

Unavailable

15

SPACER

401-15666-00-00

Unavailable

16

CIRCLIP(1EY)

99009-17400-00

Unavailable

17

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

18

STOPPER, KICK SPRING

257-15668-00-00

Unavailable
