1976 Yamaha TY175 (TY175C) Front Wheel Diagram

← All diagrams

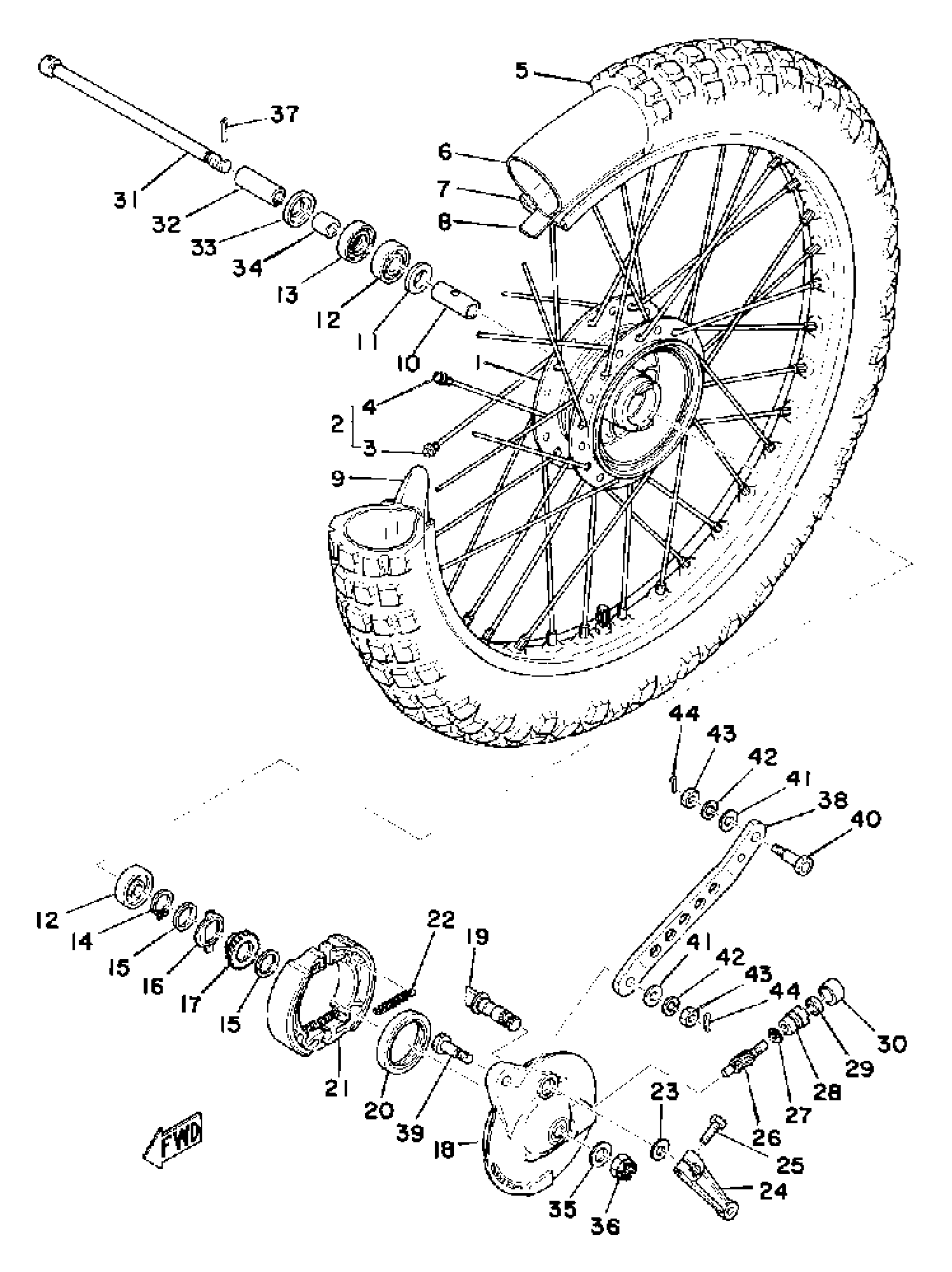

Find the part on the Front Wheel diagram for your 1976 Yamaha TY175 (TY175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TY175 (TY175C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

345-25104-01-00

1
Out of stock

3

SPOKE SET, INNER 1

(345-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(345-25197-90-00)

1
Out of stock

5

275X21 DUN TU ET

(94127-21151-00)

1
Out of stock

5

FRONT TIRE

(94127-21325-00)

1
Out of stock

6

TUBE (2.75-21)(2YY)

94227-21293-00

1
Out of stock

7

RIM 1.40X21

(94414-21155-00)

1
Out of stock

8

BAND, RIM

(94327-21024-00)

1
Out of stock

9

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

10

SPACER

90560-12138-00

—

$12.83

In stock

11

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

12

BEARING

93306-30102-00

1
Out of stock

13

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

14

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

15

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

16

CLUTCH, METER

183-25149-00-00

—
Out of stock

17

GEAR, DRIVE

37A-25135-00-00

1
Out of stock

18

PLATE, BRAKE SHOE

(434-25121-02-00)

1
Out of stock

19

CAMSHAFT

(434-25151-00-00)

1
Out of stock

20

SEAL,OIL

93105-47007-00

—
Out of stock

21

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

22

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

23

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

24

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

1
Out of stock

25

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

26

GEAR, METER

37A-25138-00-00

1
Out of stock

27

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

28

BUSHING

109-25136-00-00

—

$8.78

In stock

29

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

30

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

31

SHAFT, WHEEL

401-25181-01-00

—

$58.12

In stock

32

COLLAR

90387-12100-00

1
Out of stock

33

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

34

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

35

WASHER, PLATE(663)

92990-12600-00

—

$6.68

In stock

36

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

37

PIN, COTTER

91490-30030-00

—

$7.15

In stock

38

BAR, TENSION

(434-25171-01-00)

1
Out of stock

39

BOLT

(90109-08234-00)

1
Out of stock

40

BOLT

(90109-08380-00)

1
Out of stock

41

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

42

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

43

. NUT

95380-08700-00

1

$3.07

In stock

44

PIN, COTTER

91490-20025-00

—

$1.31

In stock
