1976 Yamaha TY175 (TY175C) Front Fork Diagram

← All diagrams

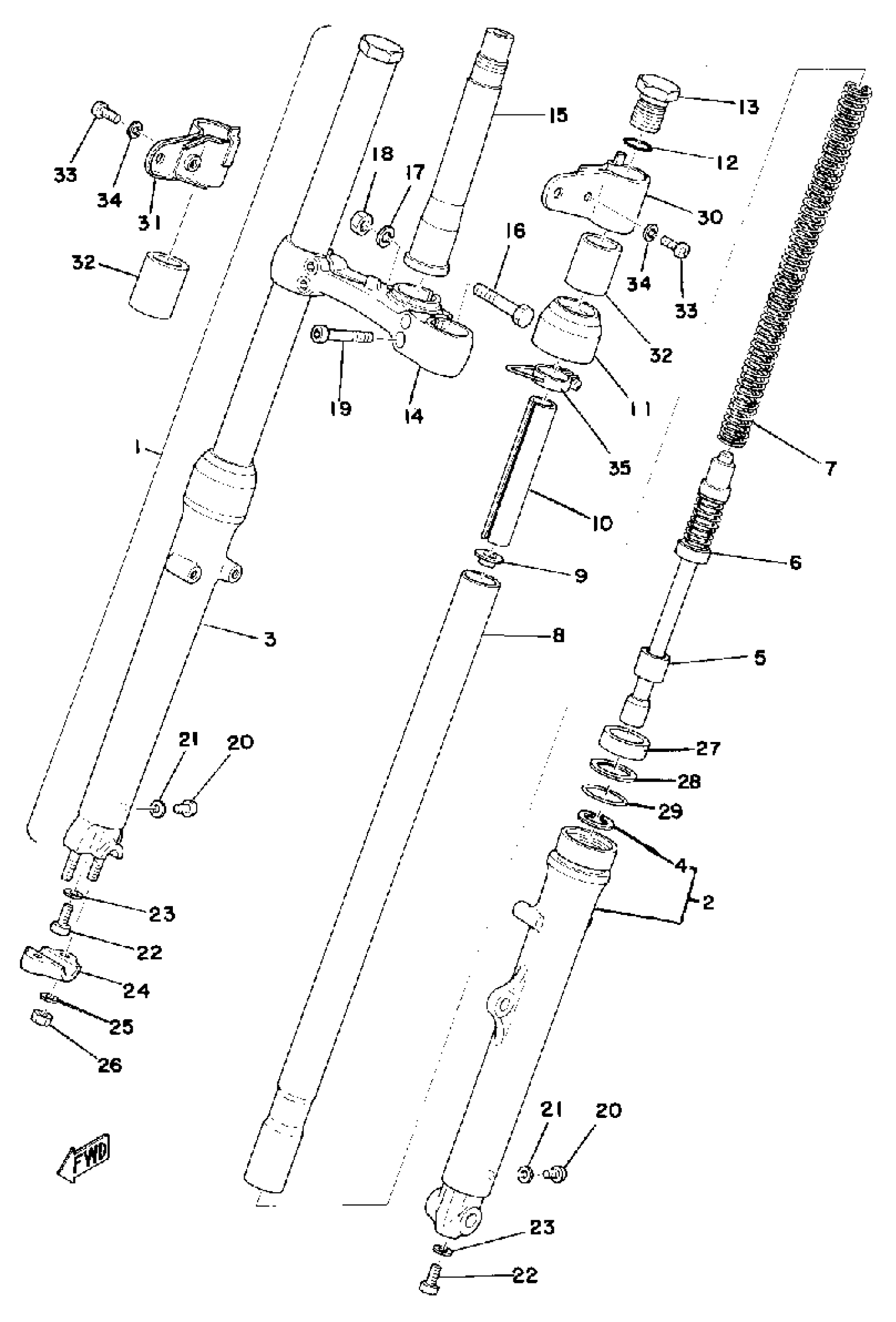

Find the part on the Front Fork diagram for your 1976 Yamaha TY175 (TY175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TY175 (TY175C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(525-23101-01-00)

1
Out of stock

2

TUBE, OUTER 1

(525-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(525-23136-00-00)

1
Out of stock

4

CIRCLIP

(535-23183-01-00)

1
Out of stock

5

. NO LONGER AVAILABLE

535-23171-00-00

1
Out of stock

6

CYLINDER, FRTFRK

(525-23170-00-00)

1
Out of stock

7

SPRING, FRONT FORK

525-23141-01-00

1
Out of stock

8

TUBE, INNER 1

(525-23124-00-00)

1
Out of stock

9

SEAT, SPRING UPPER

(304-23142-50-00)

1
Out of stock

10

SPACER

(315-23118-50-00)

1
Out of stock

11

SEAL, DUST

535-23144-00-00

—

$28.69

In stock

12

PACKING(O-RING)

146-23114-00-00

1
Out of stock

13

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

14

BRACKET, LOWER

(525-23345-00-00)

1
Out of stock

15

SHAFT, STEERING

(516-23341-31-00)

1
Out of stock

16

BOLT 2

(322-23356-00-00)

1
Out of stock

17

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

18

NUT

(322-23357-00-00)

1
Out of stock

19

BOLT 1

(322-23346-00-00)

1
Out of stock

20

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

21

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

22

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

23

GASKET

(214-23158-00-00)

1
Out of stock

24

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

NUT, HEXAGON

(90170-08176-00)

1
Out of stock

27

OIL SEAL

137-23145-01-00

—

$38.06

In stock

28

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock

29

CLIP, OIL SEAL

(315-23156-50-00)

1
Out of stock

30

COVER, UPPER 1

(525-23121-00-93)

1
Out of stock

31

COVER, UPPER 2

(525-23131-00-93)

1
Out of stock

32

GASKET

(525-23163-00-00)

1
Out of stock

33

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

HOLDER, CABLE 1

(525-23318-01-00)

1
Out of stock
