1976 Yamaha TY175 (TY175C) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1976 Yamaha TY175 (TY175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

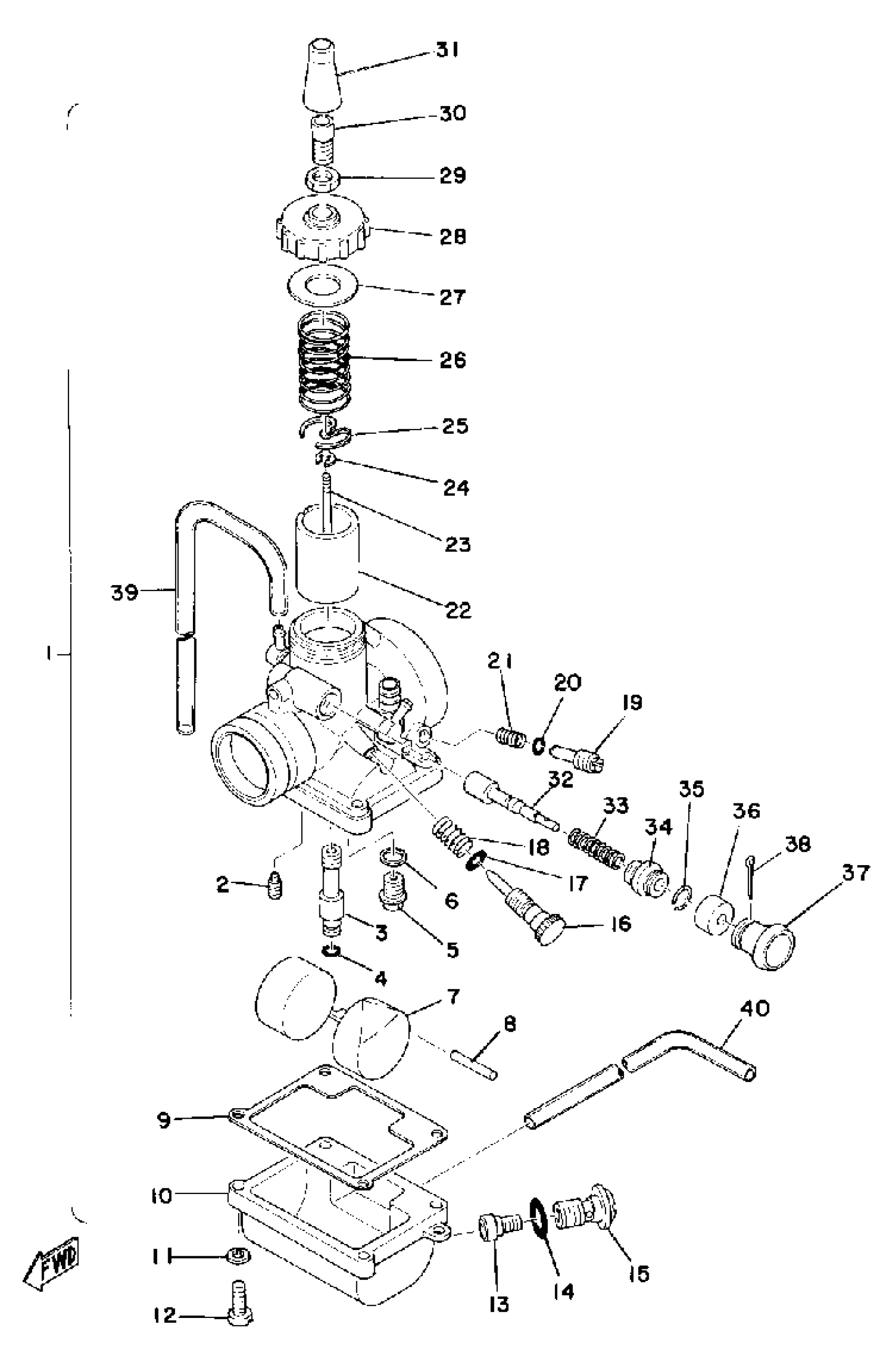

1976 Yamaha TY175 (TY175C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(525-14101-61-00)

1
Out of stock

2

JET, PILOT (# 25)

260-14142-25-00

1
Out of stock

3

NOZZLE, MAIN

(525-14141-30-00)

1
Out of stock

4

O-RING

214-14147-00-00

1
Out of stock

5

VALVE SEAT ASSY

353-14190-18-00

—

$35.85

In stock

6

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

7

FLOAT

(525-14185-00-00)

1
Out of stock

8

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

9

GASKET,FLOAT CHAMBER

304-14184-00-00

1
Out of stock

10

BODY, FLOAT CHMBR 1

(493-14181-00-33)

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

13

JET, MAIN #230

137-14143-46-A1

1
Out of stock

13

JET, MAIN #240

137-14143-48-A1

1
Out of stock

13

JET, MAIN #250

137-14143-50-A1

—
Out of stock

14

O-RING (248)

93220-09001-00

—

$3.98

In stock

15

BOLT, BANJO

(493-14166-00-00)

1
Out of stock

16

. SCREW, THROTTLE

493-14122-00-00

1
Out of stock

17

. O-RING

361-14147-00-00

1
Out of stock

18

. SPRING, THROTTLE STOP

493-14133-00-00

1
Out of stock

19

AIR SCREW SET

10W-14104-00-00

—
Out of stock

20

O-RING (493-CARB.)

354-14147-00-00

—

$13.06

In stock

21

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

22

VALVE, THROTTLE 1

(304-14112-30-00)

1
Out of stock

23

NEEDLE SET

18L-1490J-00-00

—

$24.34

In stock

24

CLIP

3FA-14137-00-00

—

$6.80

In stock

25

. SEAT, SPRING

137-14136-00-00

1
Out of stock

26

SPRING, THROTTLE VALVE

3X3-14131-00-00

—

$12.38

In stock

27

GASKET

193-14126-00-00

—

$5.35

In stock

28

TOP, MIXING CHAMBER

(525-14158-00-33)

1
Out of stock

29

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

30

. SCREW, CABLE ADJUSTING

360-14124-20-00

1
Out of stock

31

CAP

(525-14169-00-00)

1
Out of stock

32

. PLUNGER, STARTER

304-14171-00-00

1
Out of stock

33

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

34

CAP, PLUNGER

152-14174-00-00

—

$28.48

In stock

35

. CLIP, PLUNGER

152-14138-00-00

1
Out of stock

36

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

37

HOLDER

304-14261-00-00

—

$35.95

In stock

38

PIN, COTTER

91490-16020-00

1

$6.23

In stock

39

PIPE, AIRVENT

(313-14197-00-00)

1
Out of stock

40

PIPE

23F-14197-00-00

—

$24.11

In stock
