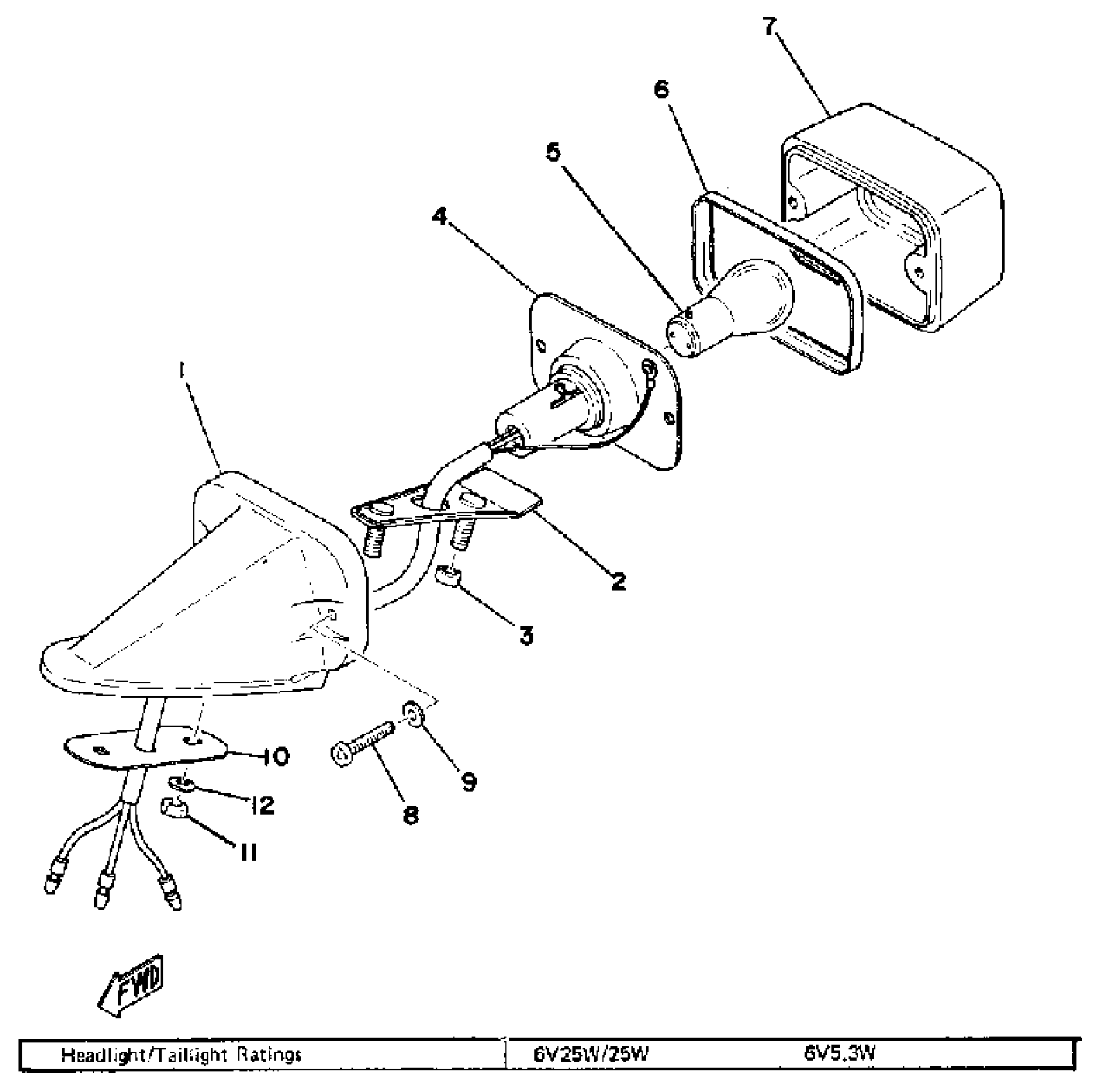

Yamaha TY175B (TY175) 1975 TAIL LAMP Diagram

#

Description

Price

1

TAILLIGHT ASSEMBLY

434-84500-64-00

Unavailable

1

. BRACKET, TAILLIGHT

434-84519-64-00

Unavailable

2

BASE, TAILLIGHT

(434-84511-62-00)

Unavailable

3

COLLAR

(434-84557-60-00)

Unavailable

4

. CORD, TAILLIGHT

434-84517-61-00

Unavailable

5

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

6

RIM,TAILLIGHT

5AU-83323-01-00

Unavailable

7

LENS, TAIL LAMP

434-84521-69-00

Unavailable

8

. SCREW, LENS FITTING

434-84524-61-00

Unavailable

9

WASHER, PLATE 8067717800

90201-05029-00

$8.49

10

WASHER, SPECIAL

(434-84525-01-00)

Unavailable

11

NUT, HEXAGON (663)

95380-05600-00

$8.49

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35
