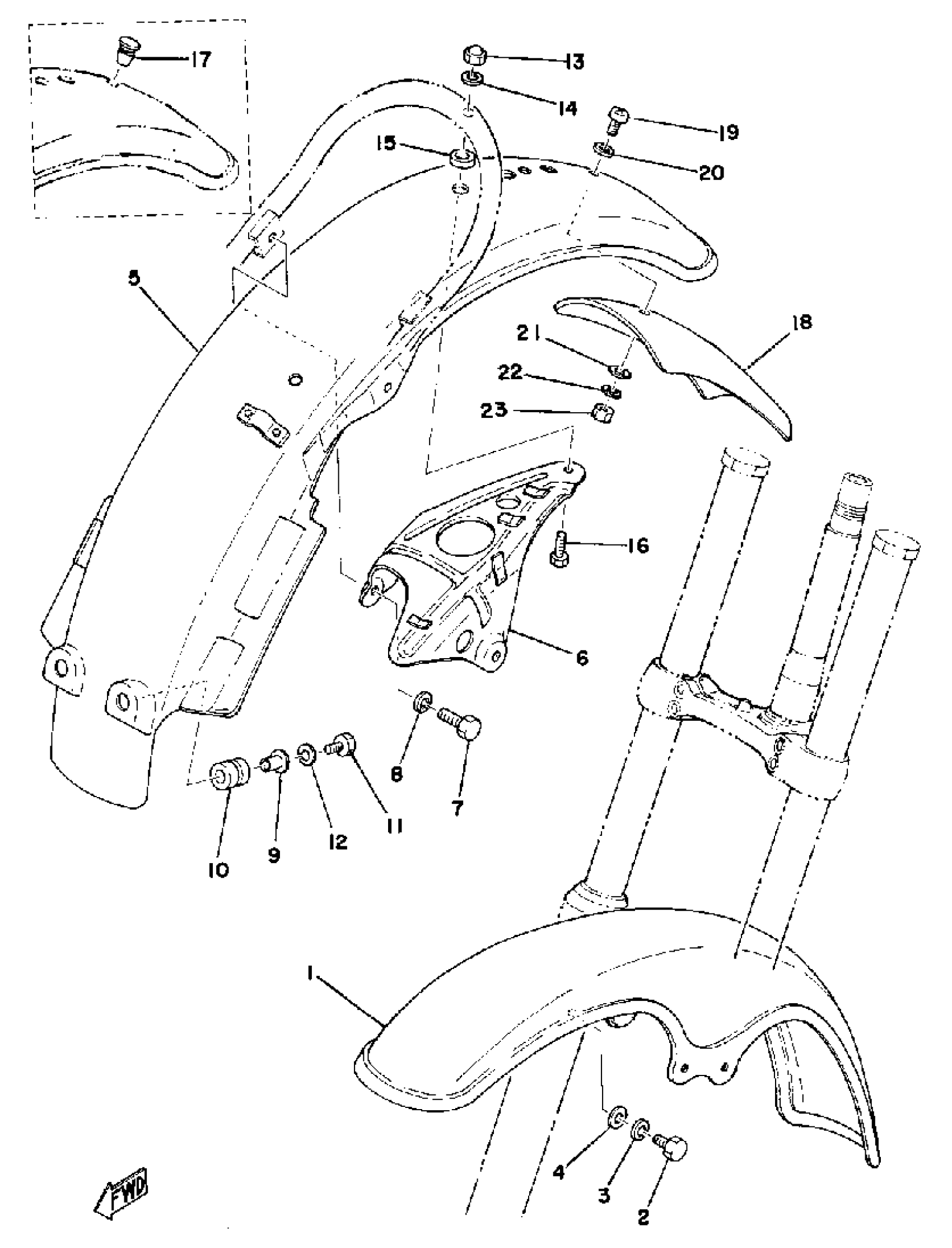

Yamaha TY175B (TY175) 1975 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER FRONT

493-21510-00-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

FENDER, REAR

(525-21610-00-36)

Unavailable

6

BRACKET, FENDER

(525-21617-00-00)

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92995-06100-00

Unavailable

9

COLLAR 437216330000

90387-07391-00

Unavailable

10

GROMMET 839774310000

90480-14023-00

$7.49

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT (J17)

95380-06800-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

DAMPER, FENDER

322-21541-00-00

$7.99

16

BOLT, HEXAGON

97017-06020-00

Unavailable

17

PLUG(1NL)

90338-07180-00

Unavailable

18

LICENCE BRKT ASSEMBLY

(434-84550-00-00)

Unavailable

19

SCREW, PAN

98517-05012-00

Unavailable

20

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

21

. WASHER, PLAIN

92990-05200-00

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

NUT, HEXAGON (663)

95380-05600-00

Unavailable
