Description

Price

1

CRANKCASE 1

(525-15111-01-00)

Unavailable

2

CRANKCASE 2

(525-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

SCREW PAN HEAD

98580-06545-00

$5.60

6

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

7

SCREW PAN HEAD

98580-06565-00

Unavailable

8

GASKET (3JD1)

90430-12207-00

$7.99

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

10

COVER, SHIFTER

437-15419-01-00

$82.99

11

RING, RUBBER

401-15449-00-00

$29.99

12

PIN,DOWEL (603)

93603-12007-00

$2.55

13

SCREW, PAN

98507-06014-00

$8.49

14

HOLDER (R.H)

304-15128-00-00

$6.99

15

SCREW,PAN HEAD

98580-08012-00

Unavailable

16

BREATHER

583-15371-00-00

Unavailable

17

HOSE (L570)

90445-07MF1-00

Unavailable

18

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

19

O-RING (P95)

93210-11073-00

Unavailable

20

DAMPER

90388-08003-00

Unavailable

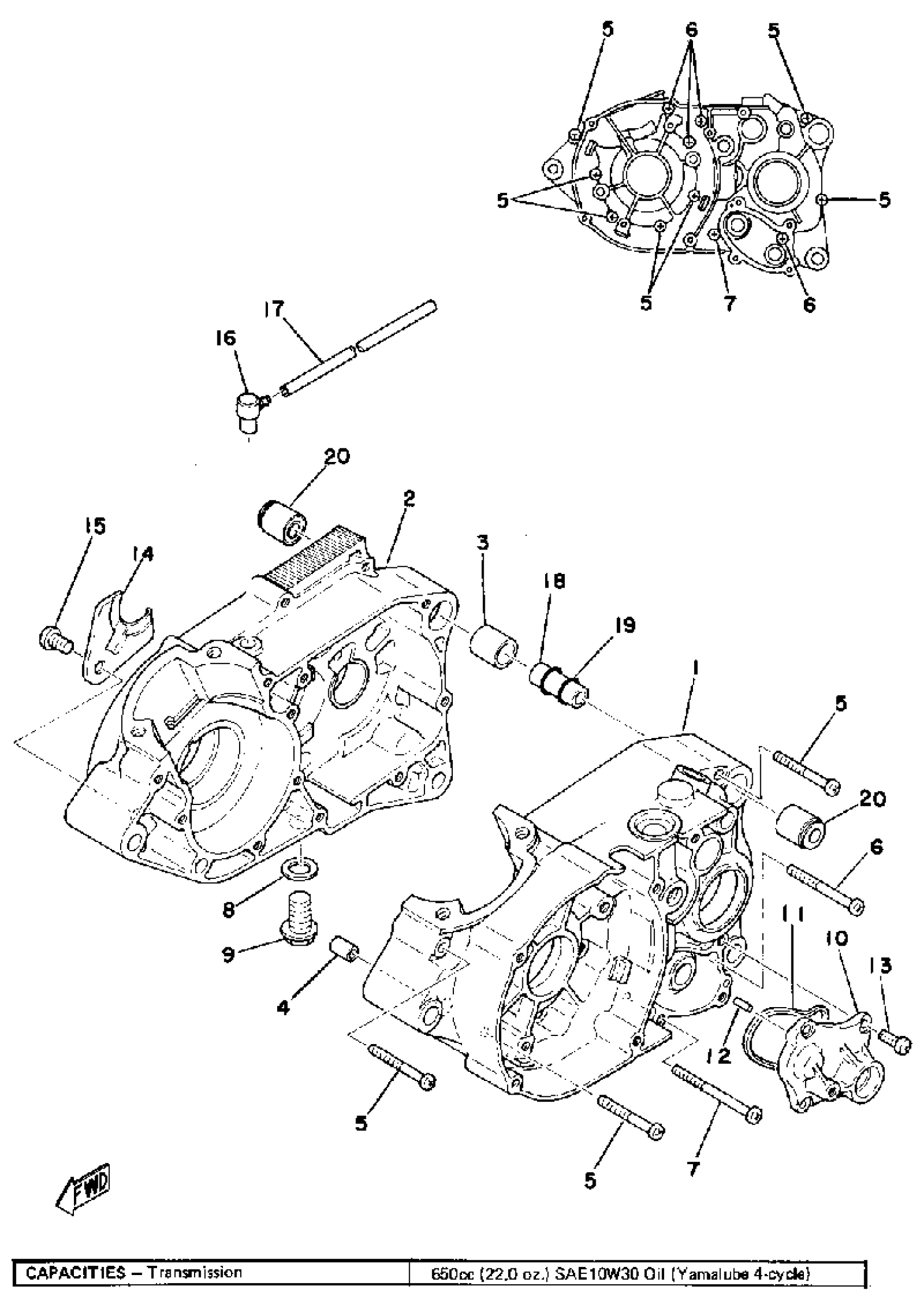

Yamaha TY175B (TY175) 1975 CRANKCASE Diagram

CRANKCASE 1

CRANKCASE 2

PIN, DOWEL

PIN, DOWEL(3VD)

SCREW PAN HEAD

SCREW, PANHED (GC2)

SCREW PAN HEAD

GASKET (3JD1)

PLUG STRAIGTSCREW 132153510000

COVER, SHIFTER

RING, RUBBER

PIN,DOWEL (603)

SCREW, PAN

HOLDER (R.H)

SCREW,PAN HEAD

BREATHER

HOSE (L570)

SPACER, ENGINE MOUNT

O-RING (P95)

DAMPER
