1973 Yamaha TX750 (TX750) Transmission Diagram

← All diagrams

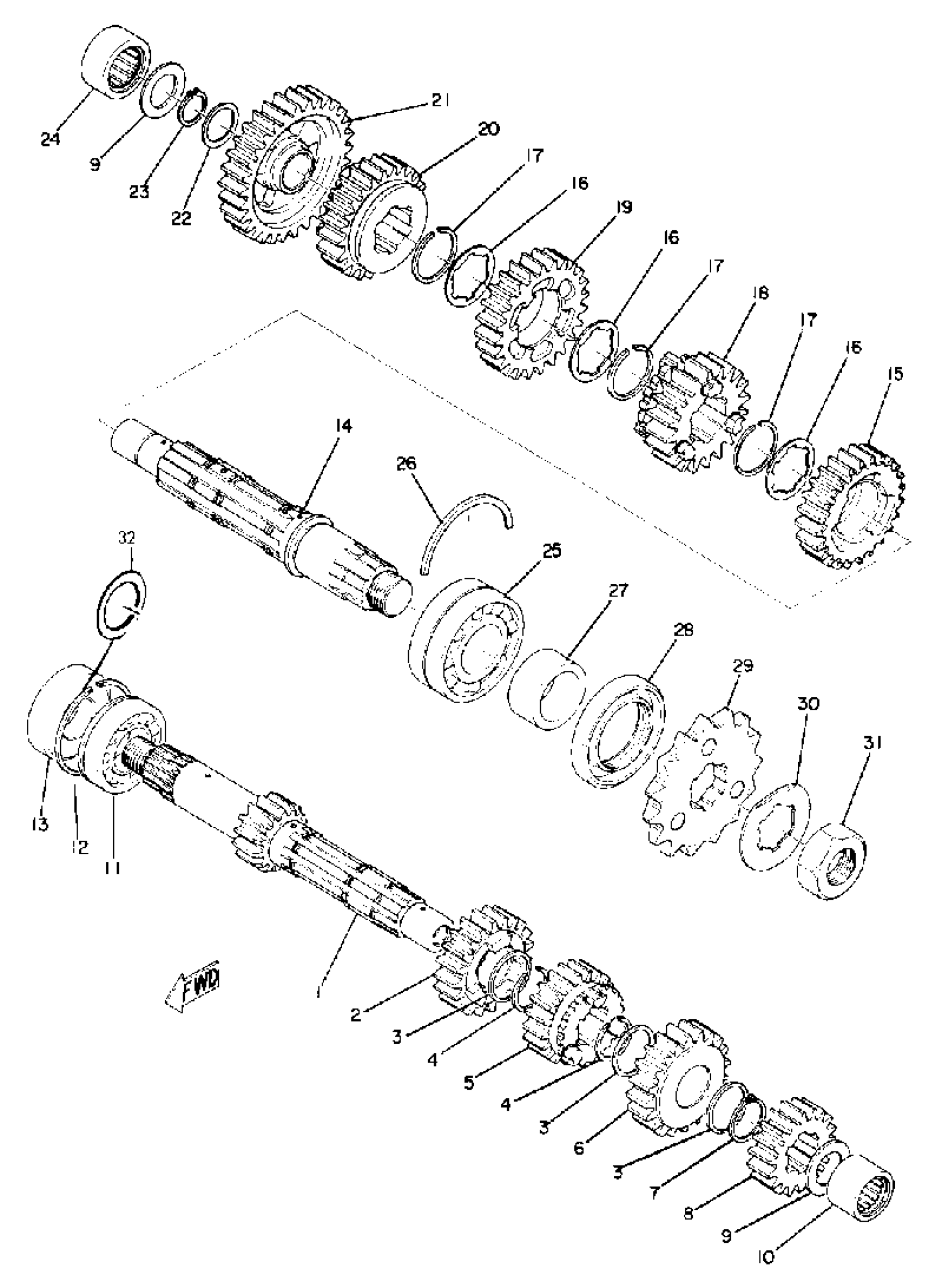

Find the part on the Transmission diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(341-17411-00-00)

1
Out of stock

2

GEAR, 4TH PINION

(256-17141-01-00)

1
Out of stock

3

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

4

CIRCLIP

93440-25020-00

1
Out of stock

5

GEAR, 3RD PINION

(256-17131-00-00)

1
Out of stock

6

GEAR, 3RD PINION

(256-17131-03-00)

1
Out of stock

6

GEAR, 5TH PINION

(341-17151-03-00)

1
Out of stock

6

GEAR 5TH PINION

(99999-00906-00)

1
Out of stock

7

CIRCLIP (256)

93410-25017-00

1
Out of stock

8

GEAR, 2ND PINION

(256-17121-00-00)

1
Out of stock

9

SHIM 1

(137-17427-00-09)

1
Out of stock

10

BEARING, CYLINDER.#13

93313-32007-00

1
Out of stock

11

BEARING(89A)

93305-20509-00

—

$102.63

In stock

12

CIRCLIP (256)

93440-52014-00

1

$8.94

In stock

13

COLLAR

(90387-25191-00)

1
Out of stock

14

AXLE, DRIVE

(341-17421-00-00)

1
Out of stock

15

. GEAR, 2ND WHEEL

256-17221-01-00

1
Out of stock

15

GEAR, 3RD WHEEL

(256-17231-03-00)

1
Out of stock

15

. GEAR, 5TH WHEEL

256-17251-03-00

1
Out of stock

15

3RD 4TH WHEEL GEAR

(99999-00977-00)

1
Out of stock

16

WASHER, GEAR HOLD 3

256-17236-00-10

1
Out of stock

16

WASHER, GEAR HOLD 3

256-17236-00-12

1
Out of stock

17

CIRCLIP, OUTER

93440-30015-00

1
Out of stock

18

3RD 4TH WHEEL GEAR

(99999-00977-00)

1
Out of stock

19

. GEAR, 2ND WHEEL

256-17221-01-00

1
Out of stock

19

GEAR, 3RD WHEEL

(256-17231-03-00)

1
Out of stock

19

. GEAR, 5TH WHEEL

256-17251-03-00

1
Out of stock

19

3RD 4TH WHEEL GEAR

(99999-00977-00)

1
Out of stock

20

GEAR, 4TH WHEEL (23T)

256-17241-01-00

1
Out of stock

21

GEAR, 1ST WHEEL

306-17211-00-00

1
Out of stock

22

WASHER PLATE 132172160000

90201-20266-00

—
Out of stock

23

CIRCLIP, S-TYPE

93410-20021-00

1
Out of stock

24

BEARING, CYLINDER.#13

93313-32005-00

1
Out of stock

25

BEARING

93305-20603-00

1
Out of stock

26

CIRCLIP 1

168-17424-00-00

1
Out of stock

27

COLLAR

(90387-30202-00)

1
Out of stock

28

OIL SEAL (40X62X9-447)

93105-40018-00

—

$18.77

In stock

29

SPROCKET, DRIVE

93855-17129-00

1
Out of stock

30

WASHER, LOCK

90215-26024-00

1
Out of stock

31

NUT, SPEC''L SHAPE

90179-22022-00

1
Out of stock

32

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock
