1973 Yamaha TX750 (TX750) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

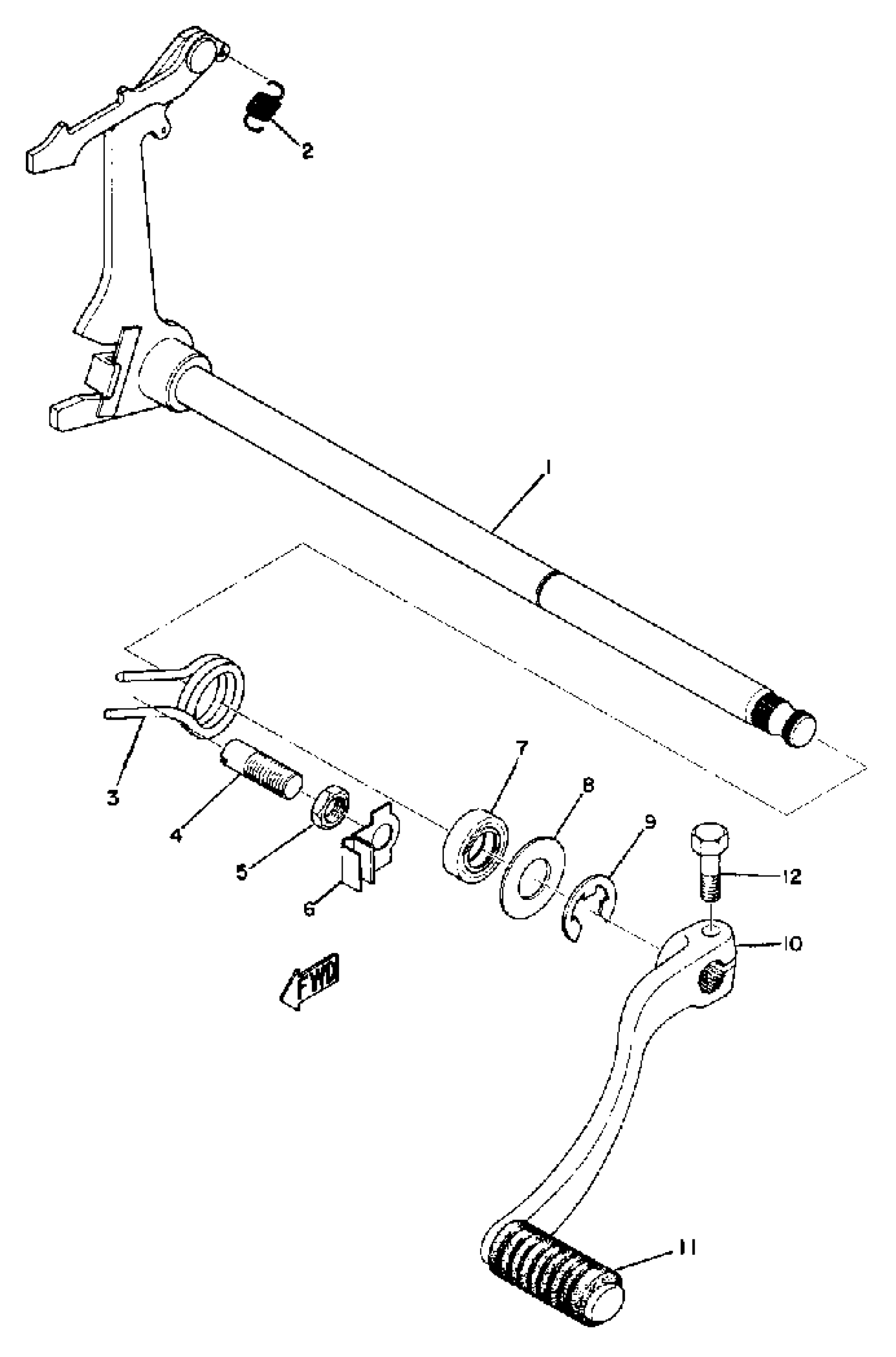

1973 Yamaha TX750 (TX750) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

341-18101-01-00

1
Out of stock

2

SPRING, TENSION

90506-08007-00

1
Out of stock

3

SPRING, TORSION

90508-32559-00

1
Out of stock

4

SCREW, SPEC''L SHAPE

(90149-10018-00)

1
Out of stock

5

NUT, HEXAGON

90170-10038-00

1
Out of stock

6

WASHER, LOCK

90215-10105-00

1
Out of stock

7

OIL SEAL (14X24X6-256)

93109-14010-00

1

$10.66

In stock

8

WASHER PLATE 248181370000

90201-14220-00

1

$6.17

In stock

9

. CIRCLIP

99001-12600-00

1

$5.78

In stock

10

PEDAL, SHIFT

2J2-18111-01-00

1
Out of stock

11

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
