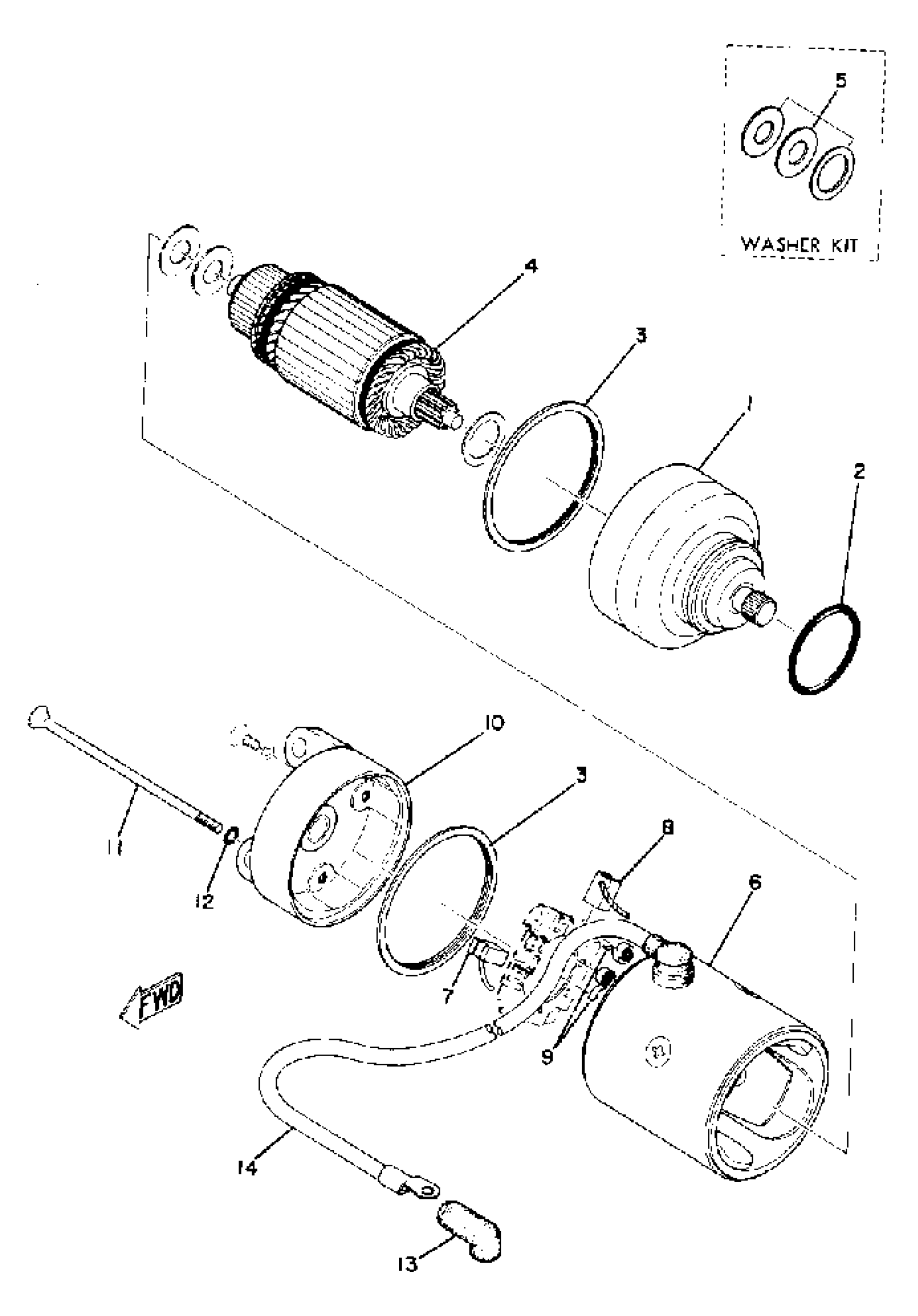

Yamaha TX750 (TX750) 1973 STARTING MOTOR Diagram

#

Description

Price

1

STARTING MOTOR ASSEMBLY

(341-81800-13-00)

Unavailable

1

FRONT BRACKET ASSEMBLY

(341-81830-11-00)

Unavailable

2

O-RING (132)

93210-41042-00

$7.49

3

O-RING

(341-81847-10-00)

Unavailable

4

ARMATURE ASSEMBLY

(341-81850-10-00)

Unavailable

5

WASHER KIT

(341-81809-10-00)

Unavailable

6

STATOR ASSEMBLY

(341-81810-10-00)

Unavailable

7

BRUSH 1

306-81811-10-00

Unavailable

8

BRUSH 1

306-81811-10-00

Unavailable

9

SPRING, BRUSH

(341-81813-10-00)

Unavailable

10

REAR BRACKET ASSEMBLY

(341-81820-11-00)

Unavailable

11

BOLT

(341-81826-10-00)

Unavailable

12

WASHER

(341-81835-10-00)

Unavailable

13

. CAP

306-81862-10-00

Unavailable

14

WIRE, LEAD

(341-81816-10-00)

Unavailable
