STAND - FOOTREST - BRAKE PEDAL

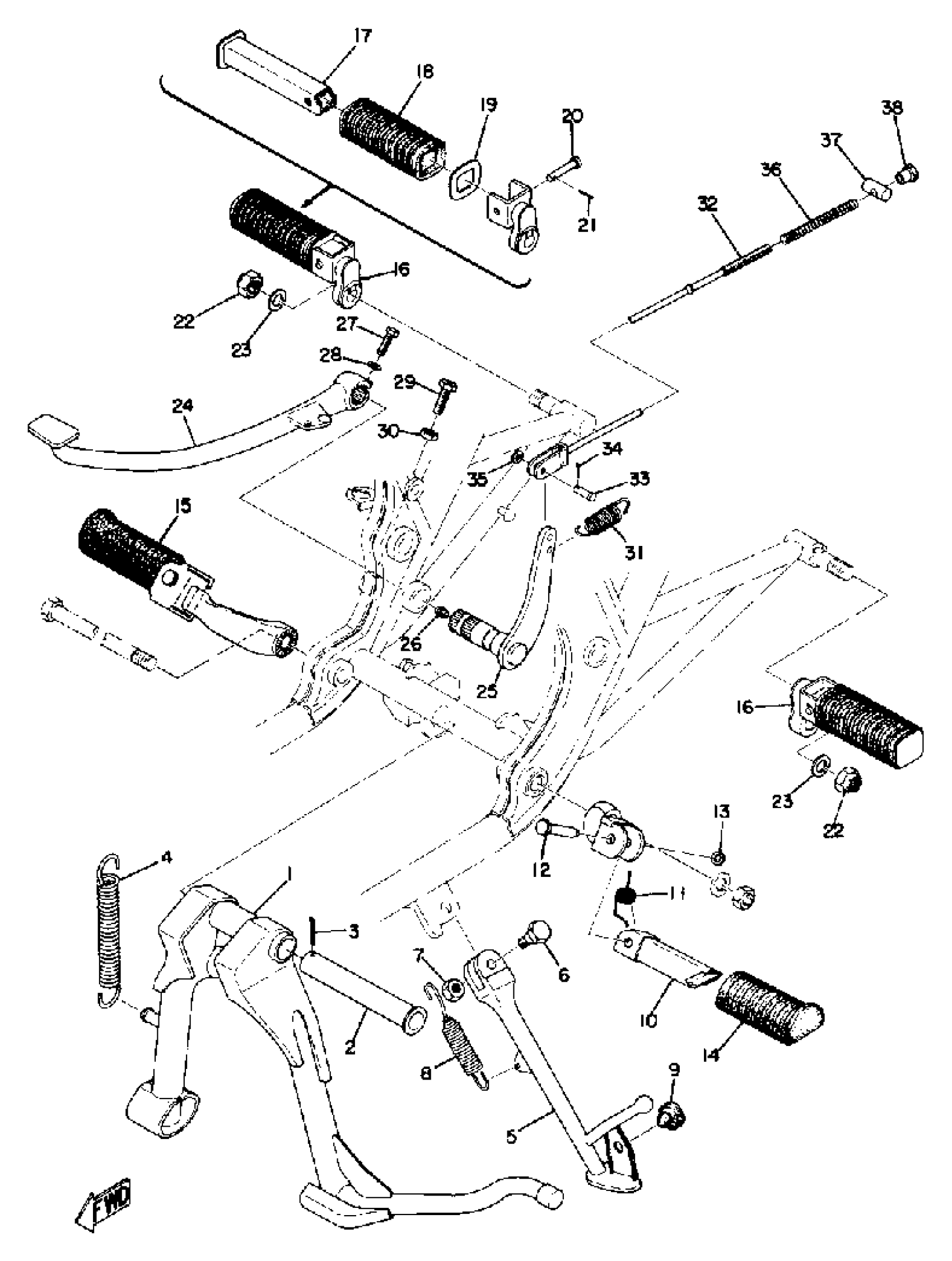

Yamaha TX750 (TX750) 1973 STAND - FOOTREST - BRAKE PEDAL Diagram
#
1
STAND, MAIN
(341-27111-00-00)
Unavailable
1
FRT FOOTREST ASSEMBLY L
(341-27410-01-00)
Unavailable
2
SHAFT, MAIN STAND
(341-27112-00-00)
Unavailable
2
FRT FOOTREST ASSEMBLY R
(341-27420-01-00)
Unavailable
4
SPRING, TENSION
90506-35058-00
Unavailable
5
STAND, SIDE
(341-27311-01-00)
Unavailable
7
. NUT
95380-08700-00
Unavailable
9
STOPPER
341-27314-02-00
Unavailable
10
. FOOTREST
341-27451-00-00
Unavailable
14
. COVER, FOOTREST
341-27423-00-00
Unavailable
15
. COVER, FOOTREST
341-27413-00-00
Unavailable
16
RR FOOTREST ASSEMBLY 1
256-27430-00-00
Unavailable
17
FOOTREST, REAR 1
(341-27431-00-00)
Unavailable
18
. COVER, RR FOOTREST
307-27433-00-00
Unavailable
19
. WASHER, SPEC''L SHAP (168-27437-10)
90209-18117-00
Unavailable
20
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
21
PIN, COTTER
91490-16020-00
Unavailable
22
NUT, NYLON(663)
90185-12058-00
Unavailable
23
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
24
PEDAL, BRAKE
(341-27211-02-93)
Unavailable
25
SHAFT, BRAKE PEDAL
(341-27212-01-00)
Unavailable
26
NIPPLE, GREASE
93700-06M03-00
Unavailable
27
BOLT, HEXAGON
97017-06025-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
SCREW 341272170000
90153-06008-00
Unavailable
30
NUT(650)
95380-06700-00
Unavailable
31
SPRING, TENSION(1FN)
90506-20380-00
Unavailable
32
ROD, BRAKE
341-27231-00-00
Unavailable
33
PIN, WITH HOLE (248-27228-00)
90240-06006-00
Unavailable
34
PIN, COTTER
91490-25020-00
Unavailable
35
WASHER, PLATE (371)
90201-06431-00
Unavailable
36
SPRING, (180-27236-00)
90501-10245-00
Unavailable
37
PIN 1562723700
90249-12008-00
Unavailable
38
NUT (25K)
90179-06411-00
Unavailable
