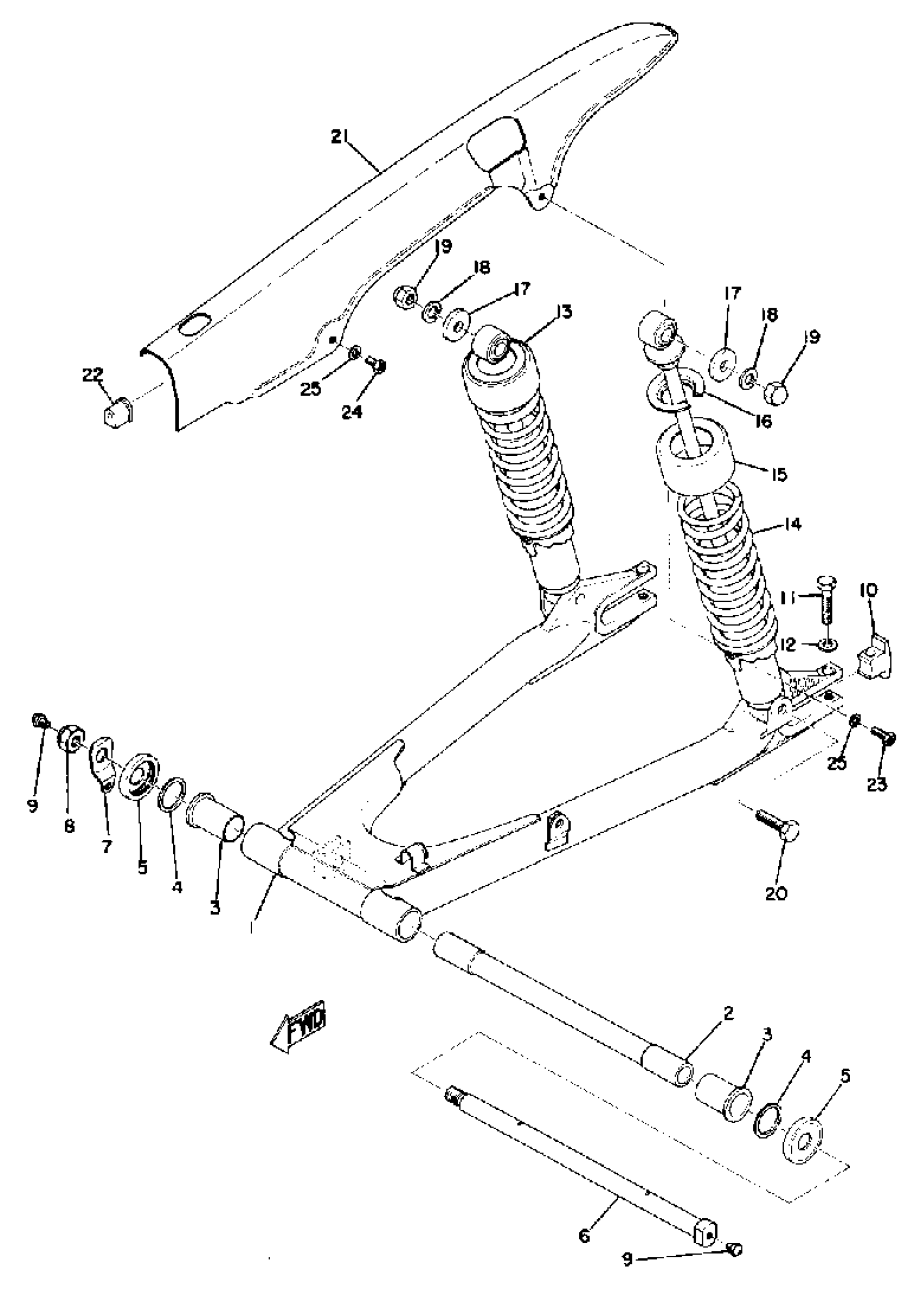

Yamaha TX750 (TX750) 1973 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(341-22110-01-33)

Unavailable

2

BUSH

341-22184-00-00

Unavailable

3

BUSH (5A9)

90386-22102-00

$40.99

4

SHIM,REAR ARM

240-22127-00-00

$6.99

5

COVER, THRUST 1

341-22128-01-00

Unavailable

6

SHAFT, PIVOT

(341-22141-01-00)

Unavailable

7

WASHER, LOCK

(90215-14104-00)

Unavailable

8

NUT

(341-22143-00-00)

Unavailable

9

NIPPLE, GREASE

93700-06M03-00

Unavailable

10

BAR, COMPRESSION

341-22177-00-00

Unavailable

11

BOLT

97014-08040-00

$7.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

SHK/ABS ASSEMBLY, REAR

(341-22210-29-00)

Unavailable

14

SPRING

(341-22212-20-00)

Unavailable

15

COVER

(341-22211-20-00)

Unavailable

16

. SEAT, SPRING UPPER

341-22213-20-00

Unavailable

17

WASHER PLATE 341222430000

90201-10142-00

Unavailable

18

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

19

NUT, CROWN (650)

95380-10800-00

Unavailable

20

BOLT ROUND 214222410000

90106-10025-00

Unavailable

21

CASE, CHAIN

(341-22311-02-98)

Unavailable

22

DAMPER, CHAIN CASE

(341-22332-00-00)

Unavailable

23

BOLT(3DM)

97024-06020-00

Unavailable

24

SCREW, HEXAGON

90153-06005-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable
