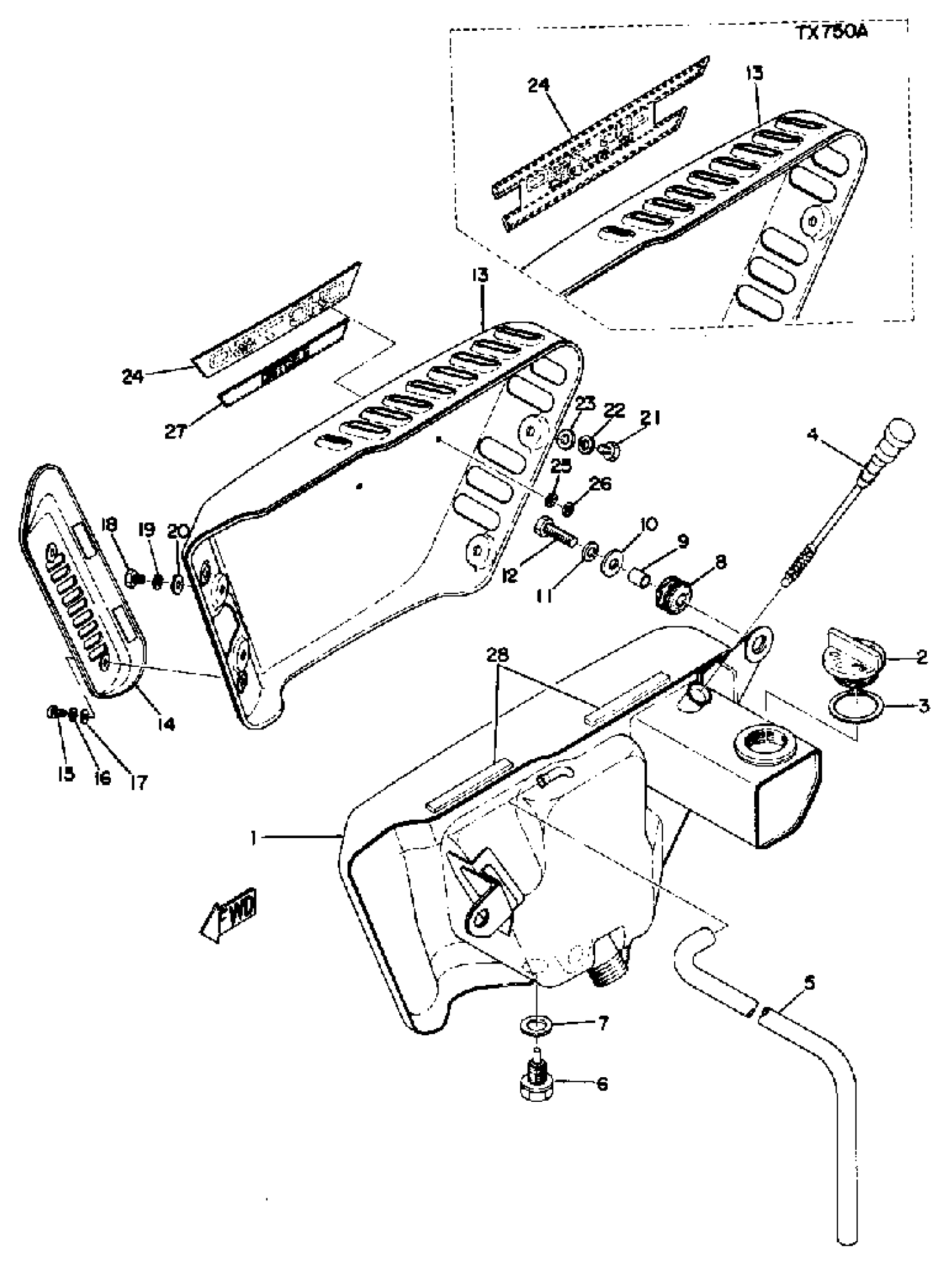

Yamaha TX750 (TX750) 1973 OIL TANK - SIDE COVER RIGHT Diagram

#

Description
Price

1

TANK, OIL

(341-21751-01-33)

Unavailable

2

BODY, CAP

341-21771-00-00

Unavailable

3

GASKET 214217720000

90430-29114-00

$8.49

4

GAUGE, OIL

(341-21792-00-00)

Unavailable

5

PIPE, OIL TNK BRTHR

(341-21745-04-00)

Unavailable

6

PLUG, STRAIGHT SCRW

(90340-12035-00)

Unavailable

7

WASHER, PLATE 3412175700

90201-12172-00

$3.93

8

DAMPER, LOCATING 1

(341-21778-00-00)

Unavailable

9

COLLAR (J10)

90387-06026-00

$8.49

10

WASHER, PLATE 1012832300

90201-06066-00

$9.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

COVER, SIDE 2

(341-21721-01-M5)

Unavailable

13

COVER, SIDE 2

(341-21721-02-R6)

Unavailable

14

MOLD 2

(341-21782-01-00)

Unavailable

15

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable

16

WASHER(6TA)

92907-04100-00

Unavailable

17

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

18

BOLT, HEXAGON

97013-05010-00

Unavailable

19

WASHER(3SX)

92907-05100-00

Unavailable

20

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

21

BOLT, HEXAGON

(97306-05008-00)

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

. WASHER, PLAIN

92990-05200-00

Unavailable

24

EMBLEM 6

(341-21786-00-00)

Unavailable

24

EMBLEM 7

341-21787-02-00

Unavailable

25

WASHER PLATE 174283160000

90202-04003-00

Unavailable

26

NUT SPRING 116283170100

90183-04005-00

Unavailable

27

EMBLEM 5

341-21785-00-00

Unavailable

28

DAMPER, LOCATING 2

(341-21779-00-00)

Unavailable
