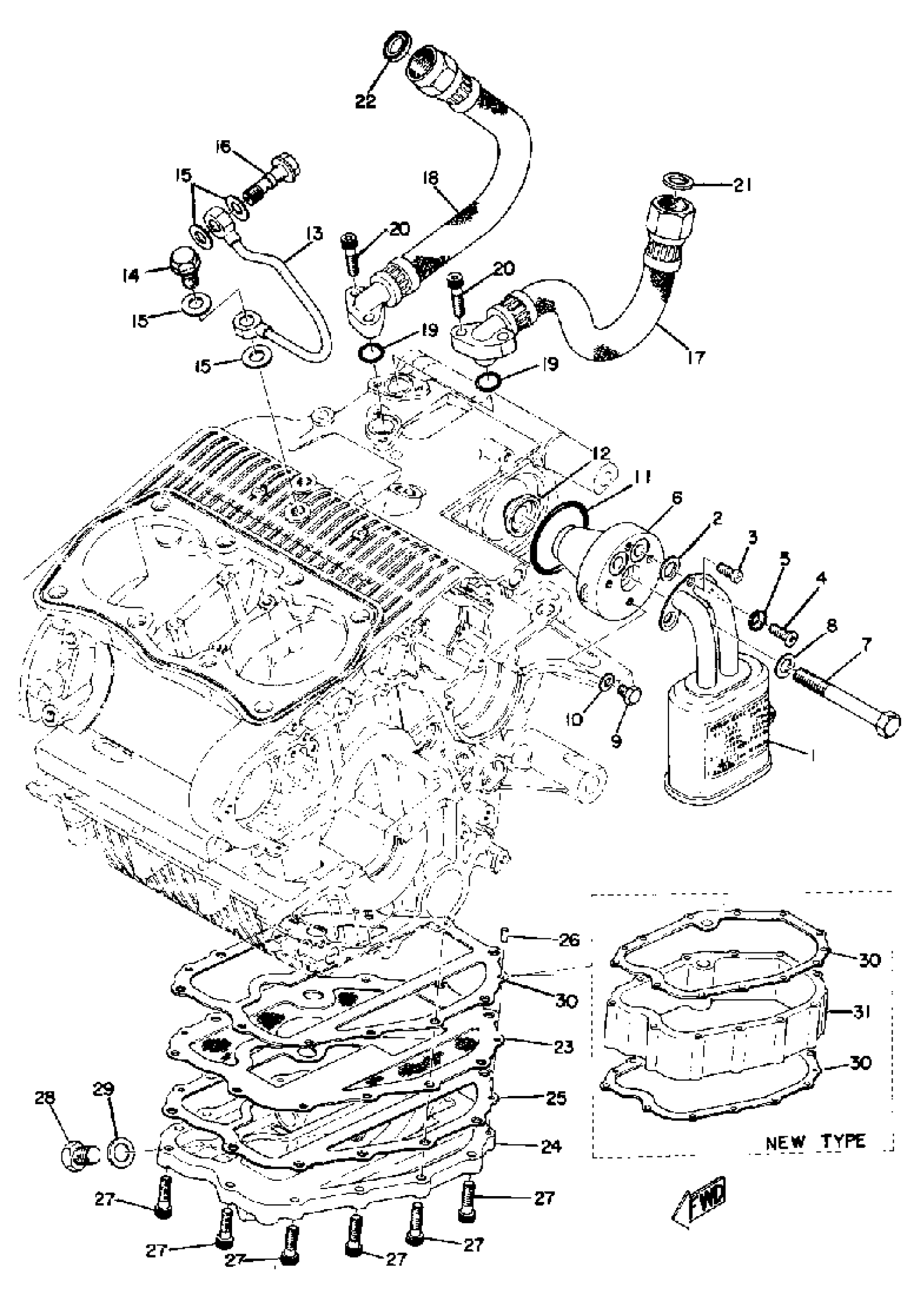

Yamaha TX750 (TX750) 1973 OIL CLEANER Diagram

#

Description
Price

1

ELEMENT, OIL CLNR

341-W1342-00-00

Unavailable

2

. GASKET

90430-13002-00

Unavailable

3

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

4

SCREW, FLAT

98707-06014-00

$8.49

5

WASHER

92990-06500-00

Unavailable

6

COVER, OIL PUMP

(341-15416-03-00)

Unavailable

7

BOLT,HEXAGON

97013-08085-00

Unavailable

8

WASHER, PLATE 3411117500

90201-08087-00

$3.71

9

BOLT (11T)

90101-06576-00

$8.49

10

GASKET 256113960000

90430-06014-00

Unavailable

11

O-RING (341)

93210-54175-00

$13.49

12

GASKET, ELMNT COVER

(341-13449-01-00)

Unavailable

13

PIPE, DELIVERY 1

(341-13161-00-00)

Unavailable

14

BOLT, BANJO

(341-13166-03-00)

Unavailable

15

GASKET (5R6)

90430-10171-00

$3.18

16

BOLT, BANJO

(341-13165-00-00)

Unavailable

17

HOSE, OIL 1

(341-13464-10-00)

Unavailable

18

HOSE, OIL 2

(341-13465-10-00)

Unavailable

19

O-RING (341)

93210-15171-00

Unavailable

20

BOLT,SOCKET

91317-06025-00

Unavailable

21

GASKET

(341-13475-00-00)

Unavailable

22

GASKET

(341-13476-00-00)

Unavailable

23

STRAINER, OIL

(341-13411-04-00)

Unavailable

24

COVER, STRAINER

(341-13417-07-00)

Unavailable

25

GASKET,STRNR COVER

341-13414-14-00

Unavailable

26

PIN,DOWEL (168)

93604-12037-00

Unavailable

27

BOLT,SOCKET

91317-06025-00

Unavailable

27

BOLT, SOCKET

91317-06075-00

Unavailable

28

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

29

GASKET

214-11198-01-00

Unavailable

30

GASKET,STRNR COVER

341-13414-14-00

Unavailable

30

GASKET, STRNR COVER

341-13414-09-00

Unavailable

31

SPACER, STRAINER

(341-13427-09-00)

Unavailable
