1973 Yamaha TX750 (TX750) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

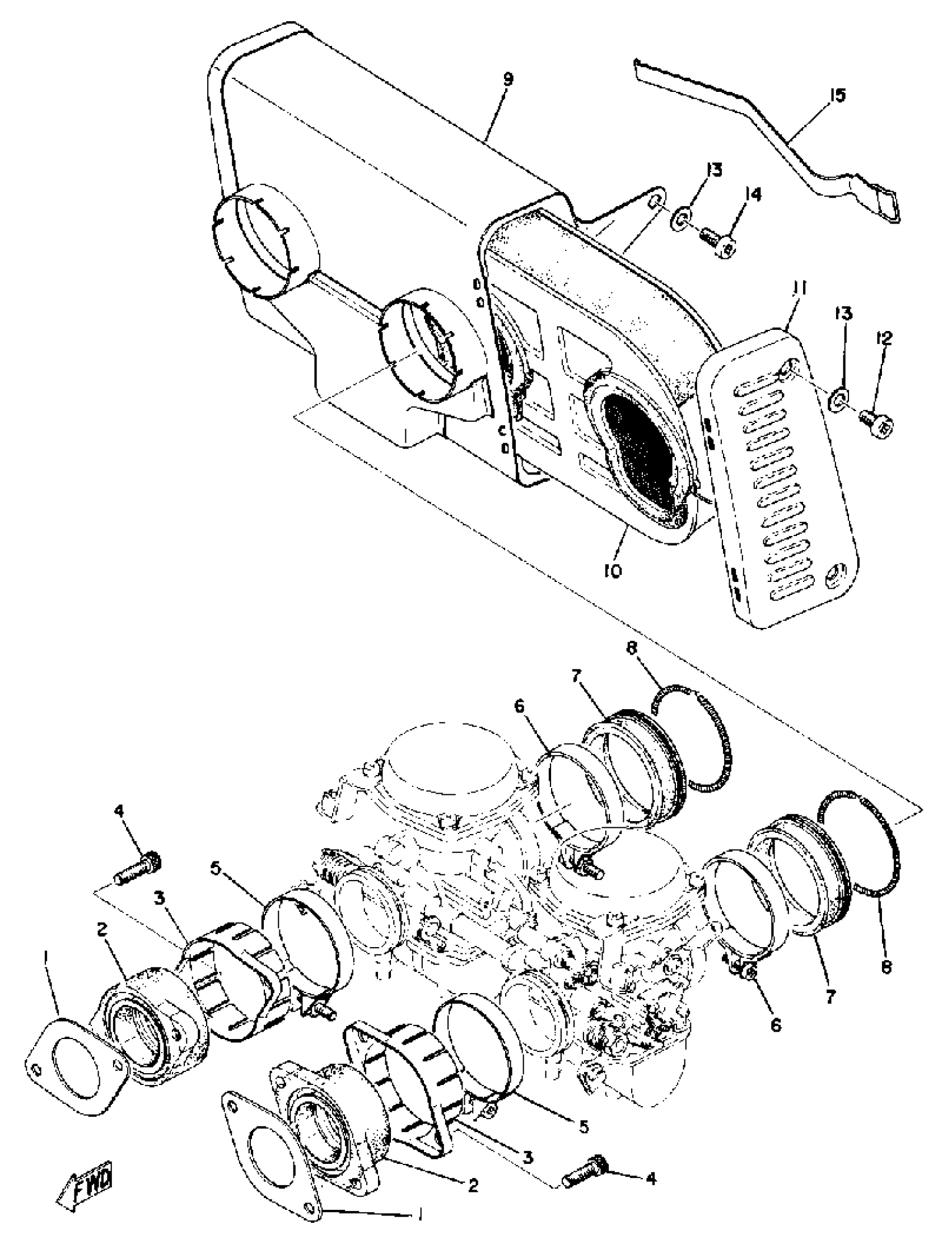

1973 Yamaha TX750 (TX750) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, JOINT

256-13556-11-00

1

$20.60

In stock

2

JOINT, CARBURETOR

341-13565-00-00

1
Out of stock

3

COVER,JOINT

256-13564-00-00

—

$14.12

In stock

4

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

5

HOSE CLAMP ASSY

90450-58002-00

1

$15.11

In stock

6

HOSE CLAMP ASSY

90450-62006-00

1

$10.77

In stock

7

JOINT, AIR CLNR 1

341-14453-00-00

1
Out of stock

8

SPRING, TENSION (256-14487-00)

90506-06006-00

1
Out of stock

9

CASE, AIR CLEANER 1

(341-14411-10-98)

1
Out of stock

10

ELEMENT, AIR CLNR

341-14451-03-00

1
Out of stock

11

CAP, CLEANER CASE 2

(341-14422-01-98)

1
Out of stock

12

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

15

PLATE, ELEMENT FTNG

(341-14468-00-00)

1
Out of stock
