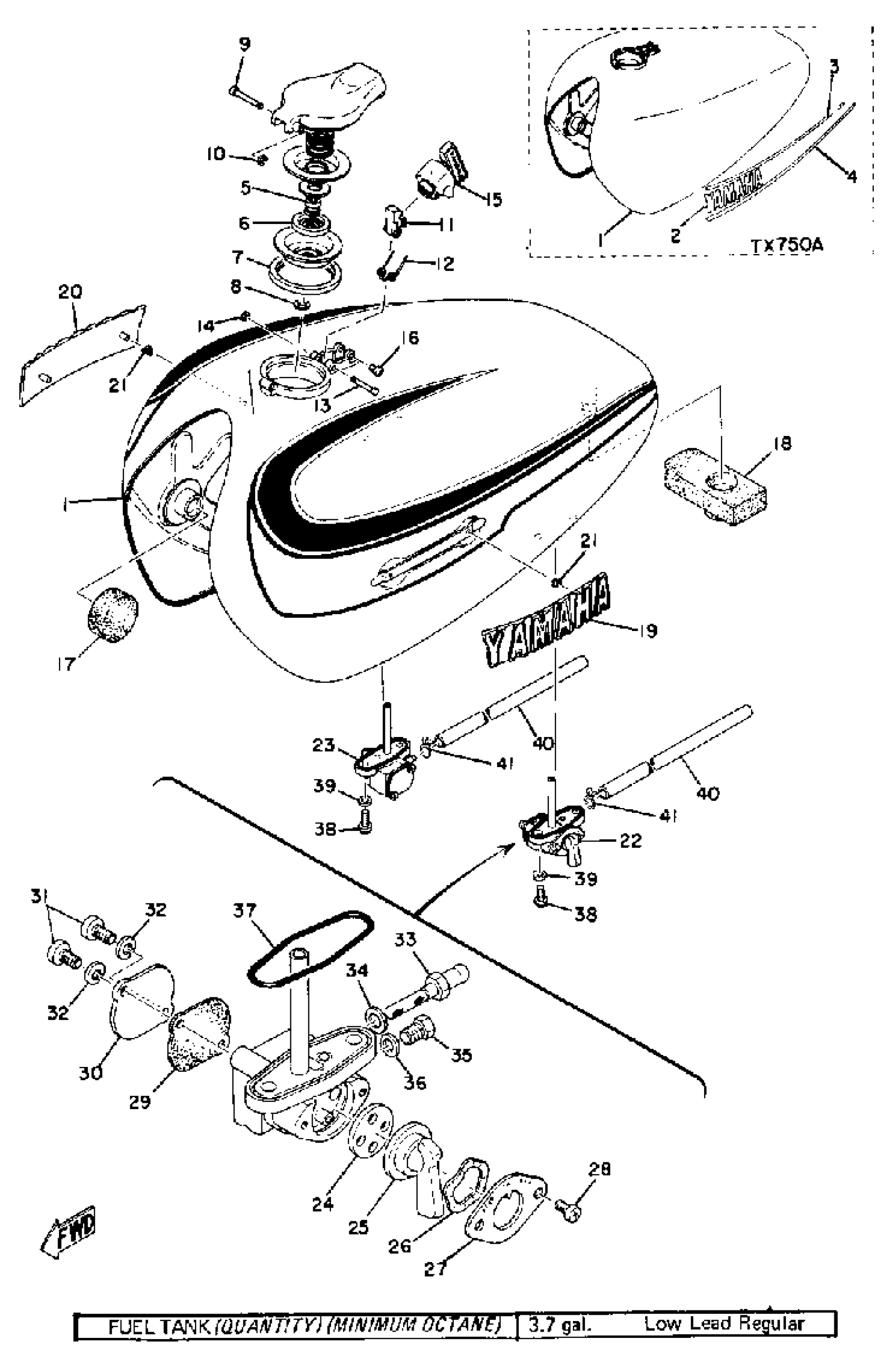

Yamaha TX750 (TX750) 1973 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(341-24110-01-01)

Unavailable

1

FUEL TANK

(341-24110-02-04)

Unavailable

1

CAP ASSEMBLY

341-24653-00-00

Unavailable

2

EMBLEM, YAMAHA(4GA)

99221-00140-00

$4.46

3

GRAPHIC, FUEL TNK 7

(341-24254-01-00)

Unavailable

4

GRAPHIC, FUEL TNK 8

(341-24255-01-00)

Unavailable

5

GASKET, CAP 2

(308-24642-00-00)

Unavailable

6

GASKET, CAP 1

(308-24641-00-00)

Unavailable

7

. GASKET, CAP

341-24612-01-00

Unavailable

8

CIRCLIP(53L)

99001-06600-00

$1.01

9

PIN, SPECIAL SHAPE (308-24623-00)

90249-03087-00

Unavailable

10

CIRCLIP (604)

93430-02001-00

$8.49

11

HOOK

341-24628-00-00

Unavailable

12

SPRING, TORSION

90508-07235-00

Unavailable

13

PIN, SPECIAL SHAPE

90249-03088-00

Unavailable

14

CIRCLIP (604)

93430-02001-00

$8.49

15

CAP ASSEMBLY

341-24602-01-00

Unavailable

16

SCREW, PAN HEAD

98507-04018-00

Unavailable

17

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

18

DAMPER, LOCATING 1

(341-24181-00-00)

Unavailable

19

EMBLEM 1

(341-24161-02-00)

Unavailable

20

EMBLEM 2

(341-24162-02-00)

Unavailable

21

NUT, SPRING

90183-03006-00

Unavailable

22

FUEL COCK ASSEMBLY 1

447-24500-02-00

Unavailable

23

FUEL COCK ASSEMBLY 2

447-24510-02-00

Unavailable

24

VALVE

137-24523-00-00

Unavailable

24

. GASKET

256-24528-00-00

Unavailable

25

LEVER, COCK

(256-24524-00-00)

Unavailable

26

WASHER, WAVE

132-24518-00-00

Unavailable

27

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

28

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

29

. WASHER (256-24522-00)

647-14227-00-00

Unavailable

30

CUP, FILTER

(256-24521-00-00)

Unavailable

31

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

32

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

33

. NIPPLE

256-24537-00-00

Unavailable

35

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

36

. GASKET, BODY 4

801-24437-00-00

Unavailable

37

GASKET, BODY

256-24512-00-00

Unavailable

38

SCREW 256241430000

90149-06011-00

Unavailable

39

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

40

HOSE (L420)

90445-092K1-00

Unavailable

41

CLIP 101235600

90467-08003-00

Unavailable
