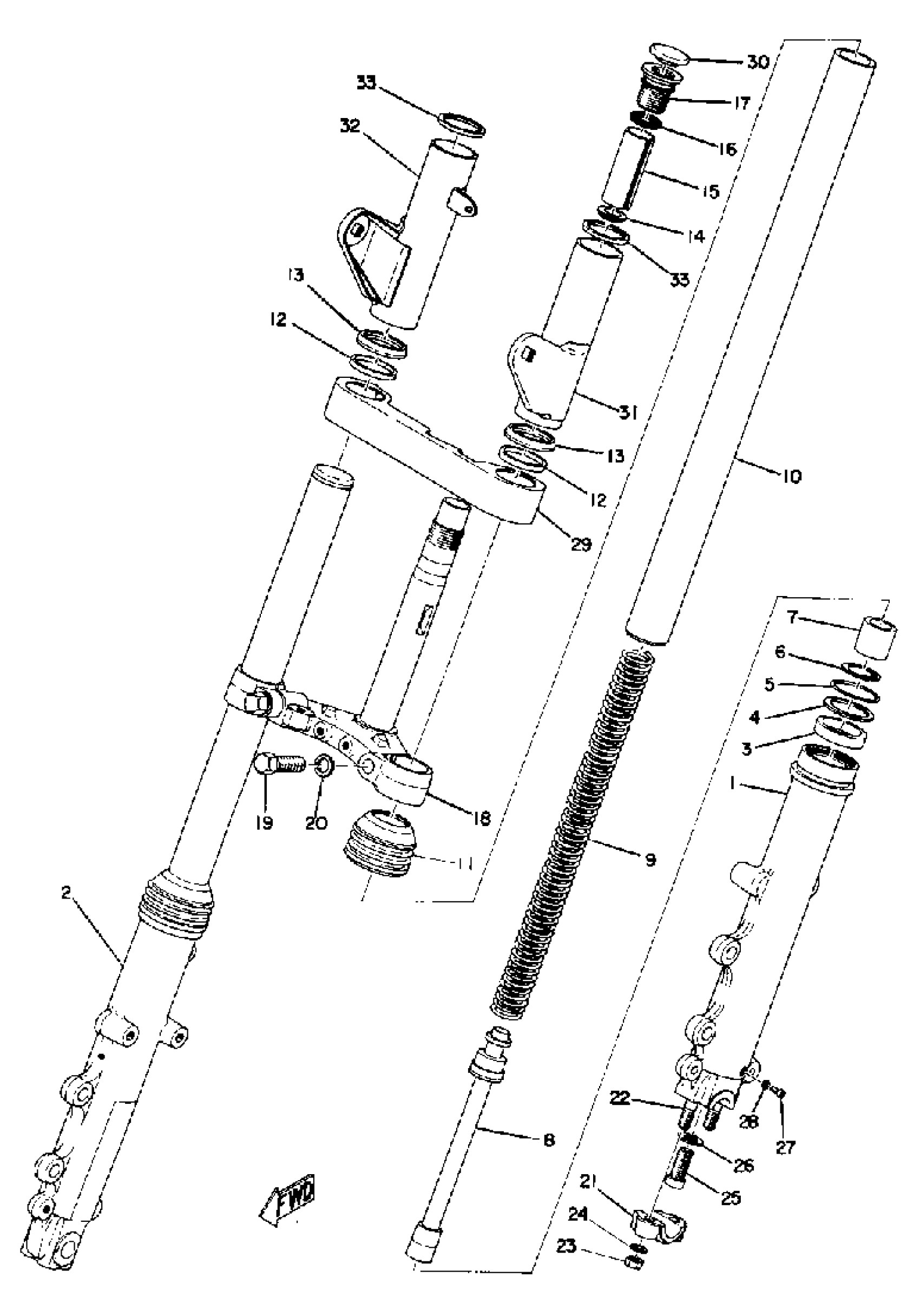

Yamaha TX750 (TX750) 1973 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(341-23101-51-00)

Unavailable

1

TUBE, OUTER 1

(341-23126-50-00)

Unavailable

2

TUBE, OUTER 2

(341-23136-50-00)

Unavailable

3

.. OIL SEAL

341-23145-51-00

Unavailable

4

WASHER, OIL SEAL

341-23146-50-00

$10.99

5

CLIP, OIL SEAL

341-23156-50-00

$32.99

6

. CIRCLIP, INNER

93450-30033-00

Unavailable

7

PISTON, FRONT FORK

(278-23171-50-00)

Unavailable

8

CYLINDER, FRTFRK

(341-23170-50-00)

Unavailable

9

SPRING, FRONT FORK

(341-23141-50-00)

Unavailable

10

TUBE, INNER 1

(341-23124-50-00)

Unavailable

11

. SEAL, DUST

341-23144-50-00

Unavailable

12

. GASKET (LAMP STAY)

291-23163-61-00

Unavailable

13

GUIDE, COVER LOWER

(256-23116-61-00)

Unavailable

14

. SEAT, SPRING UPPER

278-23142-50-00

Unavailable

15

SPACER

(33Y-23118-00-00)

Unavailable

16

. GASKET

214-23114-00-00

Unavailable

17

. BOLT, CAP

341-23111-51-00

Unavailable

18

UNDER BRACKET

(341-23340-31-33)

Unavailable

19

. BOLT 1

306-23346-60-00

Unavailable

20

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

21

HOLDER,AXLE

341-23167-50-00

Unavailable

22

BOLT, STUD (278)

90116-08261-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

26

GASKET

509-23158-L0-00

Unavailable

27

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

28

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

29

COVER, OUTER 1

(341-23122-51-00)

Unavailable

30

. CAP, FRONT FORK

371-23168-60-00

Unavailable

31

COVER, UPPER 1

(341-23121-50-M5)

Unavailable

31

COVER, UPPER 1

(341-23121-50-R6)

Unavailable

32

COVER, UPPER 2

(341-23131-50-M5)

Unavailable

32

COVER, UPPER 2

(341-23131-50-R6)

Unavailable

33

GUIDE, COVER UPPER

2H7-23115-00-00

Unavailable
