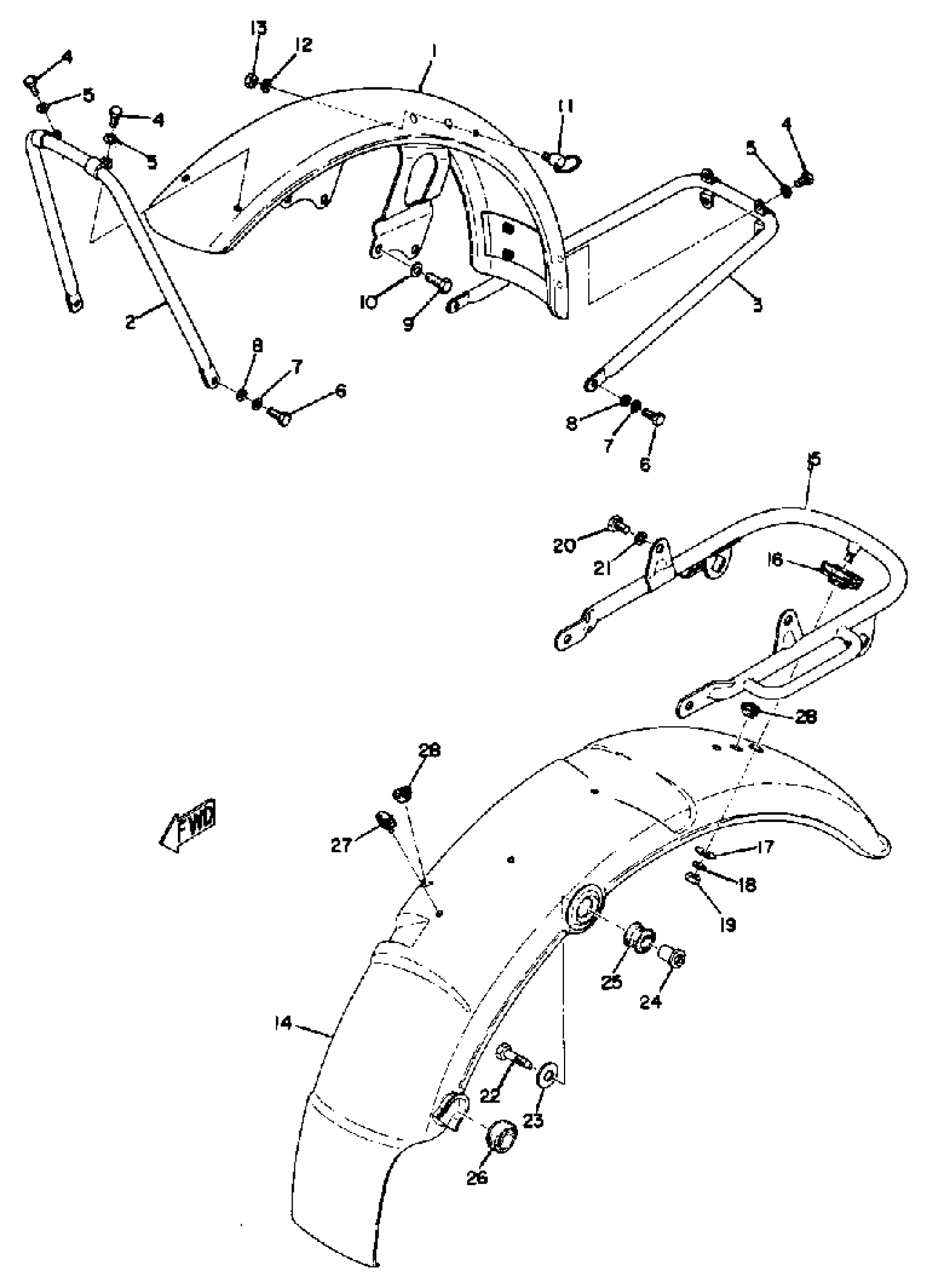

Yamaha TX750 (TX750) 1973 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT (341-21511-01-93)

447-21511-00-93

Unavailable

2

STAY, FENDER 1

341-21513-01-00

Unavailable

3

STAY, FENDER 2

(341-21514-01-00)

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

BOLT, HEXAGON

97013-06018-00

$1.11

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE (371)

90201-06431-00

$5.60

9

BOLT, HEXAGON

97013-08020-00

$1.16

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

HOLDER, CABLE

(174-21518-00-00)

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

FENDER, REAR

(341-21611-00-93)

Unavailable

15

STAY, REAR

(341-21645-00-00)

Unavailable

16

DAMPER 1

(341-21638-00-00)

Unavailable

17

WASHER, PLATE (J10)

90201-06697-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

BOLT, HEXAGON

97013-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

22

BOLT

97013-08035-00

Unavailable

23

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

24

COLLAR

(90387-09067-00)

Unavailable

25

DAMPER 2

(341-21639-00-00)

Unavailable

26

DAMPER, LOCATING(1)

122-24181-00-00

Unavailable

27

CLAMP

(90464-04014-00)

Unavailable

28

GROMMET 152845180000

90480-12013-00

Unavailable
