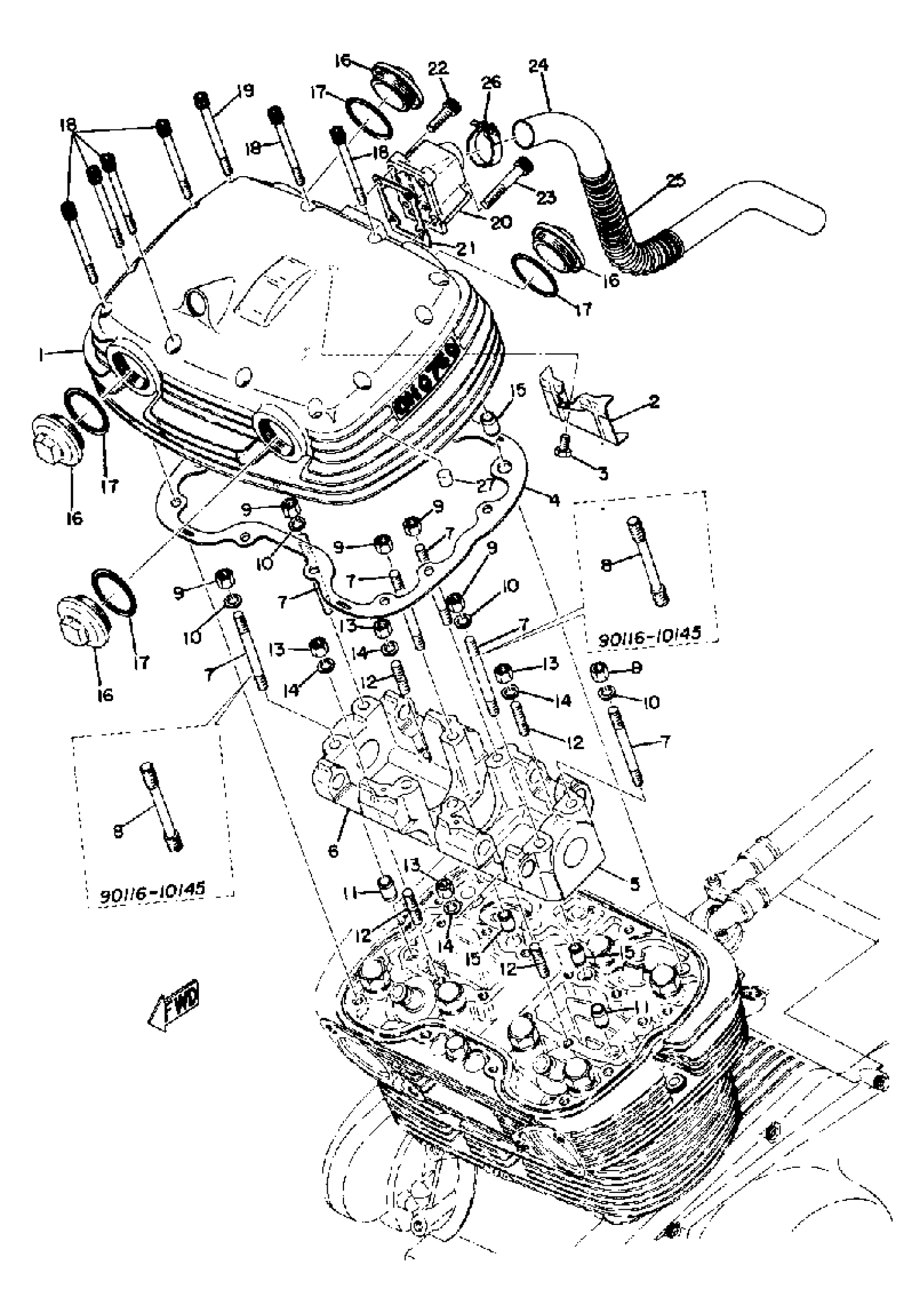

Yamaha TX750 (TX750) 1973 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER.HEAD 1

(341-11191-01-00)

Unavailable

2

BUSH, BREAKER SHAFT

(341-11154-02-00)

Unavailable

3

BOLT(3JP)

97017-06010-00

$3.76

4

GASKET, HD. COVERL

341-11193-11-00

Unavailable

5

BRACKET, CAMSHAFT 2

(341-11184-03-00)

Unavailable

6

BRACKET, CAMSHAFT 1

(341-11183-03-00)

Unavailable

7

BOLT STUD 276113610000

90116-08065-00

$9.49

7

BOLT STUD 276113610000

90116-08065-00

$9.49

8

BOLT, STUD

(90116-10145-00)

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

WASHER, PLAIN

92990-08200-00

Unavailable

11

PIN, DOWEL

99530-12016-00

$4.89

12

BOLT, STUD(1JK)

90116-06475-00

$8.49

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

16

COVER, CYLINDER.HEAD 2

341-11186-02-00

Unavailable

17

O-RING

93210-45191-00

Unavailable

18

BOLT, SOCKET

91317-06070-00

Unavailable

19

BOLT, SOCKET

91317-06075-00

Unavailable

20

BREATHER ASSEMBLY

(341-11160-01-00)

Unavailable

21

GASKET, BREATHER COVER

341-11169-10-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

BOLT,SOCKET

91317-06040-00

Unavailable

24

PIPE, BREATHER 1

(341-11166-01-00)

Unavailable

25

SPRING, COMPRESSION

(90504-10003-00)

Unavailable

26

BAND (MADE IN CANADA)

90460-15227-00

Unavailable

27

ABSORBER 1

(341-11161-00-00)

Unavailable
